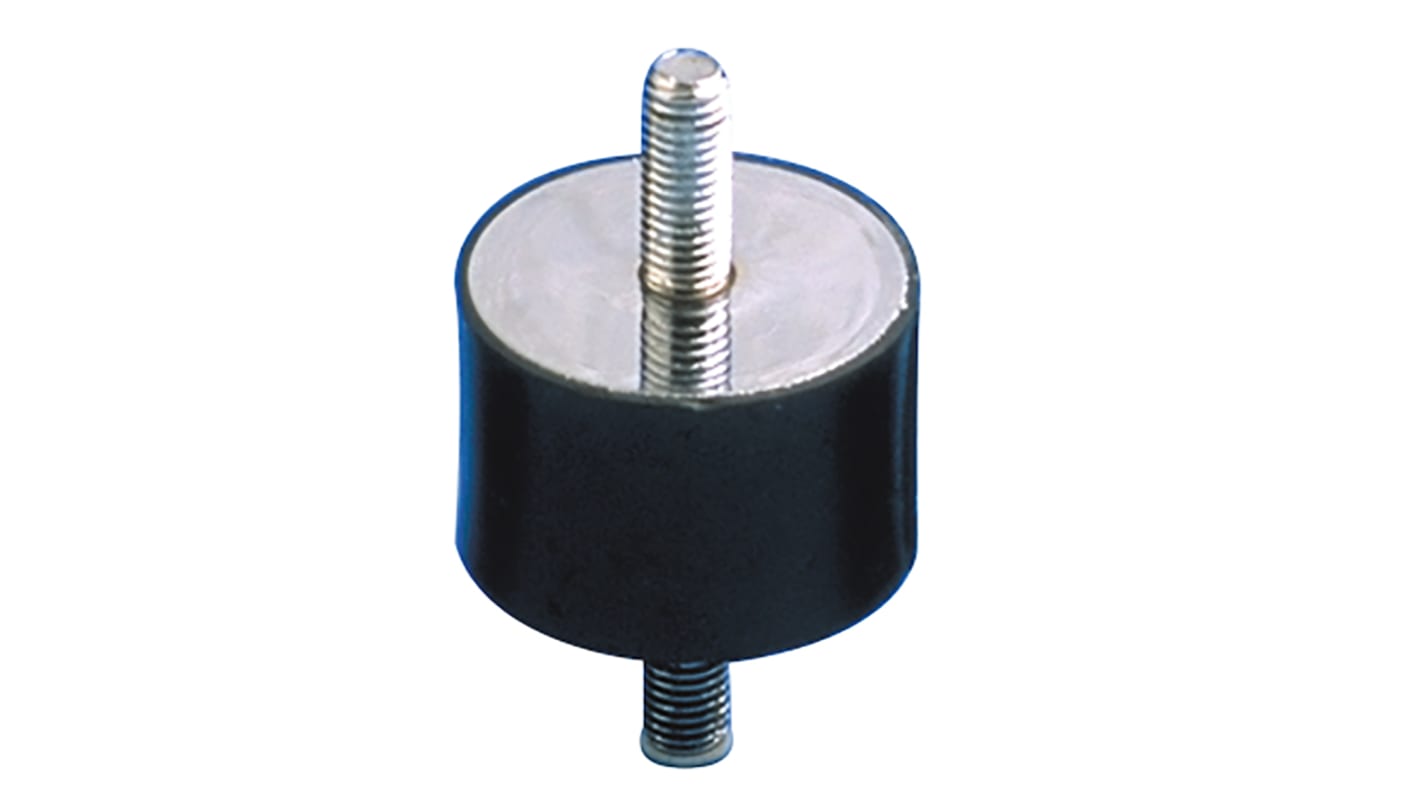

Paulstra Hutchinson M8 Anti Vibration Mount, Male to Male Bobbin with 90daN Compression Load
- RS Stock No.:
- 385-1508
- Mfr. Part No.:
- 521308
- Brand:
- Paulstra Hutchinson
Bulk discount available
Subtotal (1 unit)*
£6.04
(exc. VAT)
£7.25
(inc. VAT)
FREE delivery for orders over £50.00
Limited stock
- 86 left, ready to ship
- Plus 169 left, ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £6.04 |
| 5 - 9 | £5.82 |
| 10 - 24 | £5.64 |
| 25 + | £5.56 |
*price indicative
- RS Stock No.:
- 385-1508
- Mfr. Part No.:
- 521308
- Brand:
- Paulstra Hutchinson
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Paulstra Hutchinson | |
| Anti Vibration Mount Type | Male to Male Bobbin | |
| Thread Size | M8 | |
| Diameter | 30mm | |
| Overall Height | 15mm | |
| Material | Natural Rubber | |
| Metalwork | Steel | |
| Compression Load | 90daN | |
| Compression Deflection | 3mm | |
| Shearing Load | 11daN | |
| Maximum Operating Temperature | +70°C | |
Select all | ||
|---|---|---|
Brand Paulstra Hutchinson | ||
Anti Vibration Mount Type Male to Male Bobbin | ||
Thread Size M8 | ||
Diameter 30mm | ||
Overall Height 15mm | ||
Material Natural Rubber | ||
Metalwork Steel | ||
Compression Load 90daN | ||
Compression Deflection 3mm | ||
Shearing Load 11daN | ||
Maximum Operating Temperature +70°C | ||
- COO (Country of Origin):
- FR
Male-Male Mount
Made from a natural rubber these mounts are simple and economical to fix and would be very useful if used for vibration isolation depending on the radial forces. Suitable for compression (axial) and shear (radial).

Stud Mounts
A range of anti-vibration bobbin mounts available in five different configurations
Natural rubber bush allows high radial elasticity
Excellent vibration damping and noise suppression
Suitable for motors, fans, pumps, compressors, lab equipment, control racks etc.
Natural rubber bush allows high radial elasticity
Excellent vibration damping and noise suppression
Suitable for motors, fans, pumps, compressors, lab equipment, control racks etc.
