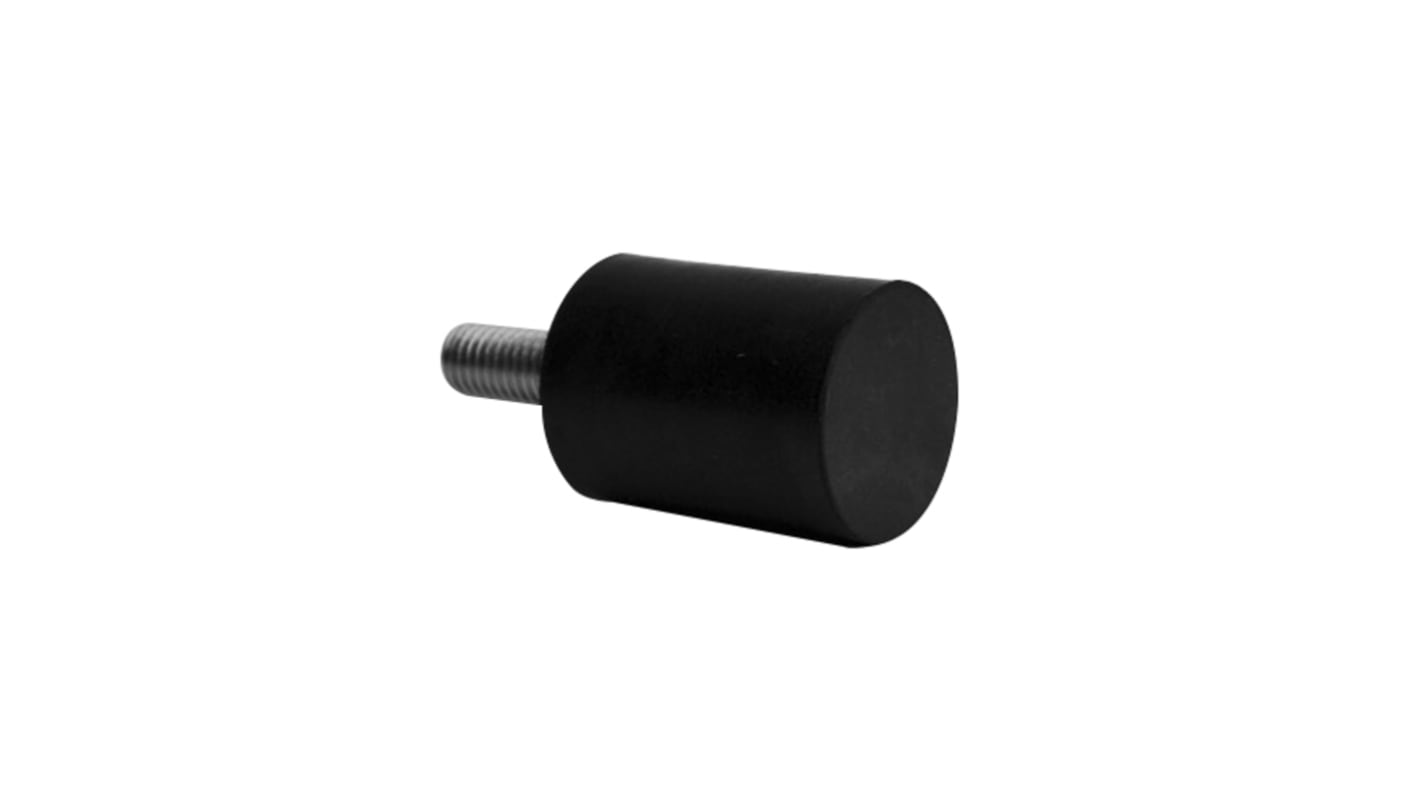

RS PRO M14 Anti Vibration Mount, Male Buffer Foot with 836kg Compression Load
- RS Stock No.:
- 171-2640
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£19.86
(exc. VAT)
£23.83
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 93 unit(s) shipping from 27 October 2025
- Plus 2 unit(s) shipping from 27 October 2025
- Plus 999,999,906 unit(s) shipping from 27 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £19.86 |
| 5 - 9 | £18.89 |
| 10 + | £18.45 |
*price indicative
- RS Stock No.:
- 171-2640
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Anti Vibration Mount Type | Male Buffer Foot | |
| Thread Size | M14 | |
| Diameter | 80mm | |
| Overall Height | 30mm | |
| Material | Natural Rubber | |
| Metalwork | Zinc Plated Steel | |
| Compression Load | 836kg | |
| Shore Hardness | 70 Shore A | |
| Compression Deflection | 3mm | |
| Series | AV Type D | |
| Shearing Load | 0 | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | +70°C | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Anti Vibration Mount Type Male Buffer Foot | ||
Thread Size M14 | ||
Diameter 80mm | ||
Overall Height 30mm | ||
Material Natural Rubber | ||
Metalwork Zinc Plated Steel | ||
Compression Load 836kg | ||
Shore Hardness 70 Shore A | ||
Compression Deflection 3mm | ||
Series AV Type D | ||
Shearing Load 0 | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +70°C | ||
- COO (Country of Origin):
- IN
Anti Vibration Mounts when properly chosen provide a cost effective solution to problems involving vibration, shock and noise control – the rubber buffer can be used in shear/compression or both. However, it must be noted that they do not provide a fail-safe solution. Available in a large range of sizes, thread lengths and material, the cylindrical vibration damper is a classic all round solution.
