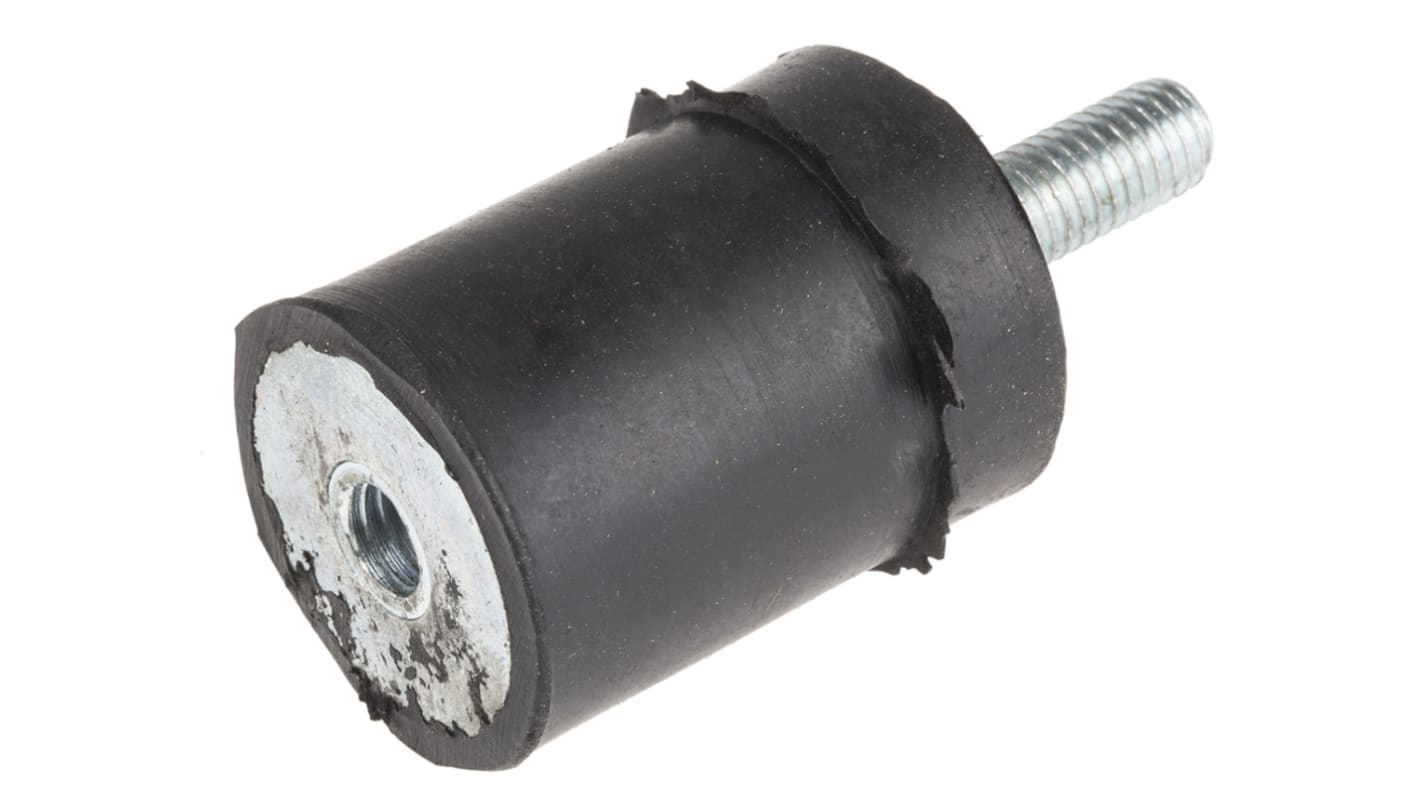

RS PRO M8 Anti Vibration Mount, Male to Female Bobbin with 25.63kg Compression Load

View all Anti Vibration Mounts
Bulk discount available

Subtotal (1 bag of 4 units)*

£19.50

(exc. VAT)

£23.40

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 61 unit(s) ready to ship
  • Plus 4 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s)
Per Bag
Per unit*
1 - 4£19.50£4.875
5 - 9£18.52£4.63
10 +£18.11£4.528

*price indicative

RS Stock No.:
171-2604
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Anti Vibration Mount Type

Male to Female Bobbin

Thread Size

M8

Diameter

30mm

Overall Height

40mm

Material

Natural Rubber

Metalwork

Zinc Plated Steel

Compression Load

25.63kg

Shore Hardness

45 Shore A

Maximum Operating Temperature

+70°C

Compression Deflection

4mm

Minimum Operating Temperature

-25°C

Shearing Load

9.5kg

Series

AV Type B

COO (Country of Origin):
IN
A cost effective solution to problems involving vibration, shock and noise control – the rubber buffer can be used in shear/compression or both. However, it must be noted that they do not provide a fail-safe solution. Available in a large range of sizes, thread lengths and material, the cylindrical vibration damper is a classic all round solution.
