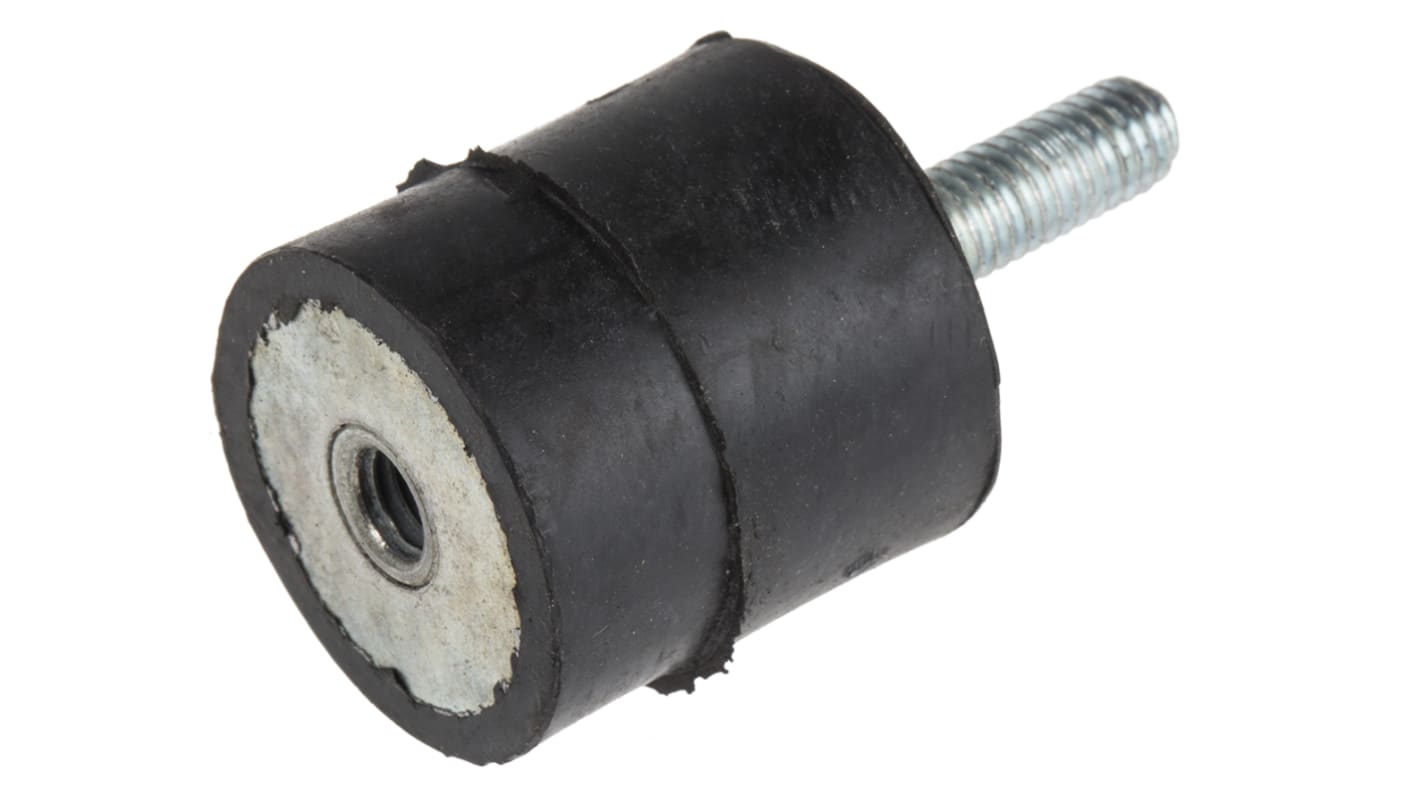

RS PRO M6 Anti Vibration Mount, Male to Female Bobbin with 37.62kg Compression Load
- RS Stock No.:
- 171-2597
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 bag of 8 units)*
£17.90
(exc. VAT)
£21.48
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 85 unit(s) shipping from 27 October 2025
- Plus 23 unit(s) shipping from 27 October 2025
- Plus 999,999,914 unit(s) shipping from 27 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s) | Per Bag | Per unit* |
|---|---|---|
| 1 - 4 | £17.90 | £2.238 |
| 5 - 9 | £16.99 | £2.124 |
| 10 + | £16.67 | £2.084 |
*price indicative
- RS Stock No.:
- 171-2597
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Anti Vibration Mount Type | Male to Female Bobbin | |
| Thread Size | M6 | |
| Diameter | 25mm | |
| Overall Height | 25mm | |
| Material | Natural Rubber | |
| Shore Hardness | 60 Shore A | |
| Compression Load | 37.62kg | |
| Metalwork | Zinc Plated Steel | |
| Shearing Load | 13.2kg | |
| Series | AV Type B | |
| Maximum Operating Temperature | +70°C | |
| Minimum Operating Temperature | -25°C | |
| Compression Deflection | 2.5mm | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Anti Vibration Mount Type Male to Female Bobbin | ||
Thread Size M6 | ||
Diameter 25mm | ||
Overall Height 25mm | ||
Material Natural Rubber | ||
Shore Hardness 60 Shore A | ||
Compression Load 37.62kg | ||
Metalwork Zinc Plated Steel | ||
Shearing Load 13.2kg | ||
Series AV Type B | ||
Maximum Operating Temperature +70°C | ||
Minimum Operating Temperature -25°C | ||
Compression Deflection 2.5mm | ||
- COO (Country of Origin):
- IN
A cost effective solution to problems involving vibration, shock and noise control – the rubber buffer can be used in shear/compression or both. However, it must be noted that they do not provide a fail-safe solution. Available in a large range of sizes, thread lengths and material, the cylindrical vibration damper is a classic all round solution.
