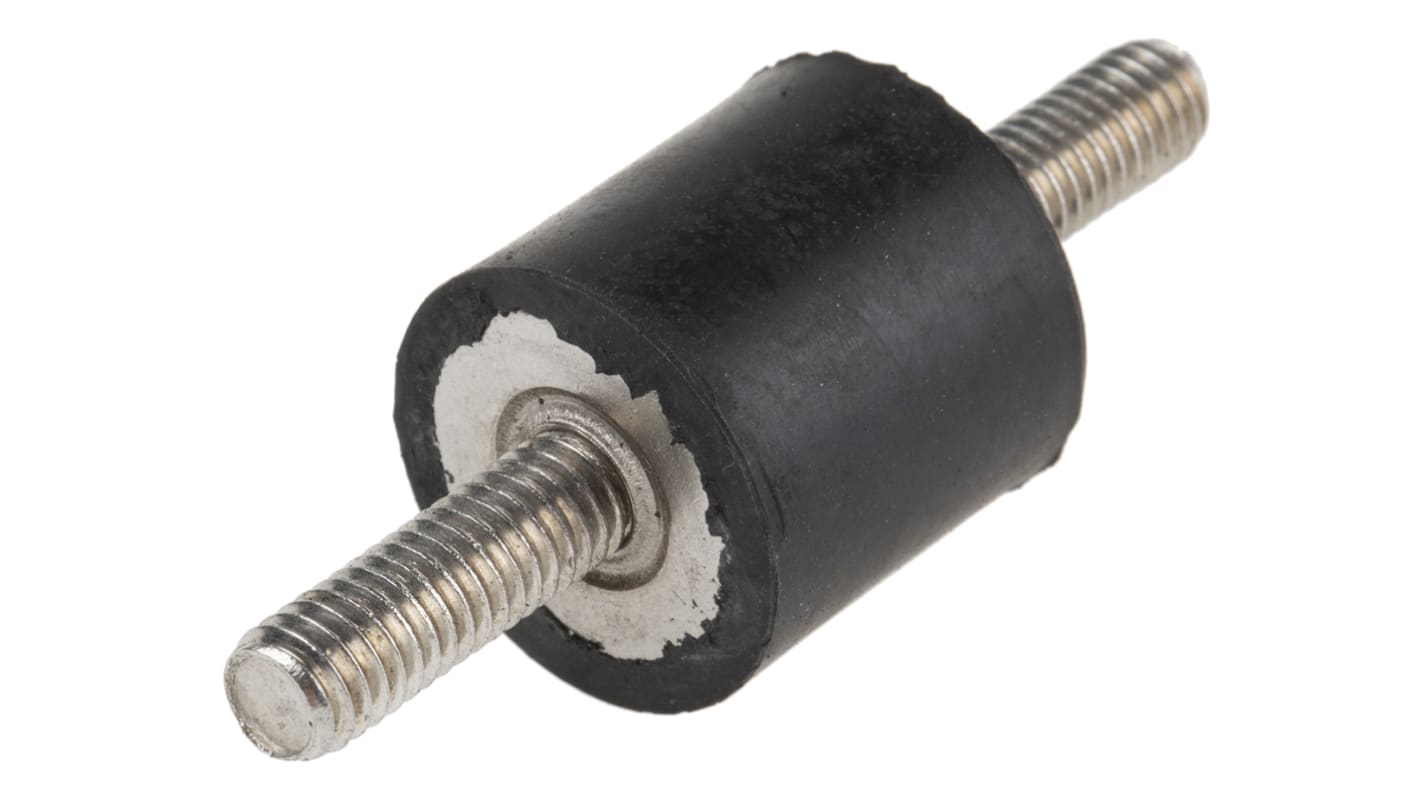

RS PRO M6 Anti Vibration Mount, Male to Male Bobbin with 22kg Compression Load
- RS Stock No.:
- 171-2570
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 bag of 4 units)*
£23.03
(exc. VAT)
£27.64
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 150 unit(s) shipping from 06 October 2025
- Plus 3 unit(s) shipping from 06 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s) | Per Bag | Per unit* |
---|---|---|
1 - 4 | £23.03 | £5.758 |
5 - 9 | £21.88 | £5.47 |
10 + | £21.42 | £5.355 |
*price indicative
- RS Stock No.:
- 171-2570
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Anti Vibration Mount Type | Male to Male Bobbin | |
Thread Size | M6 | |
Diameter | 20mm | |
Overall Height | 20mm | |
Material | Natural Rubber | |
Compression Load | 22kg | |
Shore Hardness | 60 Shore A | |
Metalwork | Stainless Steel | |
Maximum Operating Temperature | +70°C | |
Compression Deflection | 2mm | |
Shearing Load | 8.4kg | |
Series | AV Type A | |
Minimum Operating Temperature | -25°C | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Anti Vibration Mount Type Male to Male Bobbin | ||
Thread Size M6 | ||
Diameter 20mm | ||
Overall Height 20mm | ||
Material Natural Rubber | ||
Compression Load 22kg | ||
Shore Hardness 60 Shore A | ||
Metalwork Stainless Steel | ||
Maximum Operating Temperature +70°C | ||
Compression Deflection 2mm | ||
Shearing Load 8.4kg | ||
Series AV Type A | ||
Minimum Operating Temperature -25°C | ||
- COO (Country of Origin):
- IN
Anti Vibration Mounts when properly chosen provide a cost effective solution to problems involving vibration, shock and noise control – the rubber buffer can be used in shear/compression or both. However, it must be noted that they do not provide a fail-safe solution. Available in a large range of sizes, thread lengths and material, the cylindrical vibration damper is a classic all round solution.
