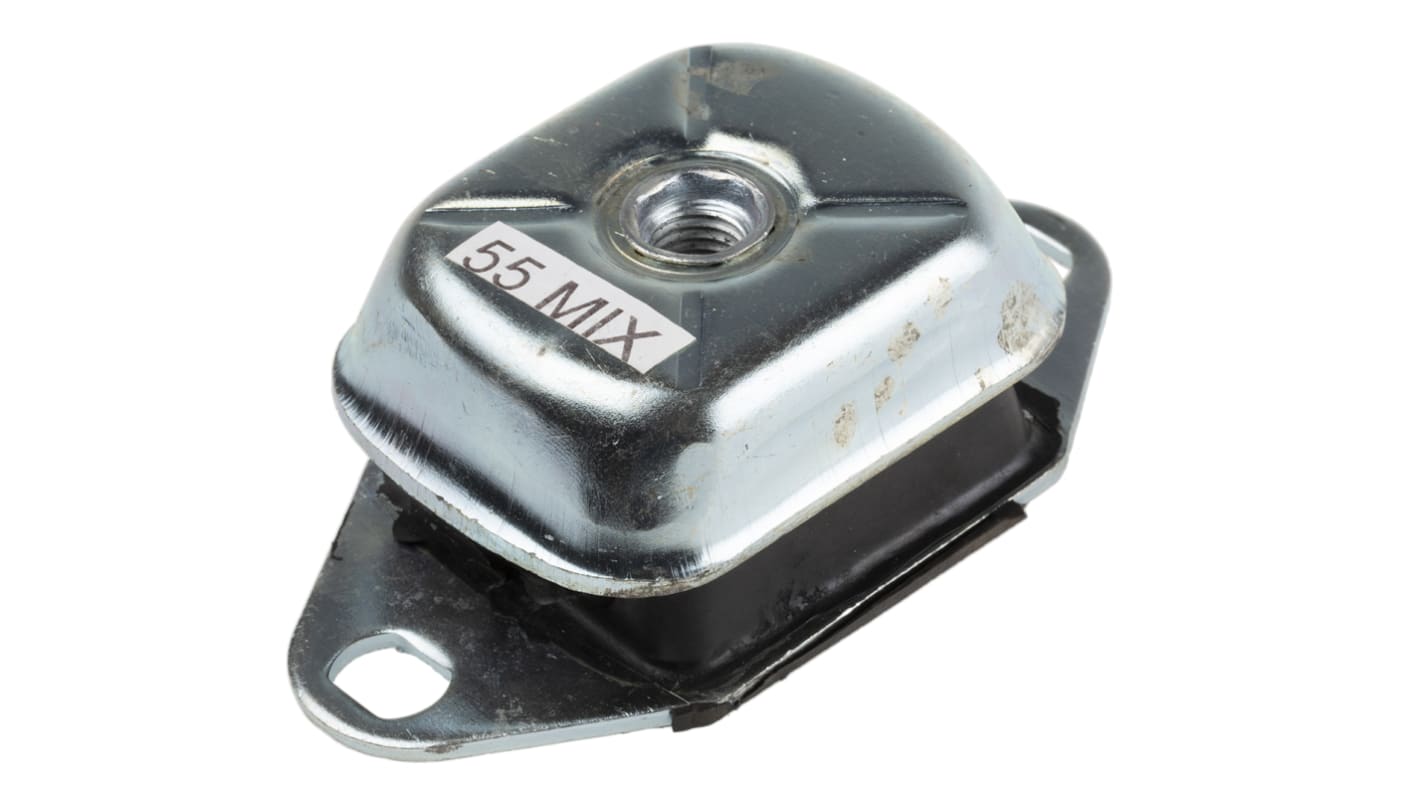

RS PRO M12 Anti Vibration Mount with 65kg Compression Load
- RS Stock No.:
- 162-3228
- Brand:
- RS PRO
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 162-3228
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Thread Size | M12 | |
| Overall Height | 40mm | |
| Material | Natural Rubber | |
| Compression Load | 65kg | |
| Series | KMR | |
| Compression Deflection | 4.8mm | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Thread Size M12 | ||
Overall Height 40mm | ||
Material Natural Rubber | ||
Compression Load 65kg | ||
Series KMR | ||
Compression Deflection 4.8mm | ||
- COO (Country of Origin):
- IN
Originally designed for mounting a marine boat engines taking propeller thrust and shock loads due usage at sea and now they are extensively used for mobile and static machinery to reduce vibration.
Metal top cover protects the rubber element from oil and diesel fuel contamination
Built-in shock load and rebound control feature
50% Low stiffness across the mount to vertical stiffness
Longitudinal stiffness is 2.5 times the vertical and suitable to take engine thrust for marine engines
Built-in shock load and rebound control feature
50% Low stiffness across the mount to vertical stiffness
Longitudinal stiffness is 2.5 times the vertical and suitable to take engine thrust for marine engines
