RS PRO M10 Anti Vibration Mount with 118kg Compression Load

View all Anti Vibration Mounts

Subtotal (1 unit)*

£41.62

(exc. VAT)

£49.94

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 128 unit(s) shipping from 27 October 2025
  • Plus 999,999,871 unit(s) shipping from 27 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£41.62

*price indicative

RS Stock No.:
162-3218
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Thread Size

M10

Diameter

120mm

Overall Height

35mm

Static Load Capacity

118kg

Material

Rubber

Metalwork

Zinc Plated Steel

Compression Load

118kg

Shore Hardness

60 Shore A

Compression Deflection

3.5mm

Maximum Operating Temperature

+100°C

Series

KPR

COO (Country of Origin):
IN

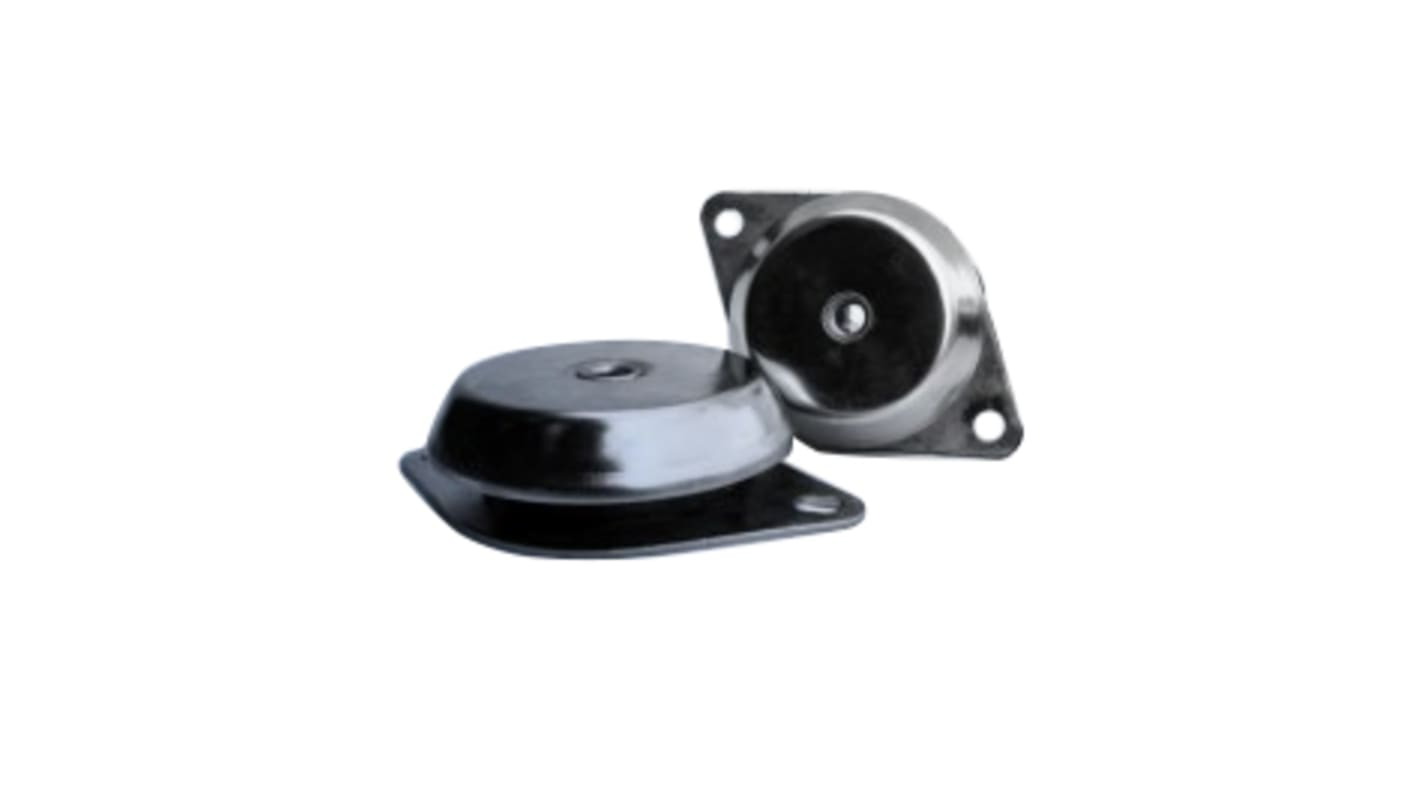

Captive flanged mount with a rubber element designed to take vertical load applied in both shear and compression to give maximum isolation from vibrating equipment.

Compact design with inbuilt bump and rebound control feature to control movement of equipment in transit
Dome shaped metal cap protects the elastomer against splashes of oil and fuel contamination
Compression design and metal cap effectively eliminate airborne noise when compared to spring mountings
Thick base flange metal to give added strength
Low height captive mounting capable of taking loads of 40kg to 5000kg
Static and mobile generators sets
Pumps, compressors, centrifugal fans and blowers
Railway equipment compartments
Marine engines (no thrust) and gearboxes
Electronic control panels
