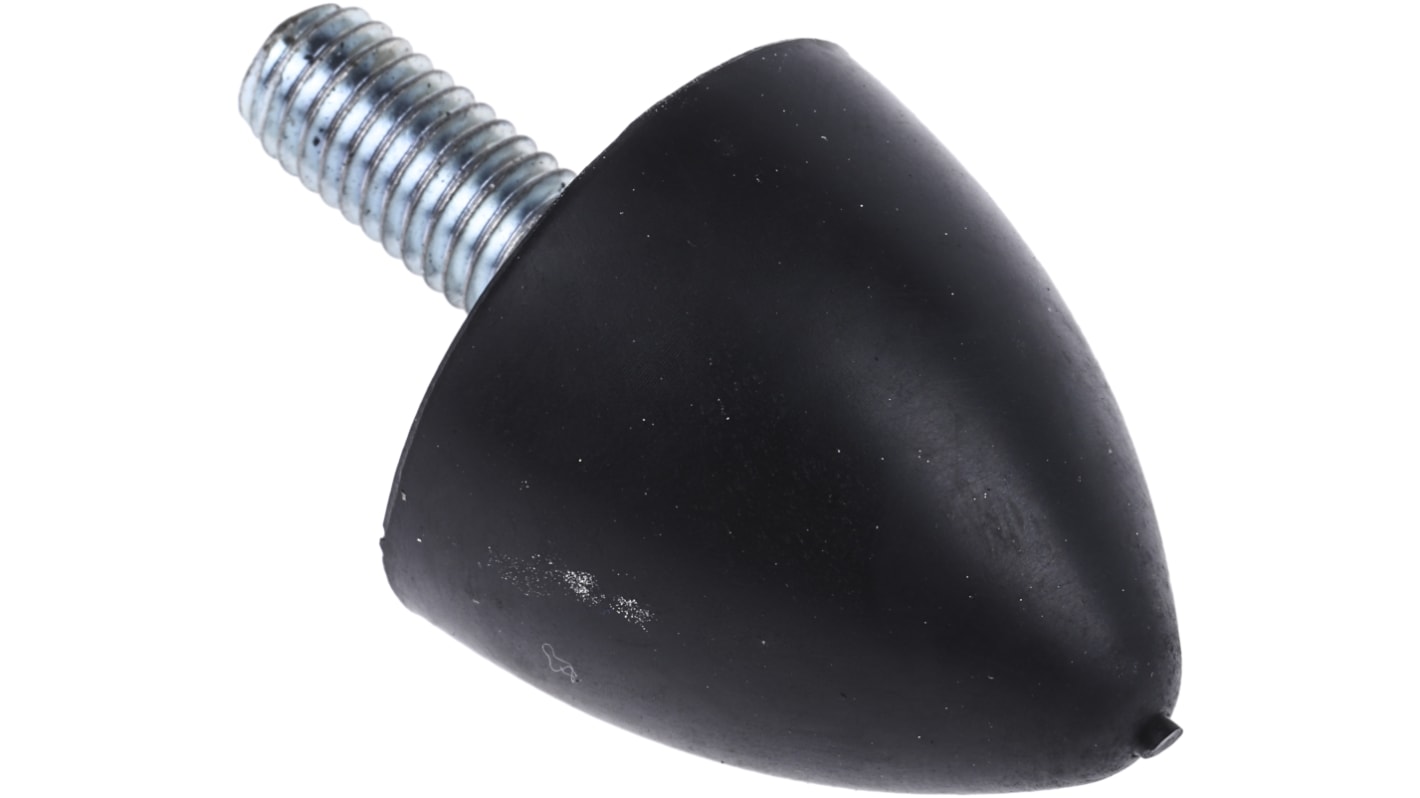

RS PRO M8 Anti Vibration Mount, Bump Stop

View all Anti Vibration Mounts
Bulk discount available

Subtotal (1 bag of 4 units)*

£17.83

(exc. VAT)

£21.40

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 262 unit(s) ready to ship
  • Plus 17 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s)
Per Bag
Per unit*
1 - 4£17.83£4.458
5 - 9£16.96£4.24
10 +£16.39£4.098

*price indicative

RS Stock No.:
126-5961
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Anti Vibration Mount Type

Bump Stop

Thread Size

M8

Diameter

30mm

Overall Height

30mm

Static Load Capacity

56kg

Material

Rubber

Shore Hardness

60 Shore A

Minimum Operating Temperature

-25°C

Maximum Operating Temperature

+70°C

Series

DP

COO (Country of Origin):
IN

RS PRO M8 Anti-Vibration Mount 30 mm Dia. Rubber


Need a buffer that can handle high-impact loads? Choose this RS PRO parabolic buffer. It progressively absorbs energy and is highly deformable, so it won't be damaged by heavy impacts.


The simple threaded rod design screws into a compatible female M8 thread, making installation easy. The rubber material also provides electrical insulation, shielding your equipment from static electricity.


This bump stop is commonly found in automotive and industrial applications. You can use it to isolate panel doors, compressors and pumps or to soften the closing of car bonnets and doors.

Features and Benefits



  • Conical anti-vibration mounting type

  • Base plate diameter of 30 mm

  • Diameter of 30 mm

  • M8 thread size

  • Overall height of 30 mm

  • Maximum static load capacity of 56 kg

  • Rubber damper material

  • Minimum operating temperature of -25°C

  • Maximum operating temperature of +70°C

  • Threaded stud mounting type

  • Shore hardness of 60 Shore A

  • Parabolic buffer type
