RS PRO M6 Anti Vibration Mount, Bump Stop
- RS Stock No.:
- 126-5958
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 bag of 4 units)*
£11.36
(exc. VAT)
£13.63
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 94 unit(s) ready to ship
- Plus 77 unit(s) ready to ship from another location
- Plus 109 unit(s) shipping from 27 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s) | Per Bag | Per unit* |
|---|---|---|
| 1 - 4 | £11.36 | £2.84 |
| 5 - 9 | £10.77 | £2.693 |
| 10 + | £10.46 | £2.615 |
*price indicative
- RS Stock No.:
- 126-5958
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Anti Vibration Mount Type | Bump Stop | |
| Thread Size | M6 | |
| Diameter | 20mm | |
| Overall Height | 24mm | |
| Static Load Capacity | 45kg | |
| Material | Rubber | |
| Shore Hardness | 60 Shore A | |
| Maximum Operating Temperature | +70°C | |
| Minimum Operating Temperature | -25°C | |
| Series | DP | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Anti Vibration Mount Type Bump Stop | ||
Thread Size M6 | ||
Diameter 20mm | ||
Overall Height 24mm | ||
Static Load Capacity 45kg | ||
Material Rubber | ||
Shore Hardness 60 Shore A | ||
Maximum Operating Temperature +70°C | ||
Minimum Operating Temperature -25°C | ||
Series DP | ||
- COO (Country of Origin):
- IN

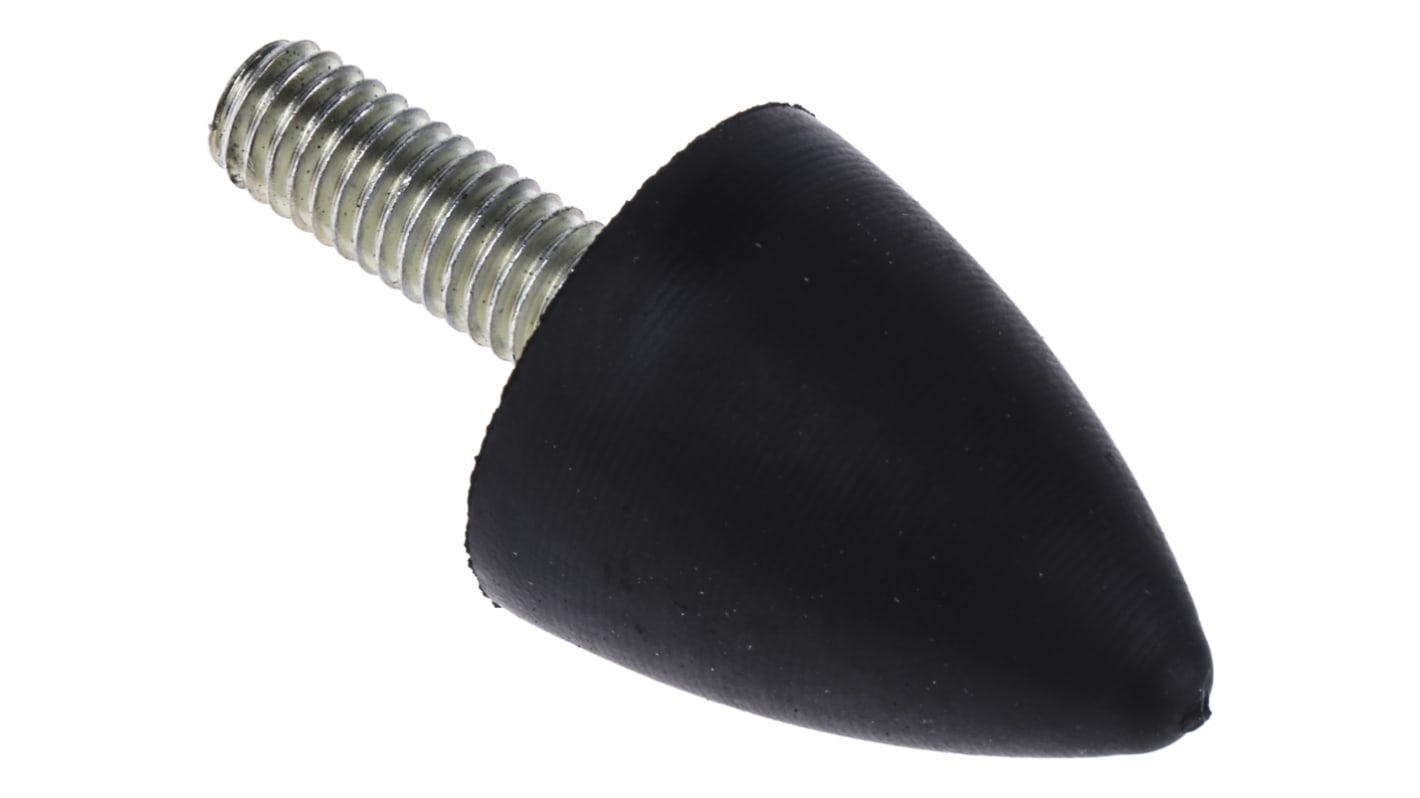

RS PRO M6 Damper
This damper from RS PRO provides a mild buffer to absorb impact with progressive deceleration. It can handle large impact loads without being damaged as it's highly deformable.
Thanks to its small size, it can easily fit into compact spaces. Installation is simple as the threaded rod design lets you screw it into compatible female M6 threads. The rubber material also offers electrical insulation, so it protects your equipment from harmful static electricity.
This product is suitable for use in automotive and industrial settings. Use it to soften the closing of car bonnets and doors or to isolate compressors, panel doors and pumps.
Thanks to its small size, it can easily fit into compact spaces. Installation is simple as the threaded rod design lets you screw it into compatible female M6 threads. The rubber material also offers electrical insulation, so it protects your equipment from harmful static electricity.
This product is suitable for use in automotive and industrial settings. Use it to soften the closing of car bonnets and doors or to isolate compressors, panel doors and pumps.
Features and Benefits
- Conical stop anti-vibration mounting type
- Base plate diameter of 20 mm
- Diameter of 20 mm
- Overall height of 24 mm
- Maximum static load of 45 kg
- Rubber damper material
- Minimum operating temperature of -25°C
- Maximum operating temperature of +70°C
- Threaded stud mounting type
- Shore hardness of 60 Shore A
- M6 thread size
- Parabolic buffer type
