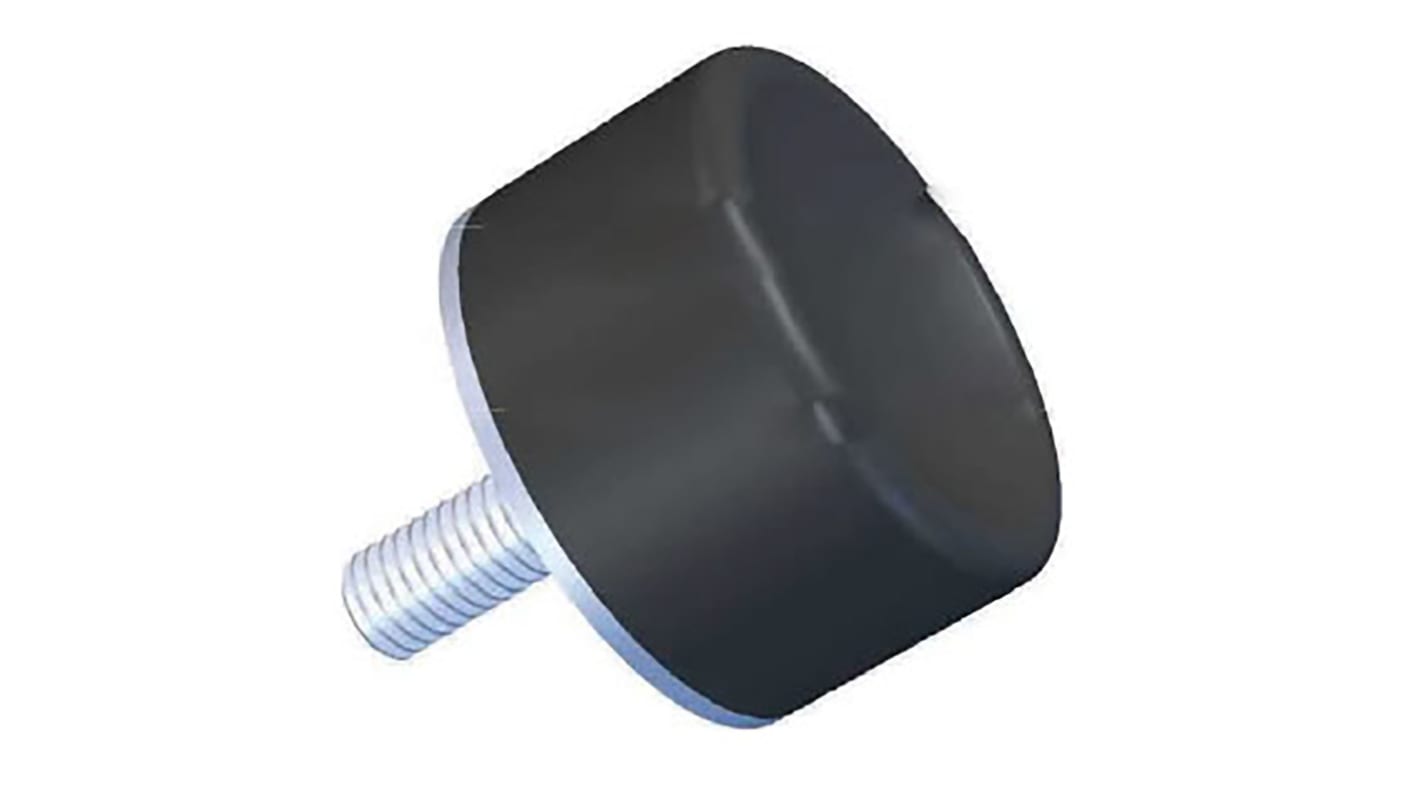

RS PRO M8 Anti Vibration Mount, Male Buffer Foot with 80.26kg Compression Load
- RS Stock No.:
- 126-4971
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 bag of 4 units)*
£16.43
(exc. VAT)
£19.72
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 259 unit(s) ready to ship
- Plus 39 unit(s) ready to ship from another location
- Plus 100 unit(s) shipping from 23 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s) | Per Bag | Per unit* |
|---|---|---|
| 1 - 4 | £16.43 | £4.108 |
| 5 - 9 | £15.61 | £3.903 |
| 10 + | £15.13 | £3.783 |
*price indicative
- RS Stock No.:
- 126-4971
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Anti Vibration Mount Type | Male Buffer Foot | |
| Thread Size | M8 | |
| Diameter | 40mm | |
| Overall Height | 20mm | |
| Material | Natural Rubber | |
| Compression Load | 80.26kg | |
| Metalwork | Zinc Plated Steel | |
| Shore Hardness | 50 Shore A | |
| Series | AV Type D | |
| Maximum Operating Temperature | +70°C | |
| Compression Deflection | 2mm | |
| Minimum Operating Temperature | -25°C | |
| Shearing Load | 0 | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Anti Vibration Mount Type Male Buffer Foot | ||
Thread Size M8 | ||
Diameter 40mm | ||
Overall Height 20mm | ||
Material Natural Rubber | ||
Compression Load 80.26kg | ||
Metalwork Zinc Plated Steel | ||
Shore Hardness 50 Shore A | ||
Series AV Type D | ||
Maximum Operating Temperature +70°C | ||
Compression Deflection 2mm | ||
Minimum Operating Temperature -25°C | ||
Shearing Load 0 | ||
- COO (Country of Origin):
- IN
RS PRO Cylindrical Male-Foot Anti-Vibration Mounts
RS PRO cylindrical male-to-foot anti-vibration mounts are an efficient and economical solution for reducing vibration and noise in various industrial and commercial applications. Made with high-quality natural rubber, these mounts provide excellent vibration damping in both shear and compression, ensuring enhanced stability and equipment protection.
Why Would You Choose These Anti-Vibration Mounts?
With their reliable construction and effective vibration-damping properties, RS PRO cylindrical anti-vibration mounts provide a cost-effective and durable solution for protecting equipment and enhancing performance.
Features and Benefits
- Anti-vibration buffer foot
- Male
- EPDM rubber
- Zinc-plated steel or Stainless-Steel thread options
Applications
- Large static generator engines
- Compressors
- Motor
- Electronic control panels
- Engine Mounts
RS Pro Anti-Vibration Mounts
