RS PRO M12 Anti Vibration Mount, Female Buffer Foot with 757kg Compression Load
- RS Stock No.:
- 126-4920
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£42.53
(exc. VAT)
£51.04
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 48 unit(s) shipping from 27 October 2025
- Plus 3 unit(s) shipping from 27 October 2025
- Plus 26 unit(s) shipping from 30 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £42.53 |
| 5 - 9 | £40.40 |
| 10 + | £39.13 |
*price indicative
- RS Stock No.:
- 126-4920
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Anti Vibration Mount Type | Female Buffer Foot | |
| Thread Size | M12 | |
| Diameter | 80mm | |
| Overall Height | 30mm | |
| Material | Natural Rubber | |
| Metalwork | Zinc Plated Steel | |
| Shore Hardness | 60 Shore A | |
| Compression Load | 757kg | |
| Compression Deflection | 3mm | |
| Series | AV Type C | |
| Minimum Operating Temperature | -25°C | |
| Shearing Load | 216kg | |
| Maximum Operating Temperature | +70°C | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Anti Vibration Mount Type Female Buffer Foot | ||
Thread Size M12 | ||
Diameter 80mm | ||
Overall Height 30mm | ||
Material Natural Rubber | ||
Metalwork Zinc Plated Steel | ||
Shore Hardness 60 Shore A | ||
Compression Load 757kg | ||
Compression Deflection 3mm | ||
Series AV Type C | ||
Minimum Operating Temperature -25°C | ||
Shearing Load 216kg | ||
Maximum Operating Temperature +70°C | ||
- COO (Country of Origin):
- IN

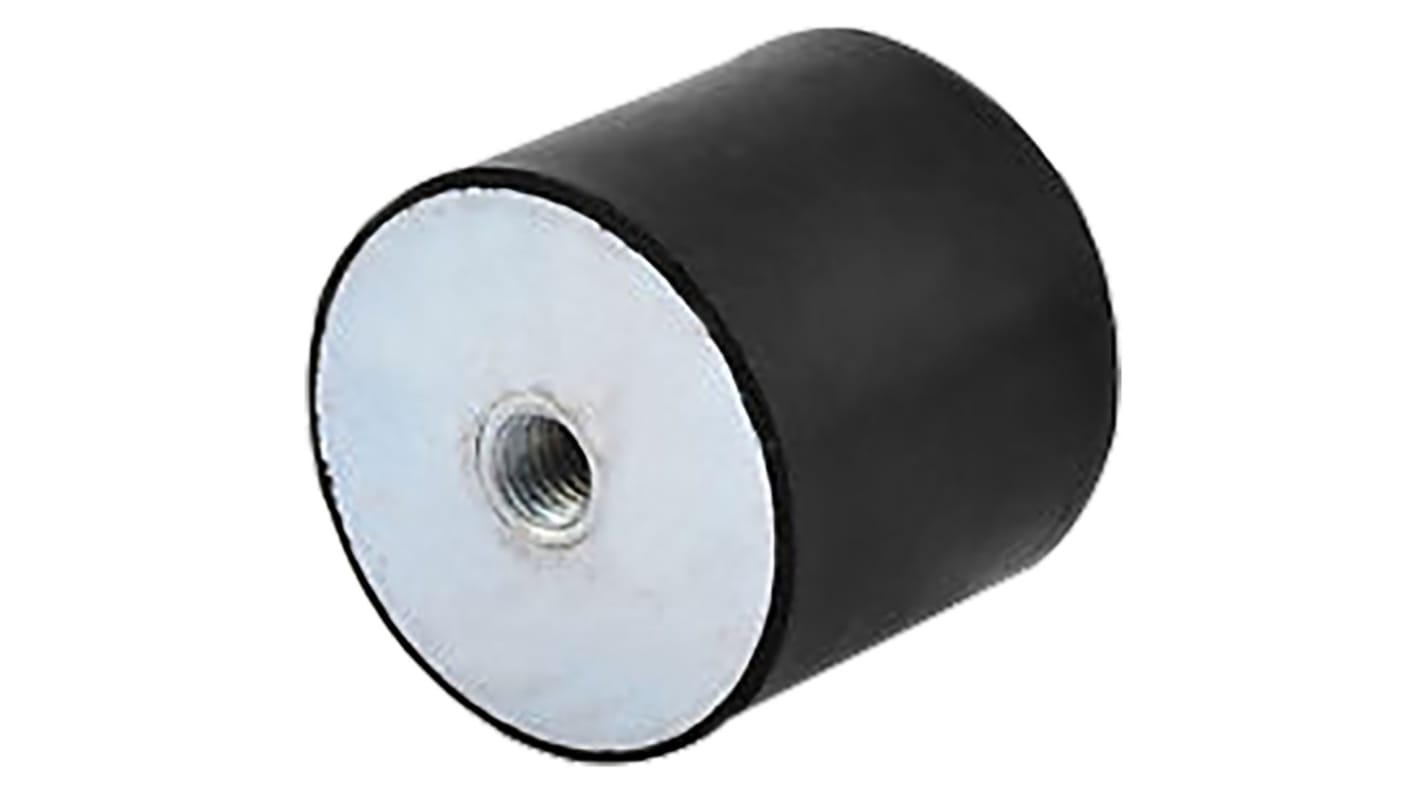

RS PRO M12 Zinc-Plated Steel Anti-Vibration Mount 757 Compression Load 80 mm Dia. Natural Rubber
This RS PRO anti-vibration mount offers sturdy support to protect your appliances from vibrations. It's easy to attach your equipment thanks to the two female threads. Simply use a male threaded M12 screw to firmly secure your device in place on the mount.
The mount's zinc-plated steel and rubber material means it's corrosion-resistant and long-lasting, so it can withstand heavy-duty applications. The rubber also provides complete electrical insulation, so it will protect your equipment from the buildup of static charge. The unit is compact enough for use in confined spaces yet robust enough to support compressive loads of up to 757 kg, so it's a good choice for extremely heavy equipment.
This product is often found in automotive and industrial environments. You can use it to stabilise control panels, motors or compressors.
The mount's zinc-plated steel and rubber material means it's corrosion-resistant and long-lasting, so it can withstand heavy-duty applications. The rubber also provides complete electrical insulation, so it will protect your equipment from the buildup of static charge. The unit is compact enough for use in confined spaces yet robust enough to support compressive loads of up to 757 kg, so it's a good choice for extremely heavy equipment.
This product is often found in automotive and industrial environments. You can use it to stabilise control panels, motors or compressors.
Features and Benefits
- Female buffer foot
- Female to female type
- Compression deflection of 3 mm
- Compression load of 757 kg
- Diameter of 80 mm
- Overall height of 30 mm
- Natural rubber material
- Maximum operating temperature of +70°C
- Minimum operating temperature of -25°C
- Zinc-plated steel metalwork
- Shore hardness of 60 Shore A
- Shearing load of 216 kg
- M12 thread size
