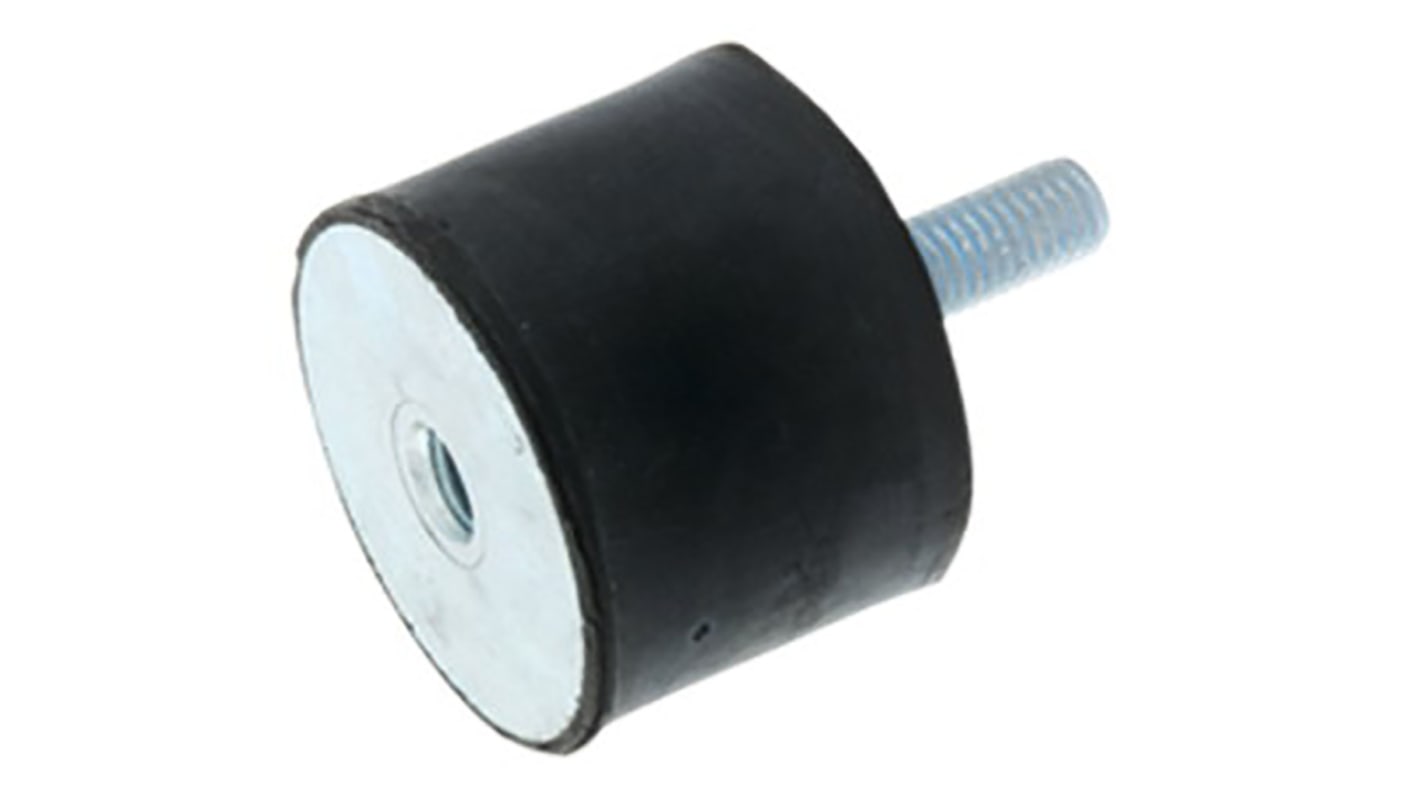

RS PRO M10 Anti Vibration Mount, Male to Female Bobbin with 170.28kg Compression Load
- RS Stock No.:
- 126-4324
- Brand:
- RS PRO
153 In stock - FREE next working day delivery available
Price Each
£10.22
(exc. VAT)
£12.26
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £10.22 |
| 5 - 9 | £9.72 |
| 10 + | £9.41 |
- RS Stock No.:
- 126-4324
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- IN
Product Details
RS Pro Cylindrical Male - Female Anti-Vibration Mounts
RS Pro cylindrical male to female anti-vibration mounts made from a natural rubber designed to be simple and economical to fix. The anti-vibration mounts achieve high vibration damping in both shear and compression.
Suitable Applications:
Large static generator engines
Compressors
Motors
Electronic control panels
Engine Mounts
Compressors
Motors
Electronic control panels
Engine Mounts
RS Pro Anti-Vibration Mounts
Specifications
Attribute | Value |
|---|---|
| Anti Vibration Mount Type | Male to Female Bobbin |
| Thread Size | M10 |
| Diameter | 50mm |
| Overall Height | 35mm |
| Material | Natural Rubber |
| Shore Hardness | 60 Shore A |
| Metalwork | Zinc Plated Steel |
| Compression Load | 170.28kg |
| Maximum Operating Temperature | +70°C |
| Shearing Load | 53kg |
| Compression Deflection | 3.5mm |
| Series | AV Type B |
| Minimum Operating Temperature | -25°C |
