- RS Stock No.:
- 126-4302
- Brand:
- RS PRO
224 In stock - FREE next working day delivery available
13 available from Europe for delivery within 2 working day(s).
Price 1 Bag of 8
£16.67
(exc. VAT)
£20.00
(inc. VAT)
Bag(s) | Per Bag | Per unit* |
---|---|---|
1 - 4 | £16.67 | £2.084 |
5 - 9 | £15.81 | £1.976 |
10 + | £15.32 | £1.915 |
*price indicative
- RS Stock No.:
- 126-4302
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- IN
Product Details

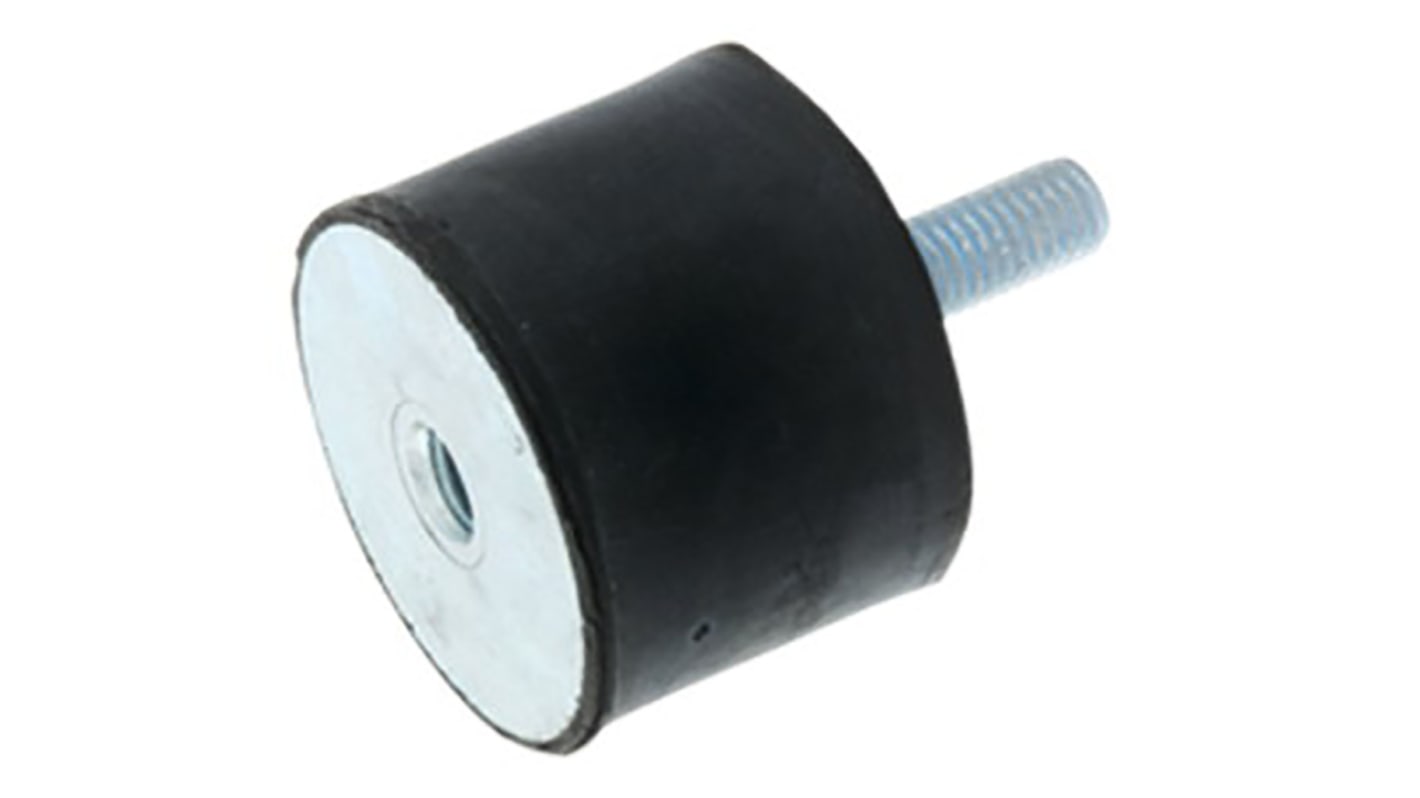

RS Pro Cylindrical Male - Female Anti-Vibration Mounts
RS Pro cylindrical male to female anti-vibration mounts made from a natural rubber designed to be simple and economical to fix. The anti-vibration mounts achieve high vibration damping in both shear and compression.
Suitable Applications:
Large static generator engines
Compressors
Motors
Electronic control panels
Engine Mounts
Compressors
Motors
Electronic control panels
Engine Mounts
RS Pro Anti-Vibration Mounts
Specifications
Attribute | Value |
---|---|
Anti Vibration Mount Type | Male to Female Bobbin |
Thread Size | M6 |
Diameter | 25mm |
Overall Height | 15mm |
Material | Natural Rubber |
Metalwork | Zinc Plated Steel |
Compression Load | 47.3kg |
Shore Hardness | 60 Shore A |
Compression Deflection | 1.5mm |
Series | AV Type B |
Shearing Load | 13.2kg |
Minimum Operating Temperature | -25°C |
Maximum Operating Temperature | +70°C |
