- RS Stock No.:
- 126-4270
- Brand:
- RS PRO
35 In stock - FREE next working day delivery available
15 available from Europe for delivery within 2 working day(s).
Price Each
£17.60
(exc. VAT)
£21.12
(inc. VAT)
Units | Per unit |
---|---|
1 - 4 | £17.60 |
5 - 9 | £16.72 |
10 + | £16.19 |
- RS Stock No.:
- 126-4270
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- IN
Product Details

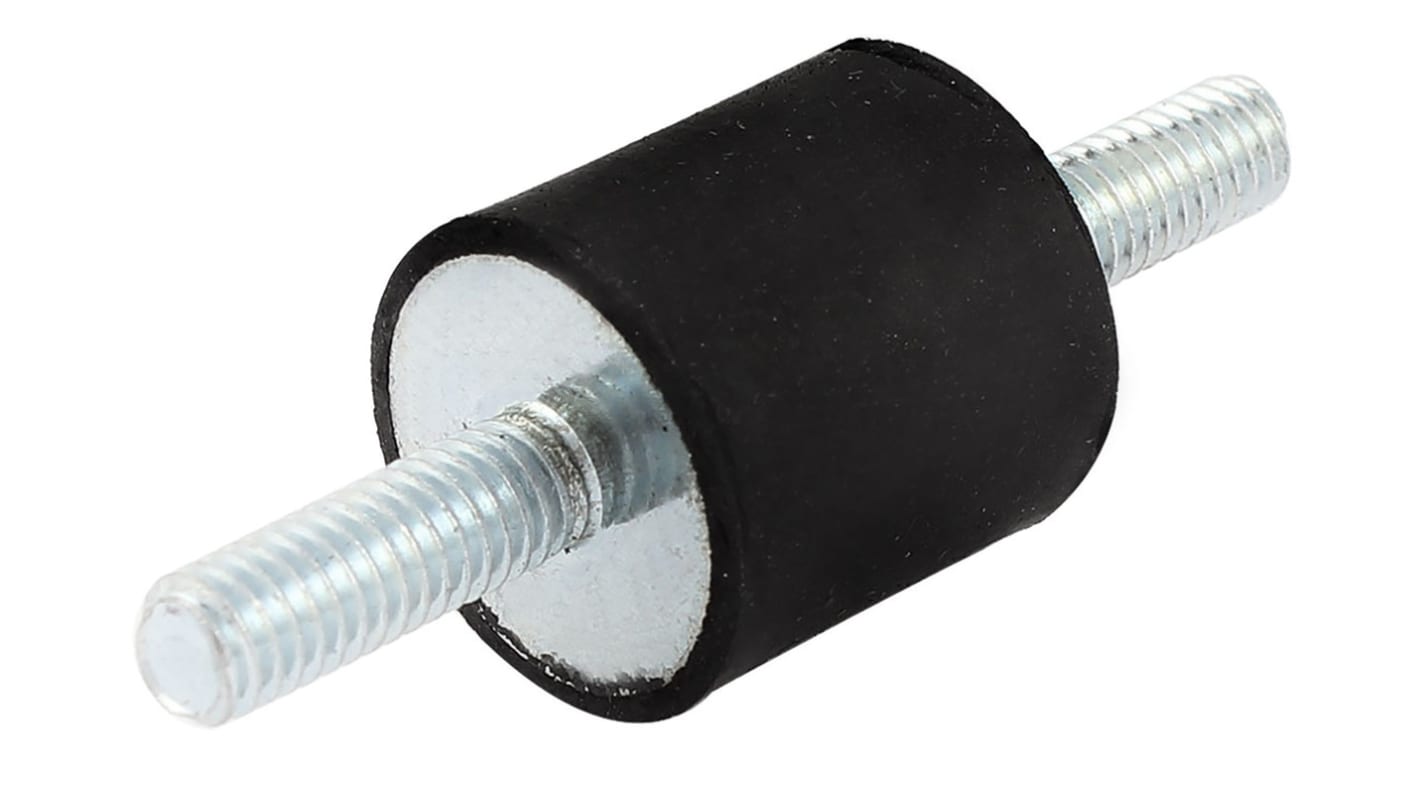

RS Pro Cylindrical Male - Male Anti-Vibration Mounts
RS Pro cylindrical male to male anti-vibration mounts made from a natural rubber designed to be simple and economical to fix. The anti-vibration mounts achieve high vibration damping in both shear and compression.
Suitable Applications:
Large static generator engines
Compressors
Motors
Electronic control panels
Engine Mounts
Compressors
Motors
Electronic control panels
Engine Mounts
RS Pro Anti-Vibration Mounts
Specifications
Attribute | Value |
---|---|
Anti Vibration Mount Type | Male to Male Bobbin |
Thread Size | M12 |
Diameter | 70mm |
Overall Height | 35mm |
Material | Natural Rubber |
Metalwork | Zinc Plated Steel |
Compression Load | 455.04kg |
Shore Hardness | 65 Shore A |
Maximum Operating Temperature | +70°C |
Minimum Operating Temperature | -25°C |
Shearing Load | 96kg |
Compression Deflection | 3.5mm |
Series | AV Type A |
