- RS Stock No.:
- 126-3936
- Brand:
- RS PRO
42 In stock - FREE next working day delivery available
10 available from Europe for delivery within 1 working day(s).
Added
Price 1 Bag of 8
£16.58
(exc. VAT)
£19.90
(inc. VAT)
Bag(s) | Per Bag | Per unit* |
1 - 4 | £16.58 | £2.072 |
5 - 9 | £15.71 | £1.964 |
10 + | £15.25 | £1.906 |
*price indicative |
- RS Stock No.:
- 126-3936
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- IN
Product Details

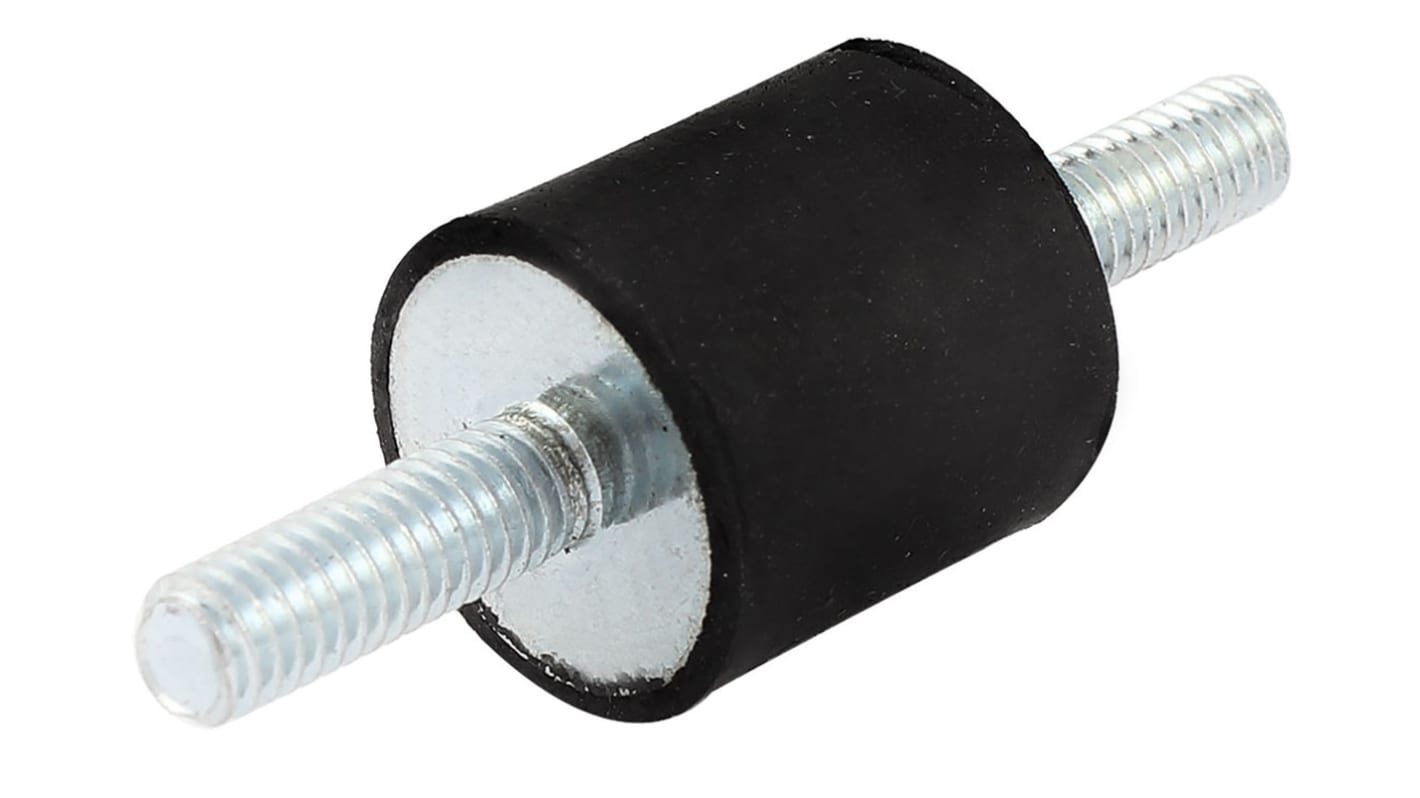

RS Pro Cylindrical Male - Male Anti-Vibration Mounts
RS Pro cylindrical male to male anti-vibration mounts made from a natural rubber designed to be simple and economical to fix. The anti-vibration mounts achieve high vibration damping in both shear and compression.
Suitable Applications:
Large static generator engines
Compressors
Motors
Electronic control panels
Engine Mounts
Compressors
Motors
Electronic control panels
Engine Mounts
RS Pro Anti-Vibration Mounts
Specifications
Attribute | Value |
---|---|
Anti Vibration Mount Type | Male to Male Bobbin |
Thread Size | M3 |
Diameter | 8mm |
Overall Height | 8mm |
Material | Natural Rubber |
Shore Hardness | 50 Shore A |
Metalwork | Zinc Plated Steel |
Compression Load | 3.05kg |
Series | AV Type A |
Minimum Operating Temperature | -25°C |
Shearing Load | 1.02kg |
Compression Deflection | 0.8mm |
Maximum Operating Temperature | +70°C |
- RS Stock No.:
- 126-3936
- Brand:
- RS PRO
