RS PRO Round M16 Anti Vibration Mount with 450 Compression Load
- RS Stock No.:
- 126-3876
- Brand:
- RS PRO
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 126-3876
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Thread Size | M16 | |
| Diameter | 172mm | |
| Foot Height | 38mm | |
| Overall Height | 38mm | |
| Static Load Capacity | 450 | |
| Material | Natural Rubber | |
| Metalwork | Stainless Steel | |
| Compression Load | 450 | |
| Shore Hardness | 60 Shore A | |
| Foot Shape | Round | |
| Maximum Operating Temperature | +100°C | |
| Compression Deflection | 3.5mm | |
| Series | KPR | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Thread Size M16 | ||
Diameter 172mm | ||
Foot Height 38mm | ||
Overall Height 38mm | ||
Static Load Capacity 450 | ||
Material Natural Rubber | ||
Metalwork Stainless Steel | ||
Compression Load 450 | ||
Shore Hardness 60 Shore A | ||
Foot Shape Round | ||
Maximum Operating Temperature +100°C | ||
Compression Deflection 3.5mm | ||
Series KPR | ||
- COO (Country of Origin):
- IN

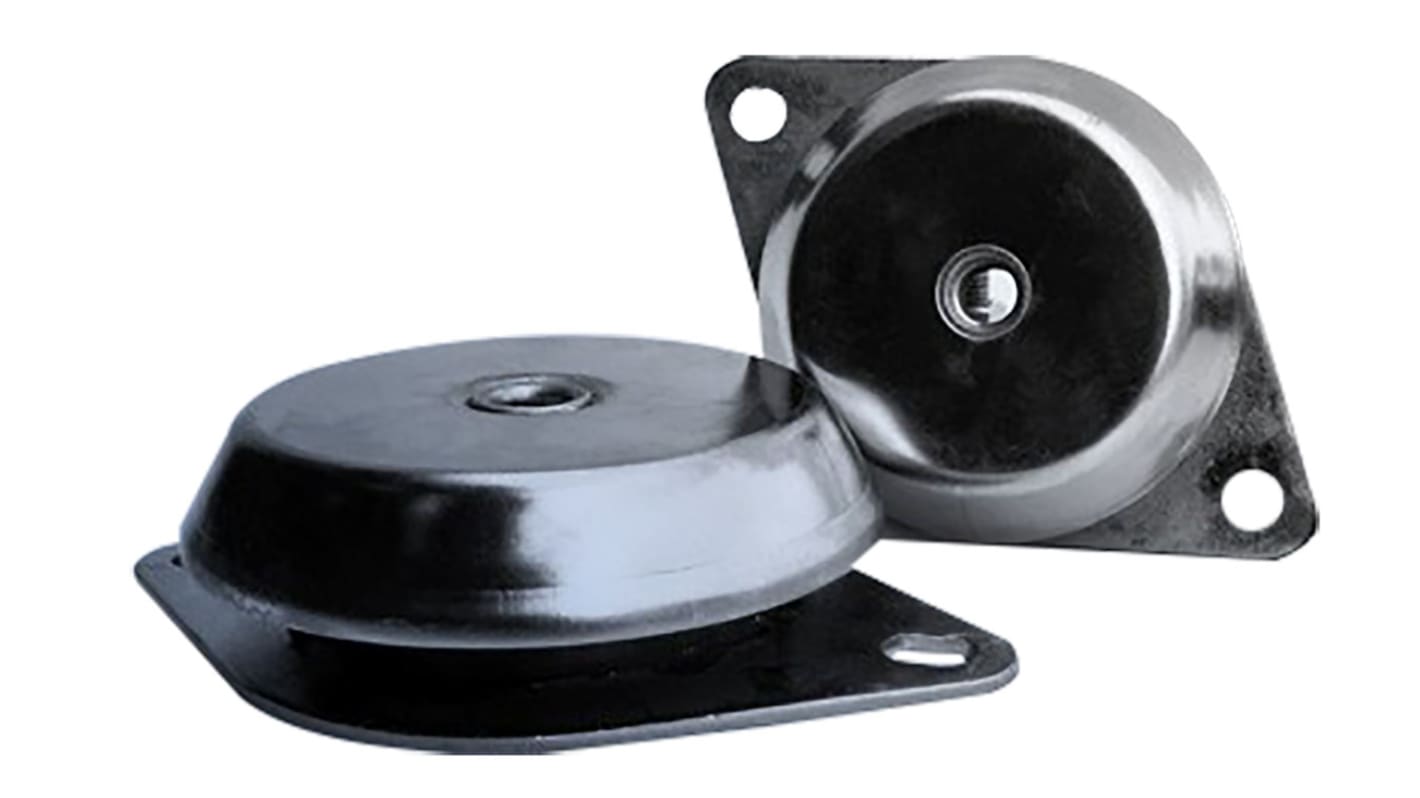

RS PRO Anti-Vibration Pedestal Mount
RS PRO anti-vibration pedestal mounts designed to take vertical load applied in both shear and compression to give maximum isolation from vibrating machinery. Suitable for use in a wide variety of applications including pumps, compressors, centrifugal fans and blowers.
