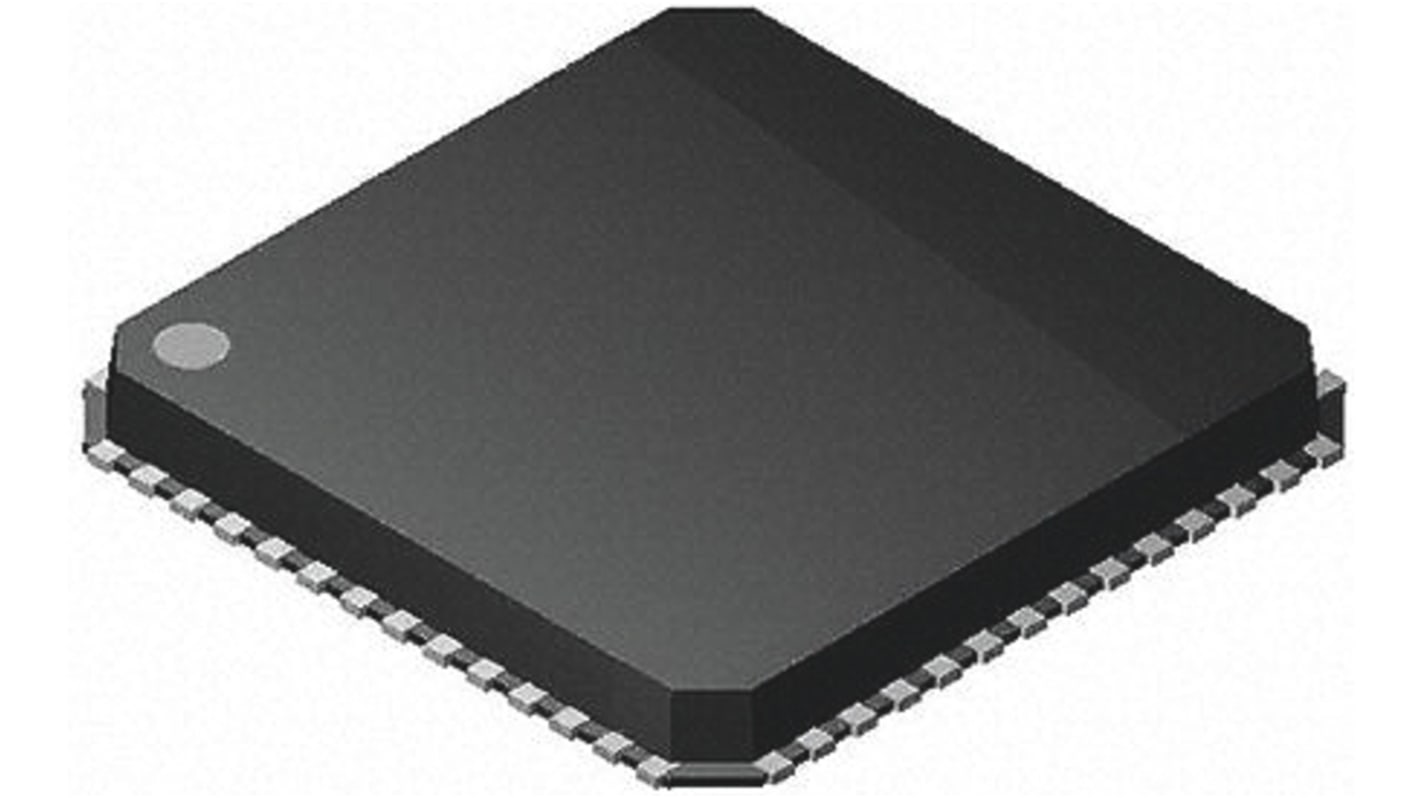

Analog Devices AD6641BCPZ-500, 12-bit Serial ADC Differential Input, 56-Pin LFCSP VQ
- RS Stock No.:
- 806-5529
- Mfr. Part No.:
- AD6641BCPZ-500
- Brand:
- Analog Devices
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 806-5529
- Mfr. Part No.:
- AD6641BCPZ-500
- Brand:
- Analog Devices
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Analog Devices | |
| Number of ADCs | 1 | |
| Resolution | 12-bit | |
| Sampling Rate | 500Msps | |
| Input Signal Type | Differential | |
| Input Type | Voltage | |
| Mounting Type | Surface Mount | |
| Package Type | LFCSP VQ | |
| Pin Count | 56 | |
| Integral Nonlinearity Error | ±0.6LSB | |
| Digital Interface Type | Serial (LVDS) | |
| Power Supply Type | Single | |
| Typical Single Supply Voltage | 1.9 V | |
| Maximum Operating Temperature | +85 °C | |
| Dimensions | 8 x 8 x 0.8mm | |
| Minimum Operating Temperature | -40 °C | |
Select all | ||
|---|---|---|
Brand Analog Devices | ||
Number of ADCs 1 | ||
Resolution 12-bit | ||
Sampling Rate 500Msps | ||
Input Signal Type Differential | ||
Input Type Voltage | ||
Mounting Type Surface Mount | ||
Package Type LFCSP VQ | ||
Pin Count 56 | ||
Integral Nonlinearity Error ±0.6LSB | ||
Digital Interface Type Serial (LVDS) | ||
Power Supply Type Single | ||
Typical Single Supply Voltage 1.9 V | ||
Maximum Operating Temperature +85 °C | ||
Dimensions 8 x 8 x 0.8mm | ||
Minimum Operating Temperature -40 °C | ||
- COO (Country of Origin):
- SG
Analogue to Digital Converters 12 Bit, Single, 1.25MSPS to 500MSPS, Analog Devices
Analogue to Digital Converters - Analog Devices
Analogue to Digital Converters translate analogue electrical signals for data processing purposes. Analog Devices offers the industry’s largest range of A/D converter products that design engineers depend on for reliable performance in the harshest environments, both on Earth and in space.
