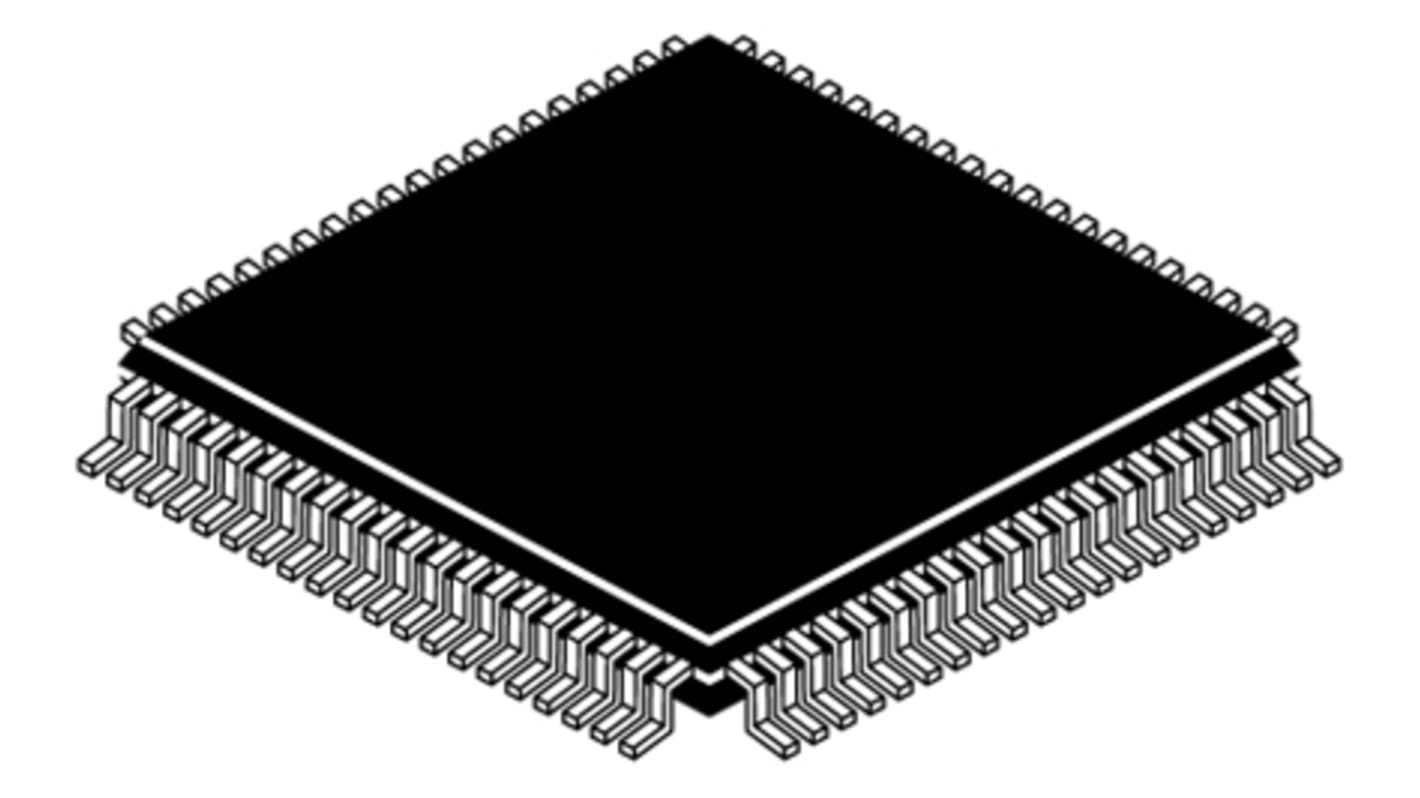

Texas Instruments ADS5281IPFP, 12-bit Serial ADC 8-Channel Differential Input, 80-Pin HTQFP
- RS Stock No.:
- 709-4190
- Mfr. Part No.:
- ADS5281IPFP
- Brand:
- Texas Instruments
Discontinued
- RS Stock No.:
- 709-4190
- Mfr. Part No.:
- ADS5281IPFP
- Brand:
- Texas Instruments
Specifications
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Texas Instruments | |
| Architecture | Pipelined | |
| Number of ADCs | 8 | |
| Resolution | 12-bit | |
| Sampling Rate | 50000ksps | |
| Input Signal Type | Differential | |
| Input Type | Voltage | |
| Mounting Type | Surface Mount | |
| Package Type | HTQFP | |
| Pin Count | 80 | |
| Integral Nonlinearity Error | ±1.5LSB | |
| Digital Interface Type | Serial (LVDS) | |
| Typical Single Supply Voltage | 3.3 V | |
| Minimum Operating Temperature | -40 °C | |
| Maximum Operating Temperature | +85 °C | |
| Dimensions | 12 x 12 x 1mm | |
| Select all | ||
|---|---|---|
Brand Texas Instruments | ||
Architecture Pipelined | ||
Number of ADCs 8 | ||
Resolution 12-bit | ||
Sampling Rate 50000ksps | ||
Input Signal Type Differential | ||
Input Type Voltage | ||
Mounting Type Surface Mount | ||
Package Type HTQFP | ||
Pin Count 80 | ||
Integral Nonlinearity Error ±1.5LSB | ||
Digital Interface Type Serial (LVDS) | ||
Typical Single Supply Voltage 3.3 V | ||
Minimum Operating Temperature -40 °C | ||
Maximum Operating Temperature +85 °C | ||
Dimensions 12 x 12 x 1mm | ||
Analogue to Digital Converters 12 Bit, High Speed (>10MSPS), Texas Instruments
Analogue to Digital Converters - Texas Instruments
