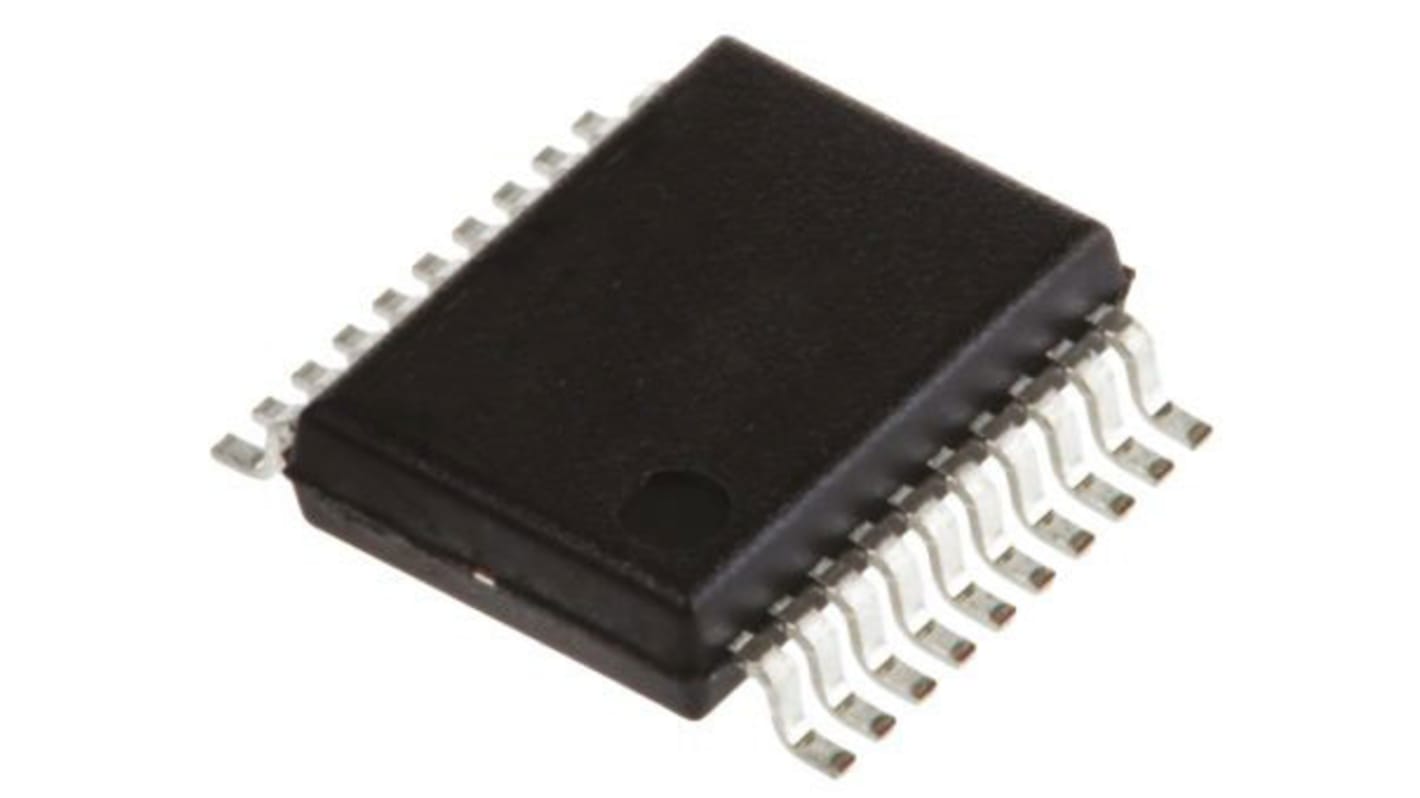

Maxim Integrated, Octal 12 bit- ADC 133ksps, 20-Pin SSOP
- RS Stock No.:
- 190-5069
- Mfr. Part No.:
- MAX1202BCAP+
- Brand:
- Maxim Integrated
Subtotal (1 unit)*
£10.33
(exc. VAT)
£12.40
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- Final 115 unit(s), ready to ship
Units | Per unit |
|---|---|
| 1 + | £10.33 |
*price indicative
- RS Stock No.:
- 190-5069
- Mfr. Part No.:
- MAX1202BCAP+
- Brand:
- Maxim Integrated
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Maxim Integrated | |
| Architecture | SAR | |
| Number of ADCs | 8 | |
| Resolution | 12 bit | |
| Sampling Rate | 133ksps | |
| Input Type | Analogue | |
| Mounting Type | Surface Mount | |
| Package Type | SSOP | |
| Pin Count | 20 | |
| Integral Nonlinearity Error | ±1LSB | |
| Digital Interface Type | 4-Wire Serial, Micro Wire, SPI | |
| Power Supply Type | Dual, Single | |
| Typical Single Supply Voltage | 5 V | |
| Minimum Operating Temperature | 0 °C | |
| Maximum Operating Temperature | 70 °C | |
| Dimensions | 7.33 x 5.38 x 1.78mm | |
Select all | ||
|---|---|---|
Brand Maxim Integrated | ||
Architecture SAR | ||
Number of ADCs 8 | ||
Resolution 12 bit | ||
Sampling Rate 133ksps | ||
Input Type Analogue | ||
Mounting Type Surface Mount | ||
Package Type SSOP | ||
Pin Count 20 | ||
Integral Nonlinearity Error ±1LSB | ||
Digital Interface Type 4-Wire Serial, Micro Wire, SPI | ||
Power Supply Type Dual, Single | ||
Typical Single Supply Voltage 5 V | ||
Minimum Operating Temperature 0 °C | ||
Maximum Operating Temperature 70 °C | ||
Dimensions 7.33 x 5.38 x 1.78mm | ||
8-Channel Single-Ended or 4-Channel Differential Inputs
Operates from Single +5V or Dual ±5V Supplies
User-Adjustable Output Logic Levels (2.7V to 5.25V)
Low Power:
1.5mA (Operating Mode)
2μA (Power-Down Mode)
Internal Track/Hold, 133kHz Sampling Rate
Internal 4.096V Reference (MAX1202)
SPI/MICROWIRE/TMS320-Compatible 4-Wire Serial Interface
Software-Configurable Unipolar/Bipolar Inputs
20-Pin PDIP/SSOP
Applications
5V/3V Mixed-Supply Systems
Battery-Powered Applications
Data Acquisition
High-Accuracy Process Control
Medical Instruments
Operates from Single +5V or Dual ±5V Supplies
User-Adjustable Output Logic Levels (2.7V to 5.25V)
Low Power:
1.5mA (Operating Mode)
2μA (Power-Down Mode)
Internal Track/Hold, 133kHz Sampling Rate
Internal 4.096V Reference (MAX1202)
SPI/MICROWIRE/TMS320-Compatible 4-Wire Serial Interface
Software-Configurable Unipolar/Bipolar Inputs
20-Pin PDIP/SSOP
Applications
5V/3V Mixed-Supply Systems
Battery-Powered Applications
Data Acquisition
High-Accuracy Process Control
Medical Instruments
