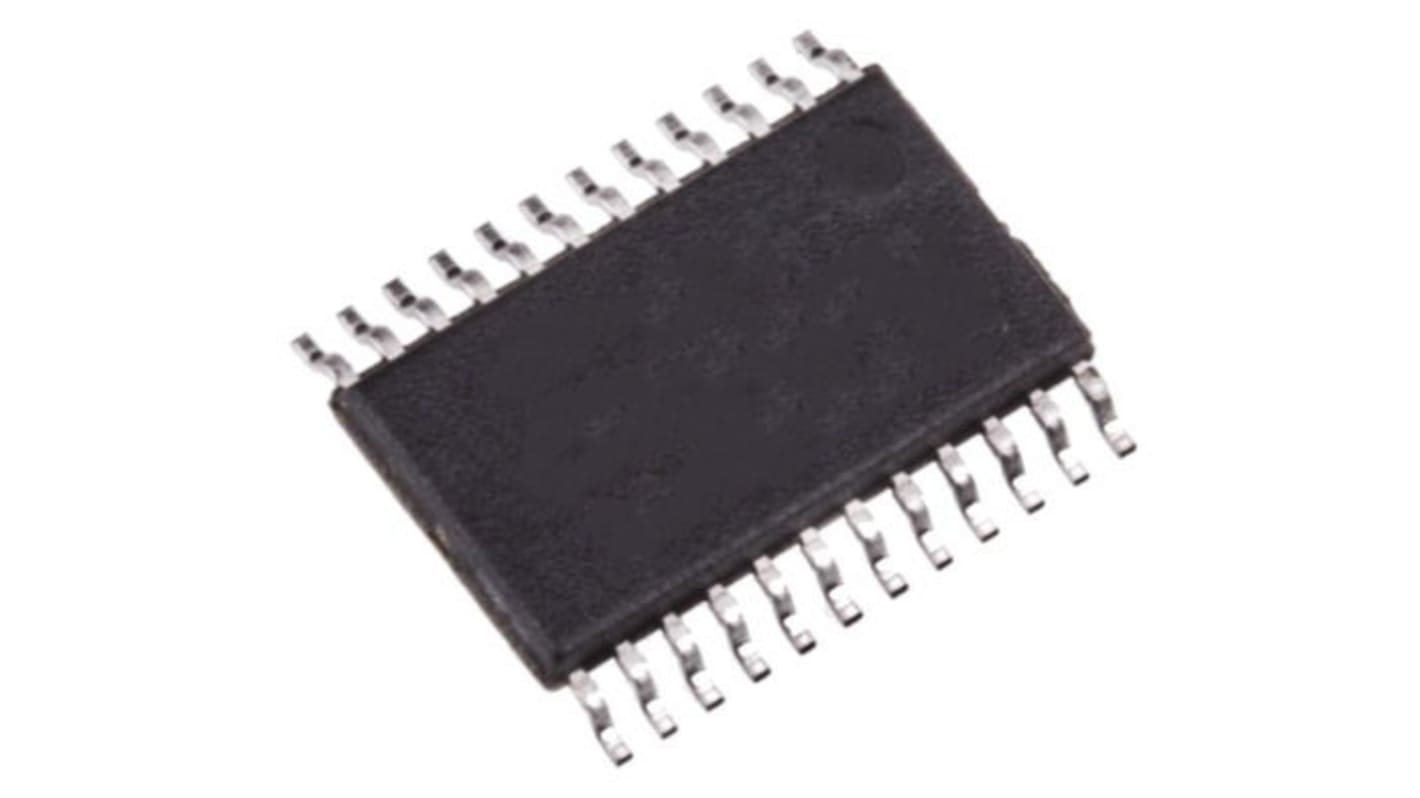

Maxim Integrated 1 24 bit- ADC 64 ksps, 24-Pin TSSOP
- RS Stock No.:
- 190-4993
- Mfr. Part No.:
- MAX11270EUG+
- Brand:
- Maxim Integrated
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£15.43
(exc. VAT)
£18.52
(inc. VAT)
FREE delivery for orders over £60.00
Last RS stock
- Final 1 unit(s), ready to ship
Units | Per unit |
|---|---|
| 1 - 9 | £15.43 |
| 10 - 99 | £14.21 |
| 100 + | £13.49 |
*price indicative
- RS Stock No.:
- 190-4993
- Mfr. Part No.:
- MAX11270EUG+
- Brand:
- Maxim Integrated
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Maxim Integrated | |
| Product Type | ADC | |
| Architecture | Delta Sigma | |
| Number of ADCs | 1 | |
| Resolution | 24 bit | |
| Sampling Rate | 64ksps | |
| Mount Type | Surface | |
| Input Type | Analogue | |
| Package Type | TSSOP | |
| Pin Count | 24 | |
| Minimum Operating Temperature | -40°C | |
| Interface Type | Serial-SPI | |
| Maximum Operating Temperature | 85°C | |
| Height | 1.2mm | |
| Length | 7.9mm | |
| Minimum Supply Voltage | 2.7V | |
| Maximum Supply Voltage | 3.6V | |
| Series | MAX11270 | |
| Standards/Approvals | No | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Maxim Integrated | ||
Product Type ADC | ||
Architecture Delta Sigma | ||
Number of ADCs 1 | ||
Resolution 24 bit | ||
Sampling Rate 64ksps | ||
Mount Type Surface | ||
Input Type Analogue | ||
Package Type TSSOP | ||
Pin Count 24 | ||
Minimum Operating Temperature -40°C | ||
Interface Type Serial-SPI | ||
Maximum Operating Temperature 85°C | ||
Height 1.2mm | ||
Length 7.9mm | ||
Minimum Supply Voltage 2.7V | ||
Maximum Supply Voltage 3.6V | ||
Series MAX11270 | ||
Standards/Approvals No | ||
Automotive Standard No | ||
High Resolution for Instrumentation Applications that Require a Wide Dynamic Range
130dB SNR at 1.9sps
112dB SNR at 1000sps
20.4-Bit Noise-Free Resolution at 1.9sps
17.4-Bit Noise-Free Resolution at 1000sps
Longer Battery Life for Portable Applications
2.4mA Operating Mode Current
4.4mA PGA Low-Noise Mode Current
1μA Sleep Current
High Accuracy for DC Measurements
1ppm INL (typ), 4ppm (max)
Single or Split Analog Supplies Provide Input Voltage Range Flexibility
2.7V to 3.6V (Single Supply) or ±1.8V (Split Supplies)
Flexible High-Performance Filter Architecture Simplifies Design
Programmable SINC Filter
Enables System Integration
Low-Noise PGA with Gains of 1, 2, 4, 8, 16, 32, 64, 128
Signal Buffer Optional
3 General-Purpose I/Os
Enables Integrated Part and System Calibration for Gain and Offset
Robust 24-Pin TSSOP Packaging
Applications
ATE
High-Precision Portable Sensors
Medical Equipment
Scientific Instrumentation
