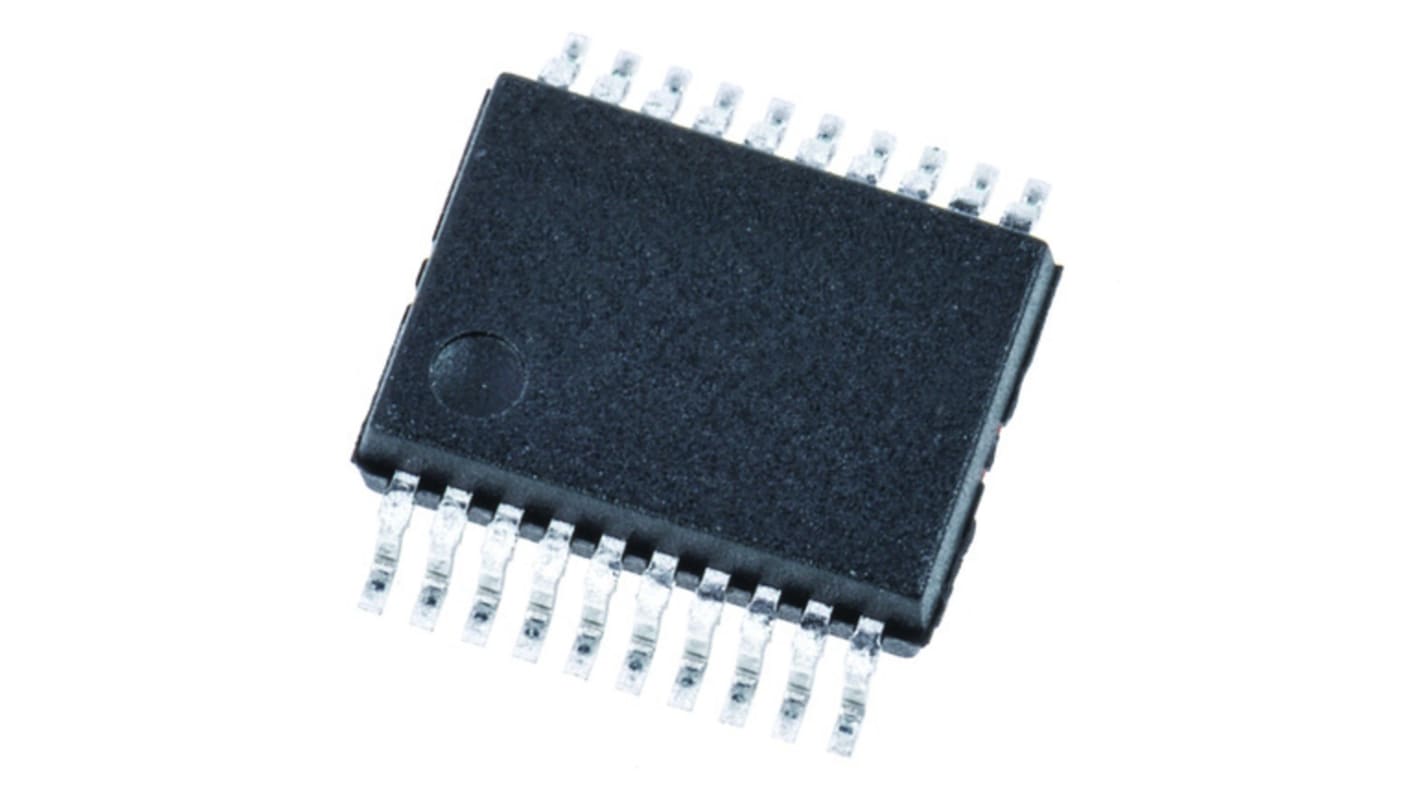

Texas Instruments, Octal 12-bit- ADC 200ksps, 20-Pin SSOP

Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
RS Stock No.:
145-6696
Mfr. Part No.:
ADS7844NB
Brand:
Texas Instruments
Find similar products by selecting one or more attributes.
Select all

Brand

Texas Instruments

Architecture

SAR

Number of ADCs

8

Resolution

12-bit

Sampling Rate

200ksps

Input Signal Type

Differential, Single Ended

Input Type

Voltage

Mounting Type

Surface Mount

Package Type

SSOP

Pin Count

20

Integral Nonlinearity Error

±1LSB

Digital Interface Type

Serial (SPI)

Typical Single Supply Voltage

5 V

Dimensions

7.2 x 5.3 x 1.95mm

Minimum Operating Temperature

-40 °C

Maximum Operating Temperature

85 °C

Analogue to Digital Converters 12 Bit, Multi-Channel (<=10MSPS), Texas Instruments


A range of 12-bit Analogue to Digital Converters (ADCs) with conversion speeds of up to 10 MSPS from Texas Instruments. The range includes both Parallel and Serial interface types and covers various ADC architectures including SAR, Pipelined and Delta-Sigma types.


Analogue to Digital Converters - Texas Instruments
