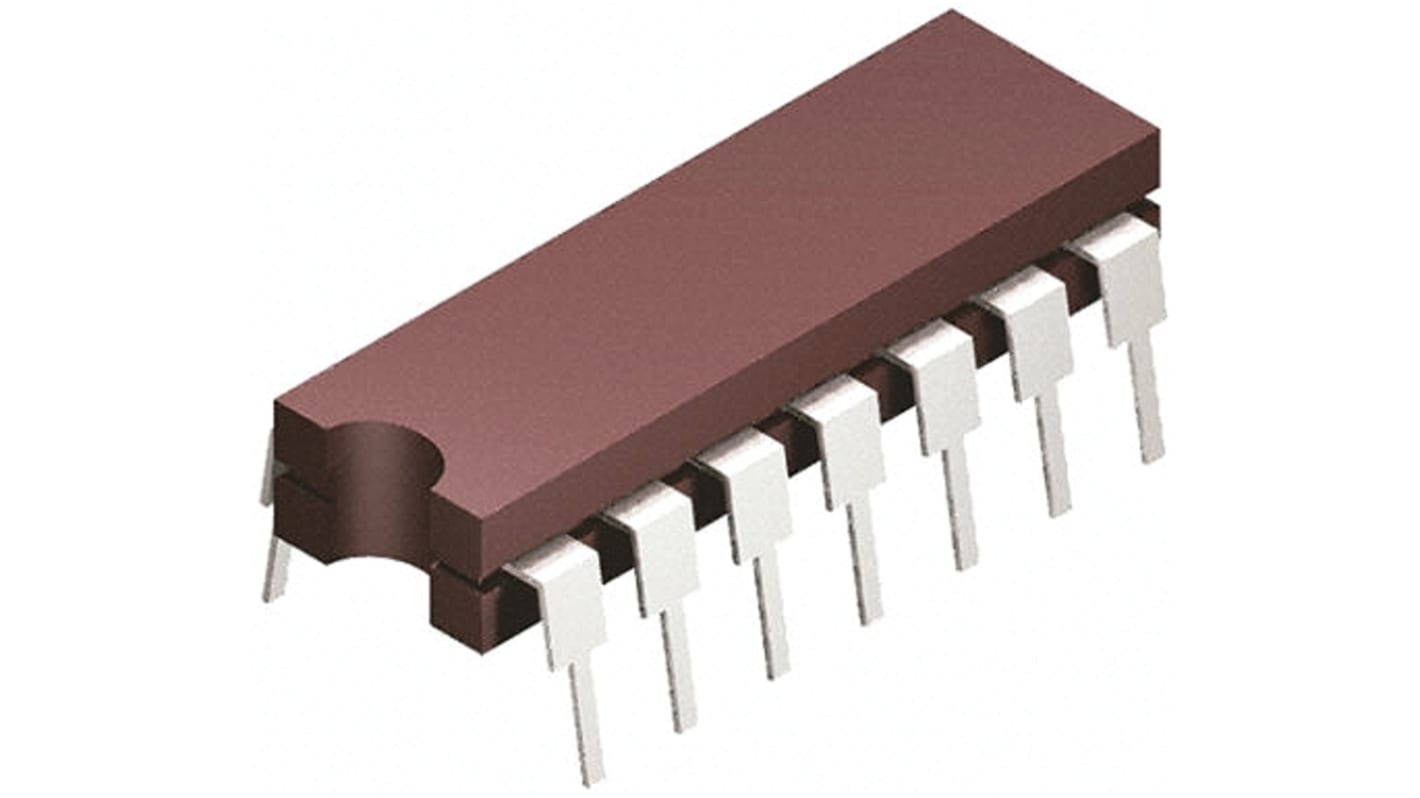

AD734AQ Analog Devices, 4-quadrant Voltage Divider and Multiplier, 10 MHz, 14-Pin CDIP
- RS Stock No.:
- 809-9281
- Mfr. Part No.:
- AD734AQ
- Brand:
- Analog Devices
Bulk discount available
Subtotal (1 unit)*
£30.55
(exc. VAT)
£36.66
(inc. VAT)
Stock information currently inaccessible
Units | Per unit |
|---|---|
| 1 - 12 | £30.55 |
| 13 + | £27.48 |
*price indicative
- RS Stock No.:
- 809-9281
- Mfr. Part No.:
- AD734AQ
- Brand:
- Analog Devices
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Analog Devices | |
| Number of Quadrants | 4 | |
| Output Type | Single Ended | |
| Number of Elements per Chip | 1 | |
| Maximum Operating Frequency | 10 MHz | |
| Maximum Dual Supply Voltage | ±16.5V | |
| Minimum Dual Supply Voltage | ±8V | |
| Mounting Type | Through Hole | |
| Package Type | CDIP | |
| Pin Count | 14 | |
| Length | 19.94mm | |
| Maximum Operating Temperature | +85 °C | |
| Minimum Operating Temperature | -40 °C | |
| Dimensions | 19.94 x 7.87 x 3.56mm | |
| Width | 7.87mm | |
| Height | 3.56mm | |
Select all | ||
|---|---|---|
Brand Analog Devices | ||
Number of Quadrants 4 | ||
Output Type Single Ended | ||
Number of Elements per Chip 1 | ||
Maximum Operating Frequency 10 MHz | ||
Maximum Dual Supply Voltage ±16.5V | ||
Minimum Dual Supply Voltage ±8V | ||
Mounting Type Through Hole | ||
Package Type CDIP | ||
Pin Count 14 | ||
Length 19.94mm | ||
Maximum Operating Temperature +85 °C | ||
Minimum Operating Temperature -40 °C | ||
Dimensions 19.94 x 7.87 x 3.56mm | ||
Width 7.87mm | ||
Height 3.56mm | ||
Non Compliant
Analogue Multipliers, Analog Devices
A range of analogue multipliers and dividers from Analog Devices suitable for a variety of signal processing applications. Both two and four quadrant types are available, in through-hole and SMT page options. Typical applications for these devices include differential ratio and percentage computations, algebraic and trigonometric function synthesis, accurate voltage controlled oscillators and filters, modulators and demodulators, gain control and rms-to-dc conversion.
