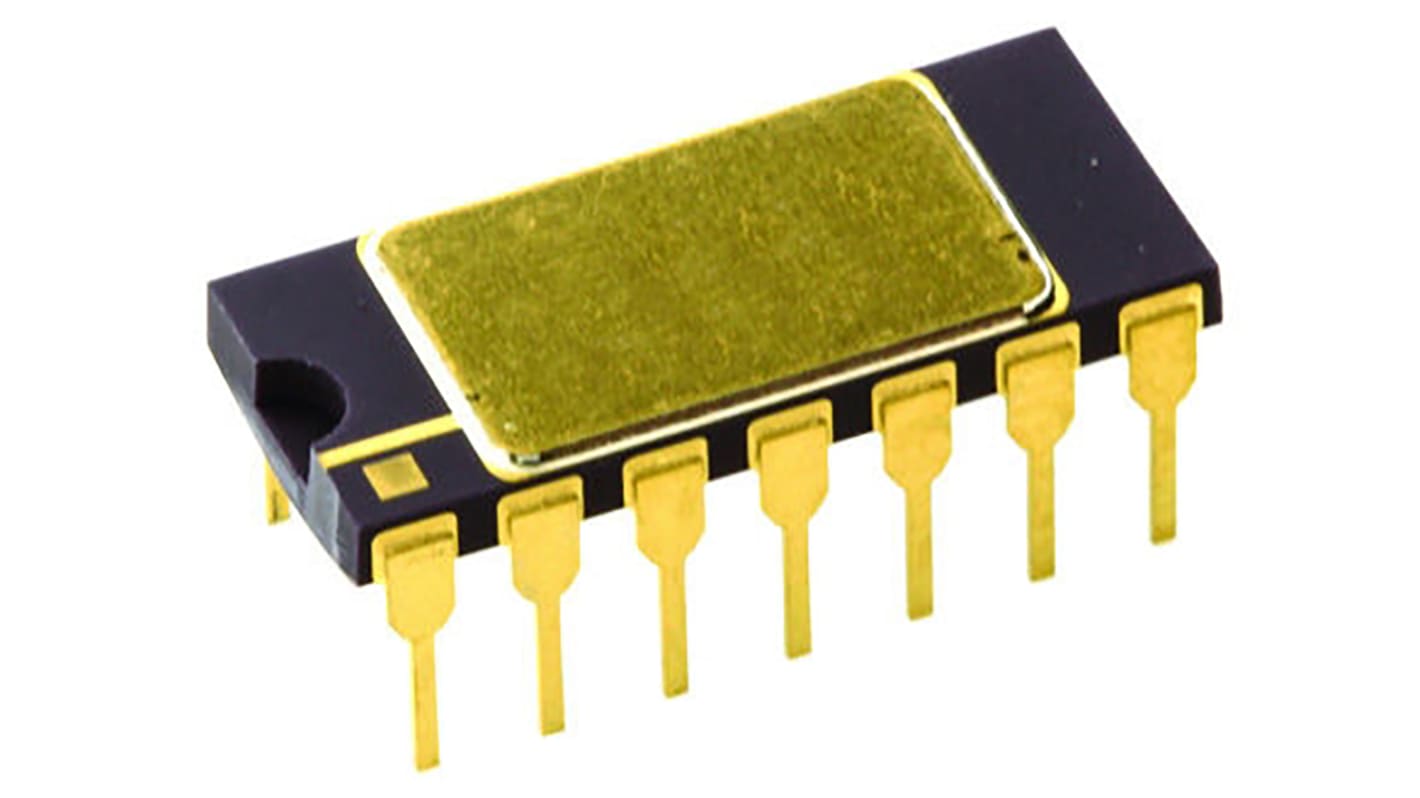

AD632ADZ Analog Devices, 4-quadrant Voltage Multiplier, 1 MHz, 14-Pin SBCDIP
- RS Stock No.:
- 228-378
- Mfr. Part No.:
- AD632ADZ
- Brand:
- Analog Devices
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 228-378
- Mfr. Part No.:
- AD632ADZ
- Brand:
- Analog Devices
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Analog Devices | |
| Number of Quadrants | 4 | |
| Output Type | Single Ended | |
| Number of Elements per Chip | 1 | |
| Maximum Operating Frequency | 1 MHz | |
| Maximum Dual Supply Voltage | ±18V | |
| Minimum Dual Supply Voltage | ±8V | |
| Mounting Type | Through Hole | |
| Package Type | SBCDIP | |
| Pin Count | 14 | |
| Dimensions | 19.08 x 7.11 x 2.06mm | |
| Height | 2.06mm | |
| Minimum Operating Temperature | -25 °C | |
| Width | 7.11mm | |
| Length | 19.08mm | |
| Maximum Operating Temperature | +85 °C | |
Select all | ||
|---|---|---|
Brand Analog Devices | ||
Number of Quadrants 4 | ||
Output Type Single Ended | ||
Number of Elements per Chip 1 | ||
Maximum Operating Frequency 1 MHz | ||
Maximum Dual Supply Voltage ±18V | ||
Minimum Dual Supply Voltage ±8V | ||
Mounting Type Through Hole | ||
Package Type SBCDIP | ||
Pin Count 14 | ||
Dimensions 19.08 x 7.11 x 2.06mm | ||
Height 2.06mm | ||
Minimum Operating Temperature -25 °C | ||
Width 7.11mm | ||
Length 19.08mm | ||
Maximum Operating Temperature +85 °C | ||
Analogue Multipliers, Analog Devices
A range of analogue multipliers and dividers from Analog Devices suitable for a variety of signal processing applications. Both two and four quadrant types are available, in through-hole and SMT page options. Typical applications for these devices include differential ratio and percentage computations, algebraic and trigonometric function synthesis, accurate voltage controlled oscillators and filters, modulators and demodulators, gain control and rms-to-dc conversion.
