Hoyles EX204 Exitguard Alarm

  • RS Stock No. 497-5908
  • Mfr. Part No. EX204
  • Brand Hoyles
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): GB
Product Details

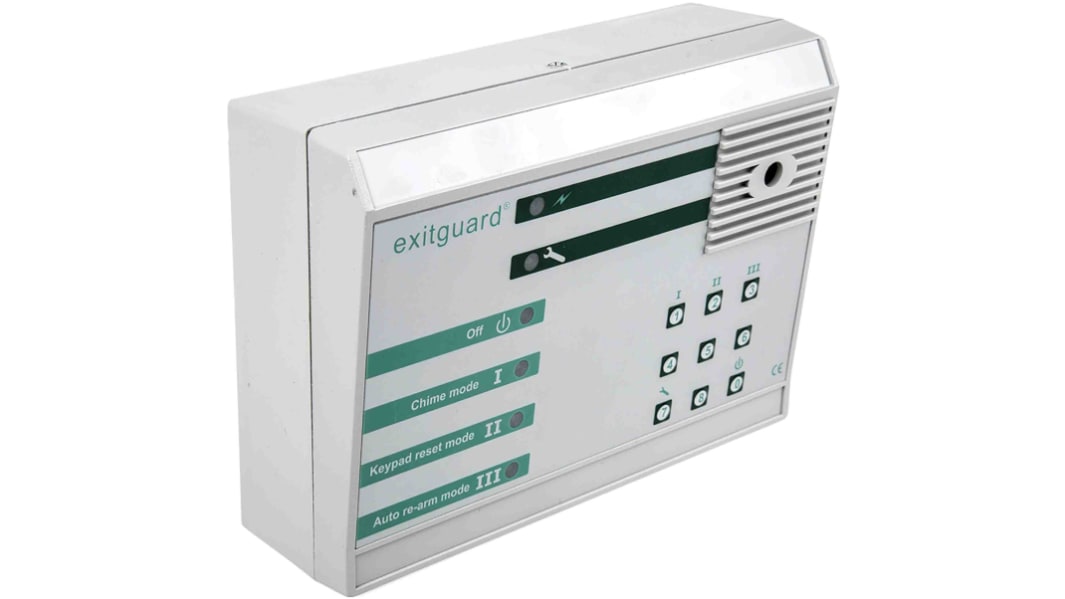

Exitguard Door Monitor Alarm System

Exitguard 24 hour door alarm. Ideal for protecting fire exit doors in supermarkets, hotels, warehouses, leisure centres and all types of public buildings. An integral high power sounder is activated when the door is opened.

High output sounder
Nine digit keypad for both control and programming
Adjustable auto reset and re-arm 0s-88s
Adjustable door open delay 0-88min 58secs
Tamper switch
Fire door checker
Selectable alarm tone
Low battery indicator

Technical specification
Type EX206
Supply voltage 230V ac
Battery backup 6xAA alkaline
Supply current <0.5A

Sound output level
Alarm relay contacts 1 x SPCO (1A/30Vd.c.)
Trigger input

Note

For suitable door sensors please refer to intruder alarm magnetic door contacts

Supplied with

Door contact, warning label and 6xAA alkaline batteries

//media.rs-online.com/t_line/L4975908-01.jpg
Specifications
Attribute Value
Series Exitguard
Sound Level 108dB
Power Source Battery
Components Included Backup Battery
Supply Voltage 7 → 14V dc
Depth 60 mm
Height 125 mm
Width 175mm
20 In stock for FREE next working day delivery
Price Each
£ 82.43
(exc. VAT)
£ 98.92
(inc. VAT)
Units
Per unit
1 +
£82.43
