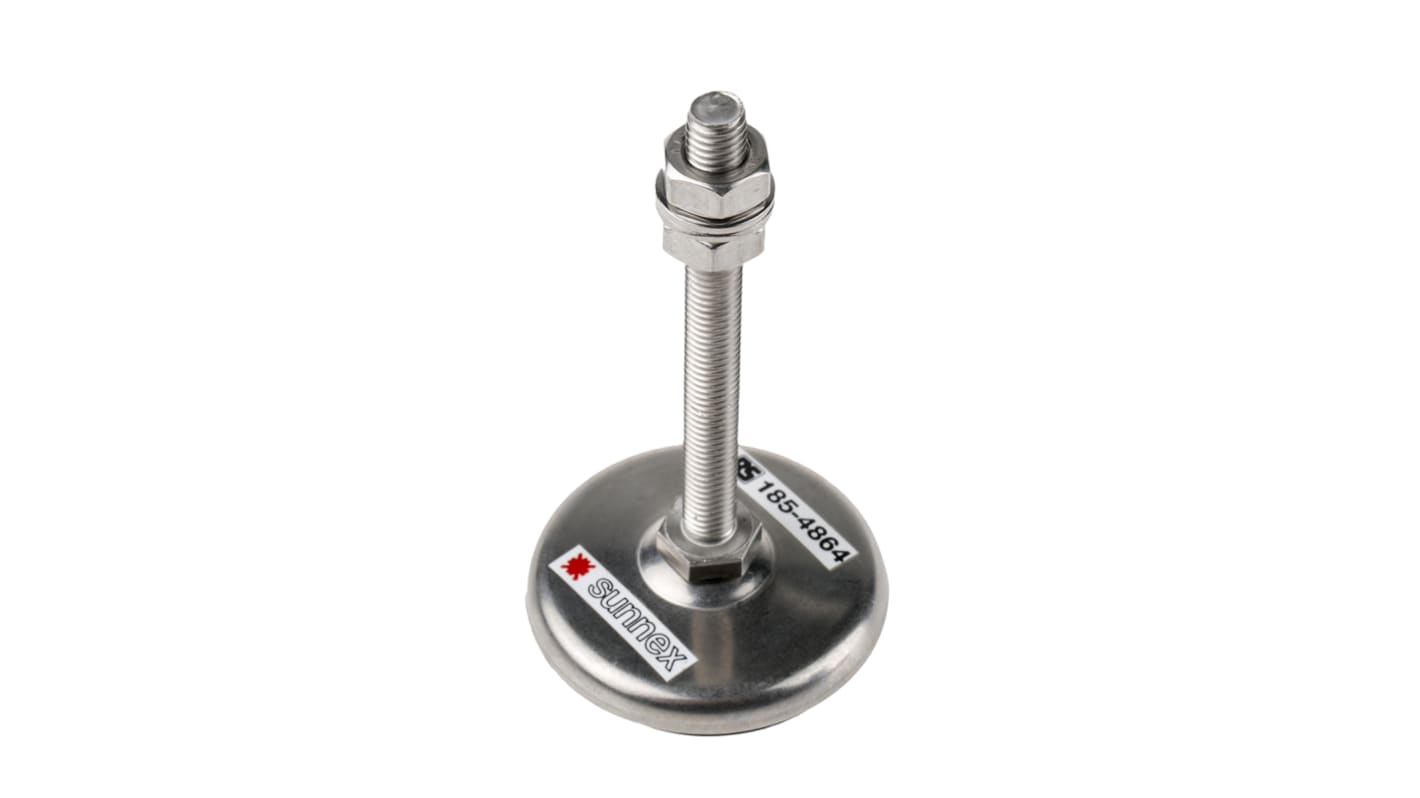

RS PRO M10 68mm Dia. Rubber Adjustable Foot, 150kg Static Load Capacity 3.5° Tilt Angle
- RS Stock No.:
- 185-4864
- Brand:
- RS PRO
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£69.23
(exc. VAT)
£83.08
(inc. VAT)
- RS Stock No.:
- 185-4864
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Static Load Capacity | 150kg | |
| Thread Size | M10 | |
| Thread Length | 100mm | |
| Tilt Angle | 3.5° | |
| Foot Material | Rubber | |
| Base Material | Stainless Steel | |
| Diameter | 68mm | |
| Height | 125mm | |
| Maximum Adjustment Height | 35mm | |
| Minimum Adjustment Height | 15mm | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Static Load Capacity 150kg | ||
Thread Size M10 | ||
Thread Length 100mm | ||
Tilt Angle 3.5° | ||
Foot Material Rubber | ||
Base Material Stainless Steel | ||
Diameter 68mm | ||
Height 125mm | ||
Maximum Adjustment Height 35mm | ||
Minimum Adjustment Height 15mm | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- SE
18/8 Stainless Steel Mounts
A range of stainless steel machine mounts designed for use in applications that impose strict safety and reliability demands on the installation and damping of light and medium duty machinery.
The stainless steel machine mount is designed to meet the specific requirements imposed in humid, wet or corrosive environments within the process industry, or in environments where there are important hygiene requirements such as in the food, drinks and pharmaceuticals industries.
The built in levelling bolt means the stainless steel mounts can be adjusted within a large range with considerable accuracy, allowing a 7º inclination while still maintaining stability.
The stainless steel machine mount is designed to meet the specific requirements imposed in humid, wet or corrosive environments within the process industry, or in environments where there are important hygiene requirements such as in the food, drinks and pharmaceuticals industries.
The built in levelling bolt means the stainless steel mounts can be adjusted within a large range with considerable accuracy, allowing a 7º inclination while still maintaining stability.
Withstands light to medium loads
Articulated bolt for inclined surfaces
Articulated bolt for inclined surfaces
