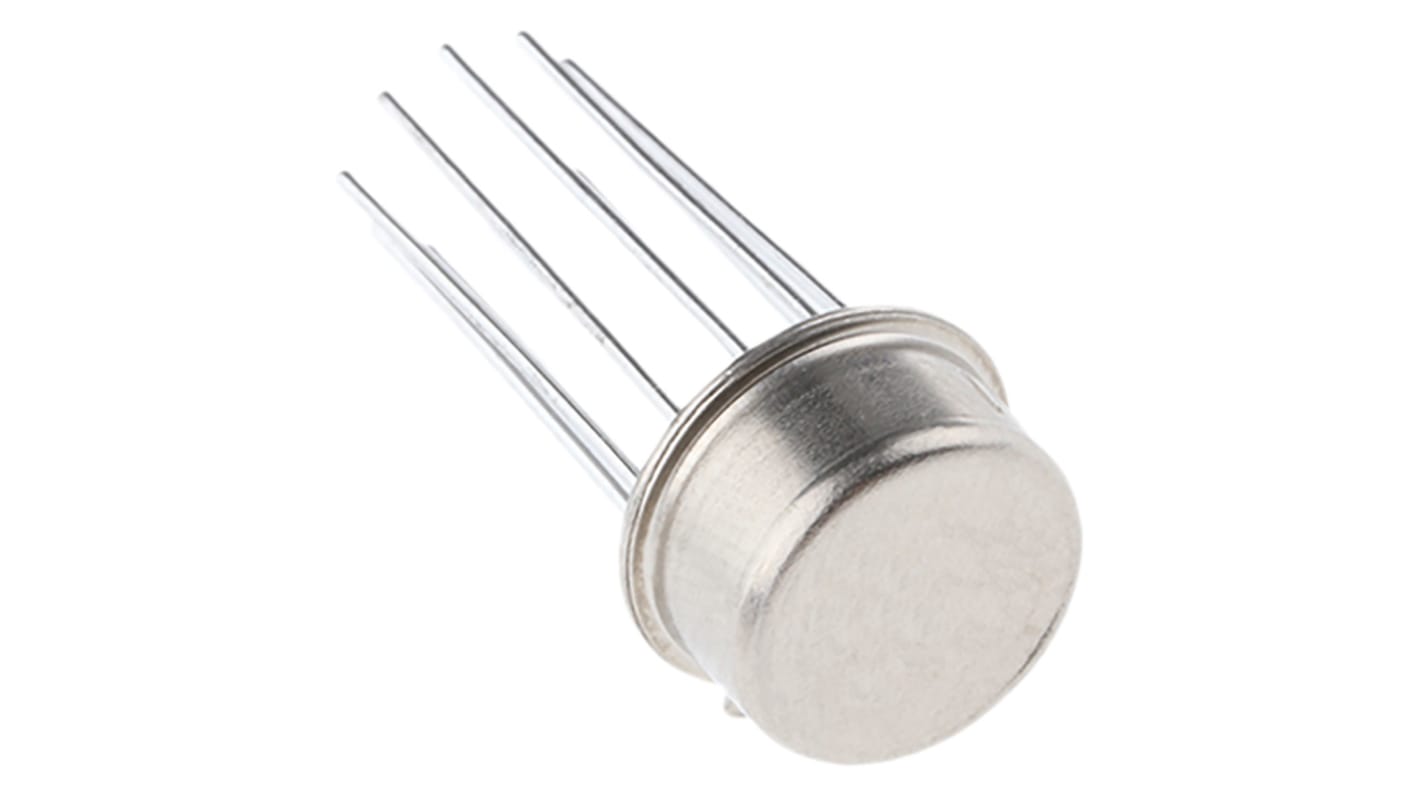

Analog Devices, True RMS-DC Converter, 0 → 11 V 10-Pin, TO-100 AD536ASH
- RS Stock No.:
- 758-9623
- Mfr. Part No.:
- AD536ASH
- Brand:
- Analog Devices
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 758-9623
- Mfr. Part No.:
- AD536ASH
- Brand:
- Analog Devices
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Analog Devices | |
| Maximum Input Voltage | 7 V | |
| Maximum Output Voltage | 11 V | |
| Mounting Type | Through Hole | |
| Pin Count | 10 | |
| Dimensions | 9.4 (Dia.) x 4.7mm | |
| Package Type | TO-100 | |
| Input Voltage Range | 0 → 7 V | |
| Current Limit | 1.2mA | |
| Minimum Input Voltage | 0 V | |
| Maximum Operating Temperature | +125 °C | |
| Minimum Operating Temperature | -55 °C | |
| Operating Temperature Range | -55 → +125 °C | |
| Output Voltage Range | 0 → 11 V | |
Select all | ||
|---|---|---|
Brand Analog Devices | ||
Maximum Input Voltage 7 V | ||
Maximum Output Voltage 11 V | ||
Mounting Type Through Hole | ||
Pin Count 10 | ||
Dimensions 9.4 (Dia.) x 4.7mm | ||
Package Type TO-100 | ||
Input Voltage Range 0 → 7 V | ||
Current Limit 1.2mA | ||
Minimum Input Voltage 0 V | ||
Maximum Operating Temperature +125 °C | ||
Minimum Operating Temperature -55 °C | ||
Operating Temperature Range -55 → +125 °C | ||
Output Voltage Range 0 → 11 V | ||
Non Compliant
RMS to DC Converters, Analog Devices
A range of true RMS to DC Converters from Analog Devices. These products provide integrated circuit solutions to the requirement to accurately measure the true RMS level of complex AC or DC signals. Many of the devices have an additional logarithmic dB output making them ideally suited to audio applications.
