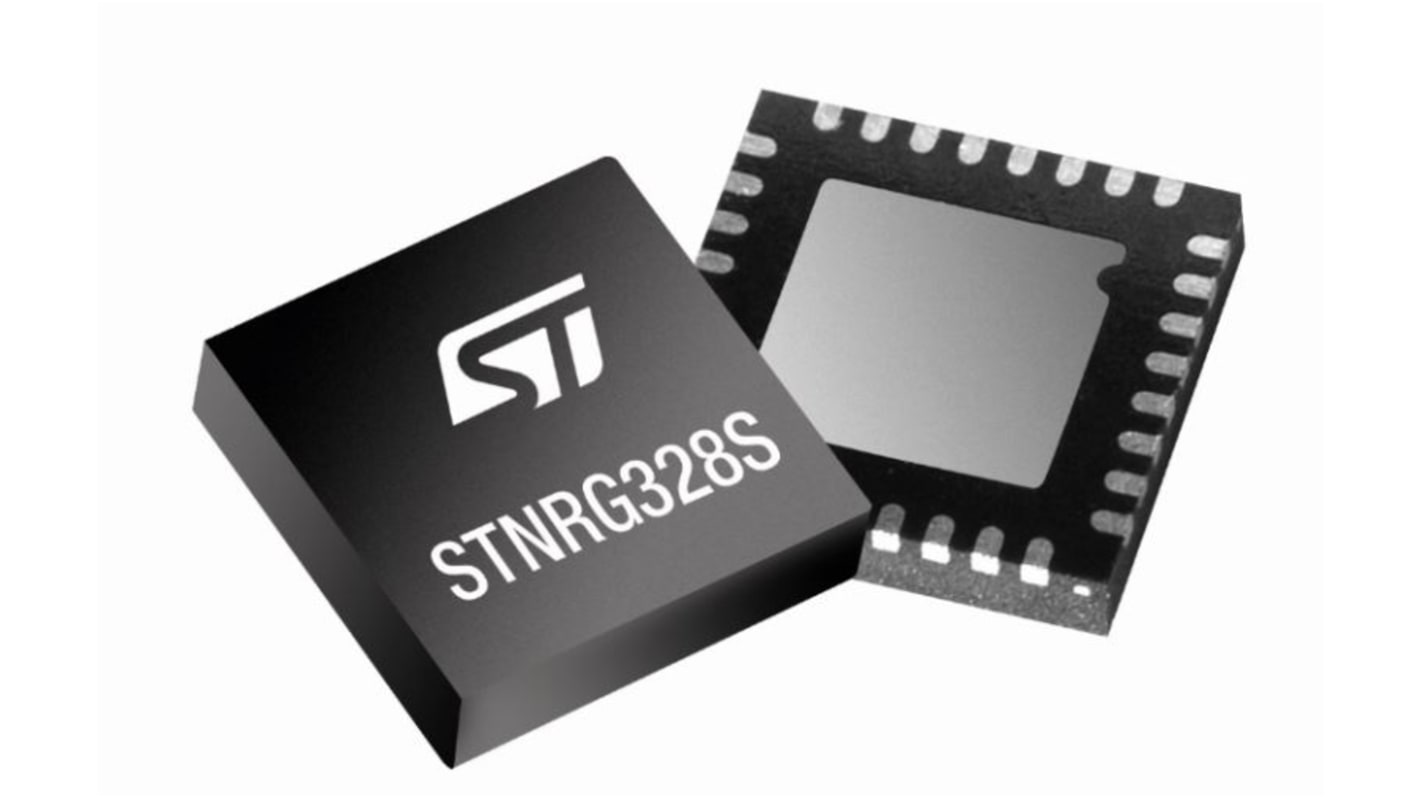

STMicroelectronics, AC/DC Converter 14-Pin, VFQFPN-32
- RS Stock No.:
- 239-5541
- Mfr. Part No.:
- STNRG328S
- Brand:
- STMicroelectronics
Subtotal (1 tray of 490 units)*
£1,704.71
(exc. VAT)
£2,045.75
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Tray* |
|---|---|---|
| 490 + | £3.479 | £1,704.71 |
*price indicative
- RS Stock No.:
- 239-5541
- Mfr. Part No.:
- STNRG328S
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Product Type | AC/DC Converter | |
| Maximum Input Voltage | 60V | |
| Mount Type | Surface | |
| Output Power | 200W | |
| Pin Count | 14 | |
| Package Type | VFQFPN-32 | |
| Minimum Input Voltage | 40V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 105°C | |
| Height | 5mm | |
| Standards/Approvals | RoHS Compliant | |
| Length | 5mm | |
| Series | STNRG328S | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Product Type AC/DC Converter | ||
Maximum Input Voltage 60V | ||
Mount Type Surface | ||
Output Power 200W | ||
Pin Count 14 | ||
Package Type VFQFPN-32 | ||
Minimum Input Voltage 40V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 105°C | ||
Height 5mm | ||
Standards/Approvals RoHS Compliant | ||
Length 5mm | ||
Series STNRG328S | ||
Automotive Standard No | ||
The STMicroelectronics TNRG328S is a digital controller for STC/HSTC open loop resonant converter from STMicroelectronics. It performs a power conversion from an input voltage in a typical range of 40 V to 60 V to an output voltage with a programmable conversion ratio from 2:1 to 10:1 with fixed duty cycle and programmable frequency from 140 kHz to 300 kHz. It’s able to deliver an output power in the range from 500 W up to 2 KW with very high efficiency in wide load range and with efficiency Peak of 98.4% .
Digital controller for STC/HSTC topologies
Support wide conversion ratio
10-bit ADC
UART interface, GPIOs
I2C Master fast/slow speed rate
SMED to implement key control features
A State Machine Event Driven (SMED) implements the control strategy to ensure all the STC/HSTC control functions, in particular the ZCD (Zero Current Detection) feature allows a management of the dead time and the switching frequency in order to achieve the perfect LC resonance and TOP efficiency independently from the external component variations. The STNRG328S firmware is specifically designed to program the SMED and implement the control strategy.
