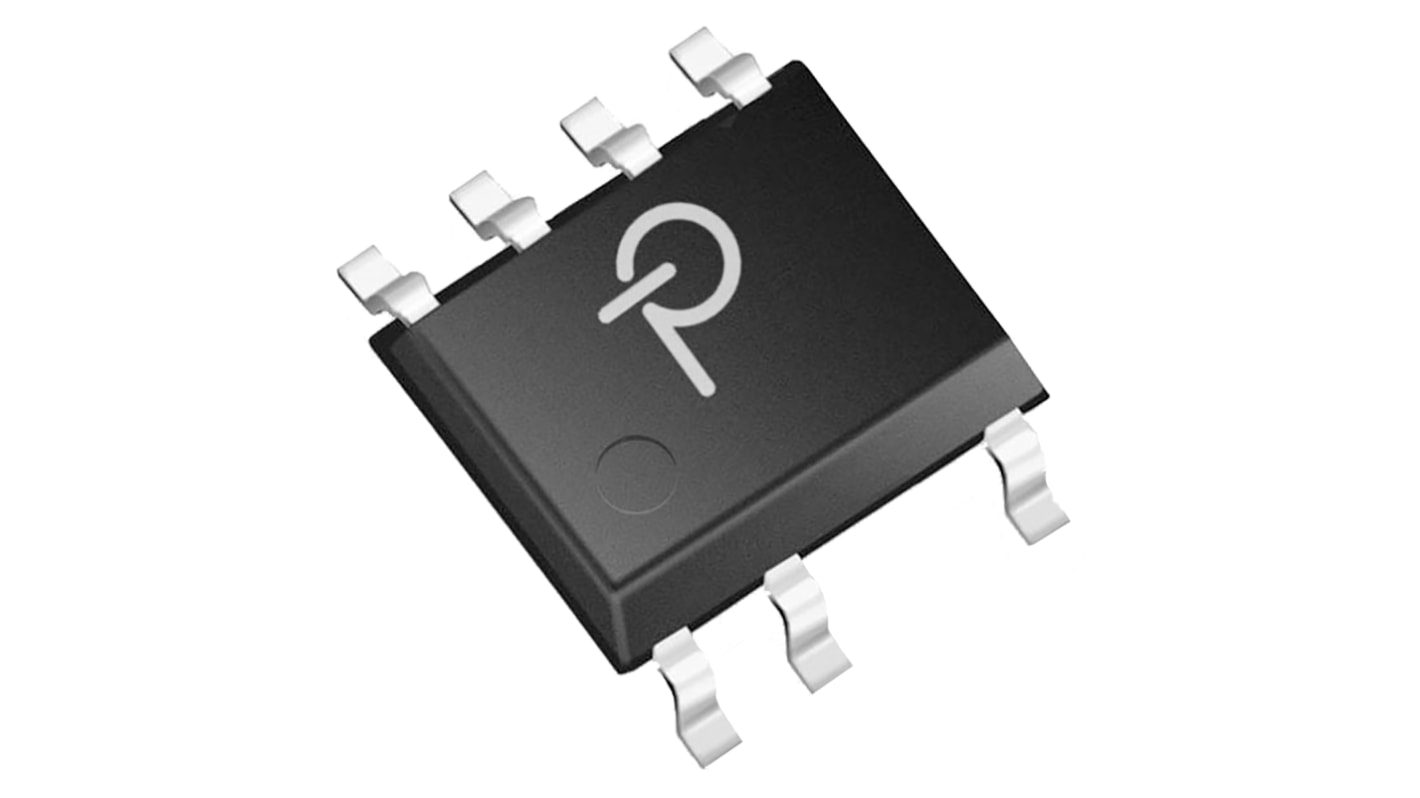

Power Integrations, LED Driver IC, Minimum of 50 V, SOIC LNK454DG
- RS Stock No.:
- 146-2552
- Mfr. Part No.:
- LNK454DG
- Brand:
- Power Integrations
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 146-2552
- Mfr. Part No.:
- LNK454DG
- Brand:
- Power Integrations
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Power Integrations | |
| Package Type | SOIC | |
| Priced to Clear | Yes | |
| Output Voltage Range | Minimum of 50 V | |
| Minimum Output Voltage | 50 V | |
Select all | ||
|---|---|---|
Brand Power Integrations | ||
Package Type SOIC | ||
Priced to Clear Yes | ||
Output Voltage Range Minimum of 50 V | ||
Minimum Output Voltage 50 V | ||
- COO (Country of Origin):
- CN
LinkSwitch-PL series LED Driver AC-DC Converters
A range of off-line AC-DC converters from Power Integrations designed for use as LED drivers in solid-state lighting applications. The devices feature single-stage PFC and constant current control for non-isolated applications and a control algorithm which provides flicker-free TRIAC dimming with minimal external components. These 4-pin monolithic ICs integrate a high-voltage power MOSFET, a novel discontinuous-mode variable frequency variable on-time controller, frequency jitter, cycle-by-cycle current limit and hysteretic thermal shutdown circuitry.
• Optimized for non-isolated flyback designs
• Single-stage power factor correction and accurate constant current output
• Flicker-free phase-controlled TRIAC dimming
• Very low component count with small non-electrolytic bulk capacitor for compact replacement lamp designs
• Complete elimination of control loop compensation
• Frequency jitter greatly reduces EMI filter size and costs
• Low dissipation direct sensing of LED current
• Short-circuit, overload, open feedback and output overvoltage protection
• Hysteretic thermal shutdown
• Meets high-voltage creepage between DRAIN and all other pins both on PCB and at package
• Compact SO8, eSOP12 and eDIP12 packages
• Single-stage power factor correction and accurate constant current output
• Flicker-free phase-controlled TRIAC dimming
• Very low component count with small non-electrolytic bulk capacitor for compact replacement lamp designs
• Complete elimination of control loop compensation
• Frequency jitter greatly reduces EMI filter size and costs
• Low dissipation direct sensing of LED current
• Short-circuit, overload, open feedback and output overvoltage protection
• Hysteretic thermal shutdown
• Meets high-voltage creepage between DRAIN and all other pins both on PCB and at package
• Compact SO8, eSOP12 and eDIP12 packages
AC-DC Converters, Power Integrations
