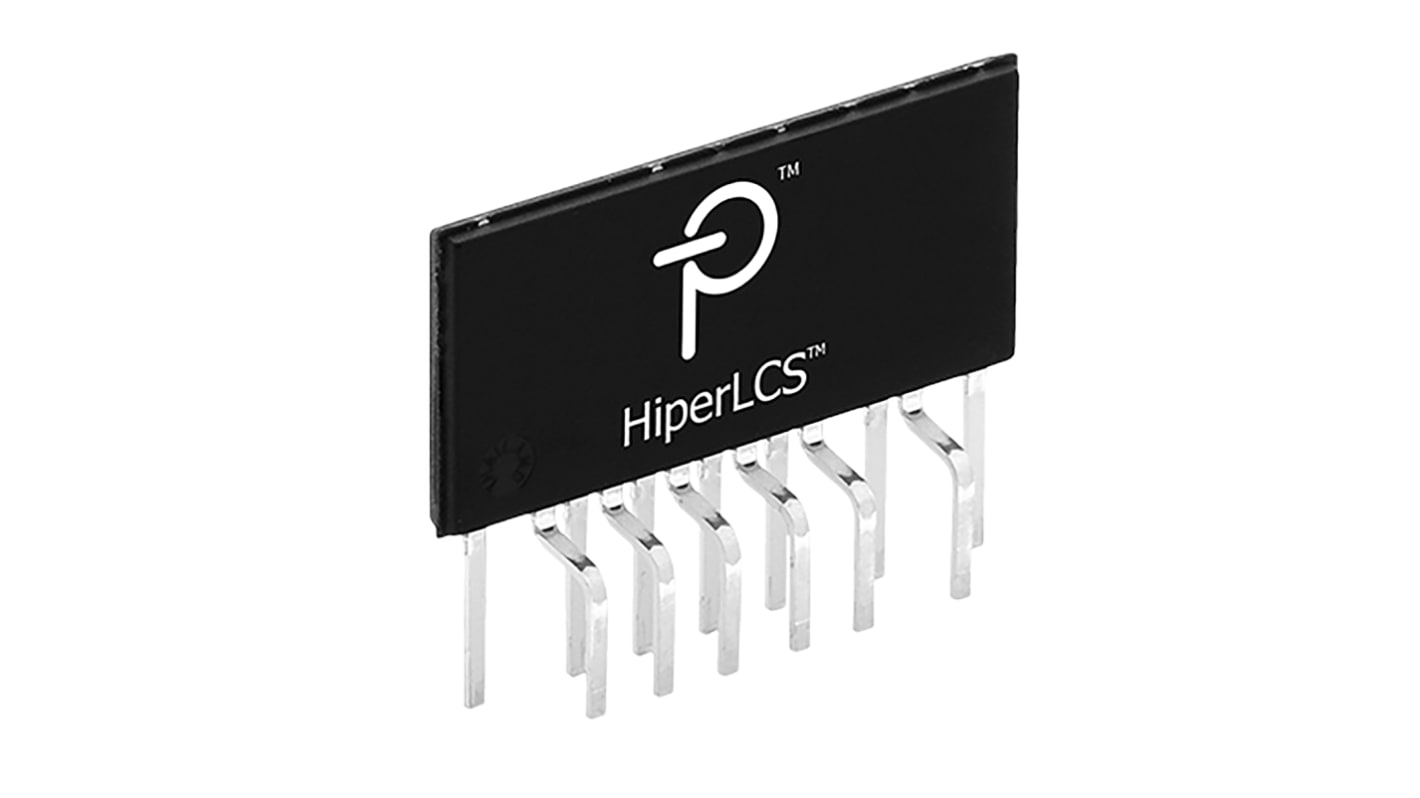

Name: Power Integrations, AC-DC Converter, -1.3 → 530 V 13-Pin, eSIP-16J LCS701HG
Brand: Power Integrations
SKU: 146-2493
Price: 3.97 GBP
Availability: OutOfStock

HiperLCS Family of LLC AC-DC Converters

The Power Integrations HiperLCS family of integrated AC-DC Converters utilise a resonant half bridge LLC topology to implement a high-efficiency offline converter in a compact SIP package. These devices incorporate a multi-function controller, high-side and low-side gate drivers, plus two power MOSFETs in a half-bridge configuration and are suitable for power supply designs of up to 400W. The high level of integration minimizes the external component count and reduces PCB layout area as well as simplifying power supply design.

• High maximum operating frequency of 1 MHz
• Nominal steady-state operation up to 500 kHz
• Programmable brown-in/out thresholds and hysteresis
• Under-voltage and over-voltage protection
• Programmable over-current protection
• Short-circuit protection
• Over-temperature protection
• Programmable soft-start time and delay before soft-start
• Simple single-clip attachment to heat sink

AC-DC Converters, Power Integrations

Select all	Attribute	Value
	Brand	Power Integrations
	Maximum Input Voltage	15 V
	Maximum Output Voltage	530 V
	Mounting Type	Through Hole
	Pin Count	13
	Maximum Output Current	7.7A
	Dimensions	16.59 x 2.06 x 8.25mm
	Package Type	eSIP-16J
	Input Voltage Range	11.4 → 15 V
	Minimum Input Voltage	11.4 V
	Maximum Operating Temperature	+150 °C
	Length	16.59mm
	Width	2.06mm
	Height	8.25mm
	Minimum Operating Temperature	-40 °C
	Typical Operating Supply Voltage	12 V
	Output Voltage Range	-1.3 → 530 V
	Output Current Range	Maximum of 7.7 A
	Minimum Output Voltage	-1.3 V
	Operating Temperature Range	-40 → +150 °C

	Select all
	Brand Power Integrations
	Maximum Input Voltage 15 V
	Maximum Output Voltage 530 V
	Mounting Type Through Hole
	Pin Count 13
	Maximum Output Current 7.7A
	Dimensions 16.59 x 2.06 x 8.25mm
	Package Type eSIP-16J
	Input Voltage Range 11.4 → 15 V
	Minimum Input Voltage 11.4 V
	Maximum Operating Temperature +150 °C
	Length 16.59mm
	Width 2.06mm
	Height 8.25mm
	Minimum Operating Temperature -40 °C
	Typical Operating Supply Voltage 12 V
	Output Voltage Range -1.3 → 530 V
	Output Current Range Maximum of 7.7 A
	Minimum Output Voltage -1.3 V
	Operating Temperature Range -40 → +150 °C

Power Integrations, AC-DC Converter, -1.3 → 530 V 13-Pin, eSIP-16J LCS701HG

HiperLCS Family of LLC AC-DC Converters
