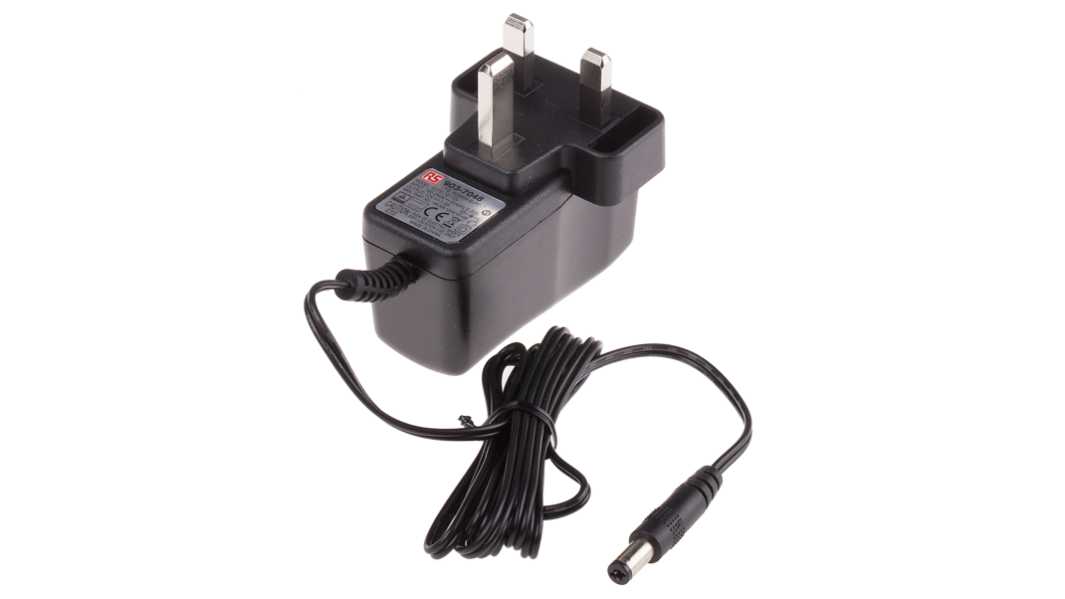

RS PRO 12W Plug In Power Supply 12V dc Output, 0 → 1A Output
- RS Stock No.:
- 903-7048
- Brand:
- RS PRO
View all AC/DC Adapters
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
RS Plug-In Switch Mode Power Supply - ECPE UK Series
Reliable & robust range of RS Pro plug-in power supplies suitable for a wide variety of applications. Comes complete with automatic short circuit & overload protection and recovery to ensure a safe installation. Can be easily used in a static or mobile application thanks to a lightweight & durable compact casing.
Class II rated range of power supplies
UL60950-1 & TUV EN60950-1 approved
Complies with EN55022 Class B & EN61000-3-2, 3
UL60950-1 & TUV EN60950-1 approved
Complies with EN55022 Class B & EN61000-3-2, 3
Note
European Variants of this range are also available, please see stock number 903-6991 typical.
Specifications
| Attribute | Value |
| Plug Type | UK |
| Output Voltage | 12V dc |
| Input Voltage | 90 → 264V ac |
| Output Current | 0 → 1A |
| Maximum Temperature | +40°C |
| Output Connector | 2.1 x 5.5 x 11 mm Centre Positive |
| Input Connector | UK Plugtop |
| Number of Outputs | 1 |
| Power Rating | 12W |
| Cable Length | 1.83m |
| Standards Met | CE, EN 55022 Class B, EN 61000-11, EN 61000-2, EN 61000-3, EN 61000-3-2, EN 61000-3-3, EN 61000-4, EN 61000-6, EN 61000-8, TUV EN 60950-1, UL 60950-1 |
| MTBF | 1yr |
| Length | 46mm |
| Series | ECPE-12 UK |
| Type | Switched Mode Power Supply |
| Energy Efficiency Level | VI |
| Minimum Temperature | 0°C |
| Width | 72mm |
| Depth | 61mm |
Discontinued product
Alternative
This product is not currently available. Here is our alternative recommendation.
