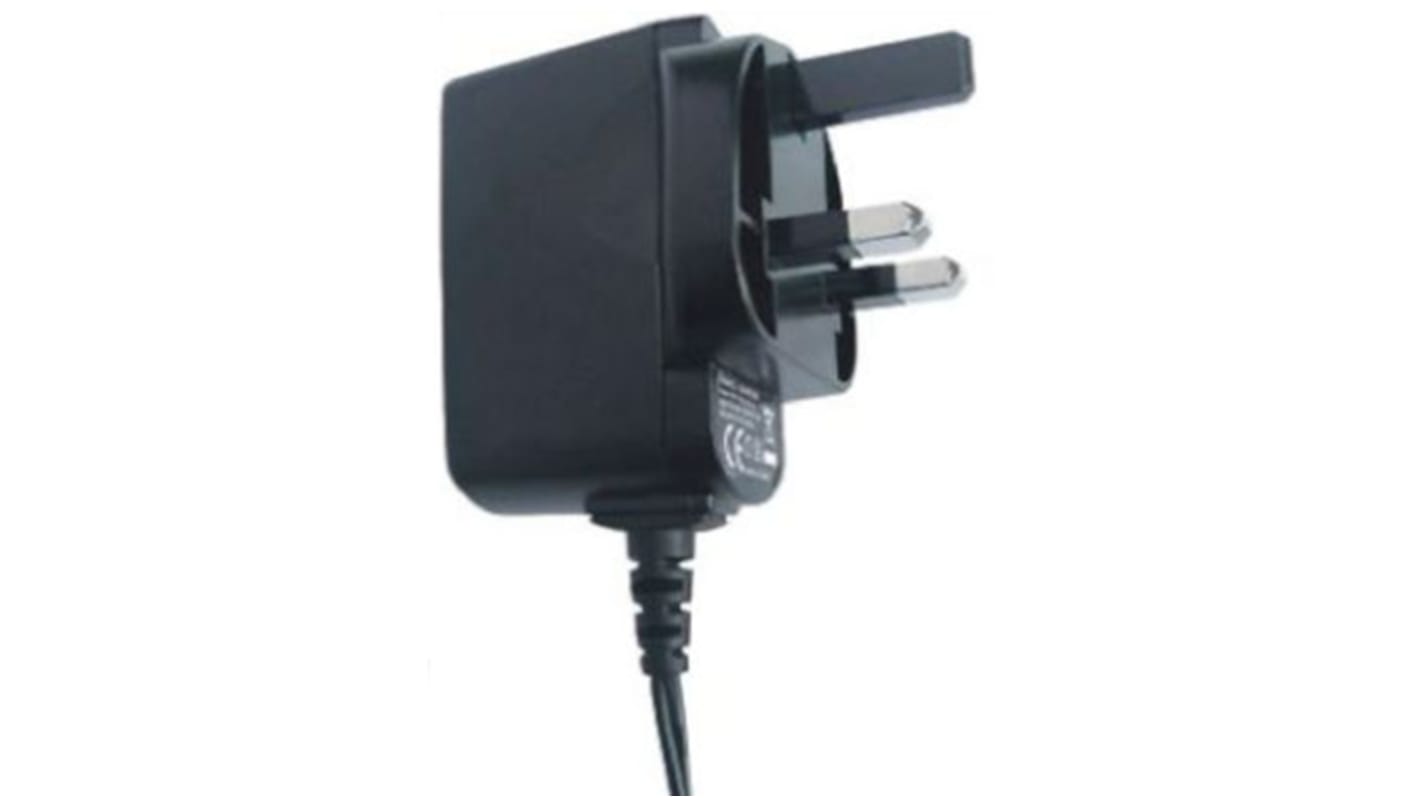

RS PRO, 6W Plug In Power Supply 5V dc, 1.2A, Level V Efficiency, 1 Output Switched Mode Power Supply, Type G - British

  • RS Stock No. 726-3069
  • Mfr. Part No. HNP06UK-MicroUSB
  • Brand RS PRO
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

RS Plug-in micro USB power supply Adapter- HNP06 UK Series

Plug in power supply adapter with an integrated micro USB socket. This USB charger is suitable for use with the Raspberry Pi computer board and many other applications including wireless communications, peripherals, networking, portable equipment and telecoms.

Features & Benefits

Class II double insulated
ErP compliant to level V
Overload and short circuit protection
Low standby current consumption
EMC and Harmonic compliant
Micro-USB connector with 1.5m cable
Multi-purpose application including the Raspberry Pi computer board

Note

Conforms to Energy-related Product Directive 2009/125/EC.
MTBF to MIL-HDBK-217F

Standards

EN60950-1

Specifications
Attribute Value
Input Voltage 90 → 264V ac
Output Voltage 5 V dc
Output Current 1.2A
Plug Type Type G - British 3-Pin
Output Connector Micro USB
Power Rating 6W
Type Switched Mode Power Supply
Number of Outputs 1
Length 58.7mm
Cable Length 1.5m
Ripple And Noise 100mV Pk-Pk
Holdup Time 5ms
Standards Met ErP Compliant
Load Regulation ±5%
Application Networking, Peripherals, Portable Equipment, Telecom, Wireless Communications
Special Features Double Insulated, Lowest Standby Power Consumption, Plug In Switching Adaptor
Input Frequency Range 47 → 63Hz
MTBF 40000h
Maximum Input Current 300mA
Depth 68.3mm
Minimum Temperature -5°C
Power Signal Conversion Type AC-DC
Energy Efficiency Level V
Efficiency 71%
Weight 70g
Maximum Temperature +45°C
Width 50mm
Line Regulation ±1%
Protection Features Overload Protection, Short Circuit Protection
Discontinued product
