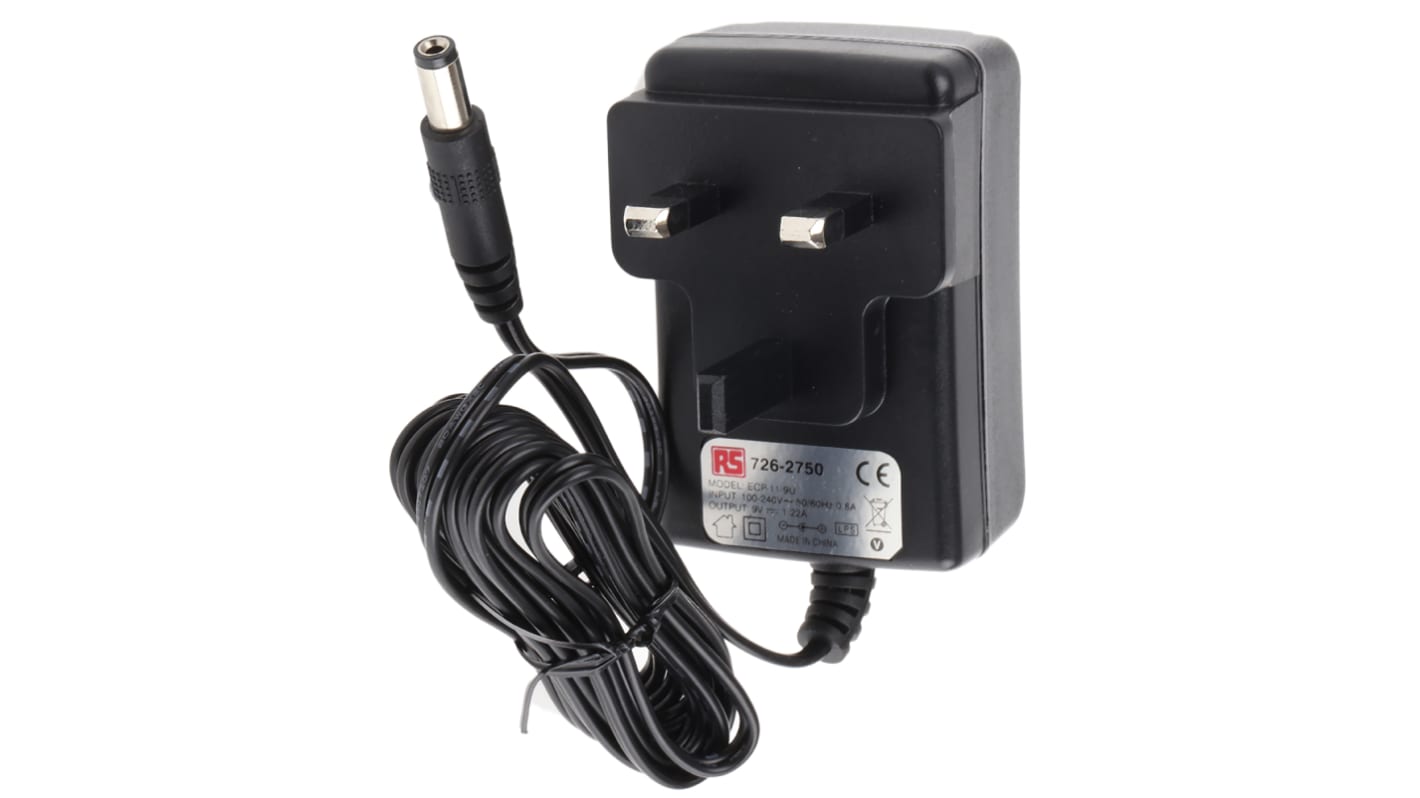

RS PRO, 11W Plug In Power Supply 9V dc, 1.22A, Level V Efficiency, 1 Output Switched Mode Power Supply, Type G -

  • RS Stock No. 726-2750
  • Warranty 3 Year
  • Brand RS PRO
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TW
Product Details

RS Plug-in Switch Mode Power Supplies - ECP UK Series

Energy saving external switch mode plug-top power supplies that are compact and lightweight. These external switch mode plug-top power supplies are Class II double insulated and ErP level V compliant.

Very low No-load power consumption
Regulated output
ErP level V compliant
Class II double insulated
Short circuit, overload voltage and overload current protection
1.2 metre (approx) output lead with 2.1x5.5x9.5mm centre positive output connector
EMC compliance to EN 55022 Class B

Note

Conforms to Energy-related Product Directive 2009/125/EC,MTBF to MIL-HDBK-217F (25°C)

Specifications
Attribute Value
Type Switched Mode Power Supply
Plug Type Type G - British 3-Pin
Output Voltage 9 V dc
Input Voltage 90 → 264V ac
Output Current 1.22A
Maximum Temperature +40°C
Output Connector 2.1 x 5.5 x 9.5 mm Centre Positive
Number of Outputs 1
Power Rating 11W
Cable Length 1.2m
Load Regulation ±5%
Length 64mm
Standards Met ErP Compliant
Energy Efficiency Level V
Minimum Temperature 0°C
Depth 34.8mm
Width 49.5mm
Discontinued product
