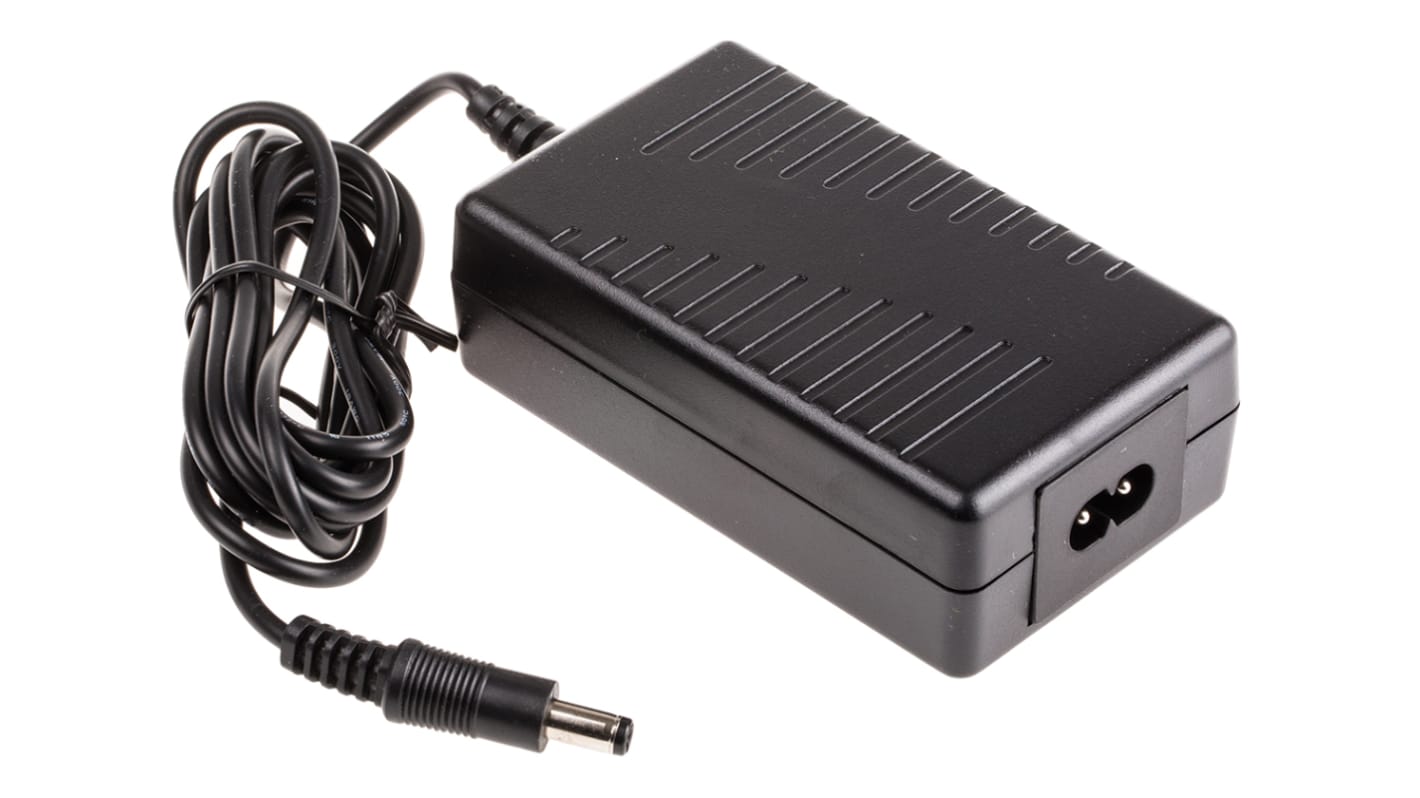

Meanwell 12W to 25W ErP Single Output Switch Mode Desktop Power Supply - GS15B, GS18B, GS25B Series
Energy saving, class 2, switch mode, desk-top power supplies High efficiency, long life and high reliability ErP level V, step 2 compliant No load power consumption <0.3W Meet EISA 2007 (Energy Independence and Security Act) Short circuit, over load and over voltage protection 2-pin IEC320, C8 input socket. For suitable input leads see stk nos. 452-669 (UK 3-pin plug) or 321-203 (Schuko plug) typically Approximately 1.2m output lead fitted with a centre positive 2.1mm jack plug EMC compliance to FCC part 15, EN55022 class B Harmonic compliance to EN 61000-3-2,3
Note
Conforms to Energy-related Product Directive 2009/125/EC.
Power derates above 40°C. MTBF to MIL-HDBK-217F.
Standards
UL60950-1, CSA C22.2, TUV EN60950-1
Approvals
UL/cUL recognised, TUV, CB
Attribute
Value
Adapter Type
Power Brick Adapter
Output Voltage
7.5V dc
Input Voltage
100 → 240V ac
Output Current
1.6A
Maximum Temperature
+50°C
Output Connector
2.1 x 5.5 x 11 mm Centre Positive
Input Connector
IEC 320-C8
Number of Outputs
1
Cable Length
1830mm
Efficiency
78%
Standards Met
ErP Compliant
MTBF
500000h
Minimum Temperature
0°C
Depth
32.8mm
Length
100mm
Energy Efficiency Level
V
Load Regulation
±5%
Line Regulation Range
±0.5%
Width
58.5mm
