- RS Stock No.:
- 452-8518
- Mfr. Part No.:
- 2124000043
- Brand:
- Mascot
33 In stock - FREE next working day delivery available
4 available from Europe for delivery within 1 working day(s).
Added
Price Each
£35.74
(exc. VAT)
£42.89
(inc. VAT)
Units | Per unit |
1 - 4 | £35.74 |
5 - 9 | £34.67 |
10 - 24 | £33.60 |
25 - 49 | £32.52 |
50 + | £31.45 |
- RS Stock No.:
- 452-8518
- Mfr. Part No.:
- 2124000043
- Brand:
- Mascot
Technical Reference
Legislation and Compliance
Product Details

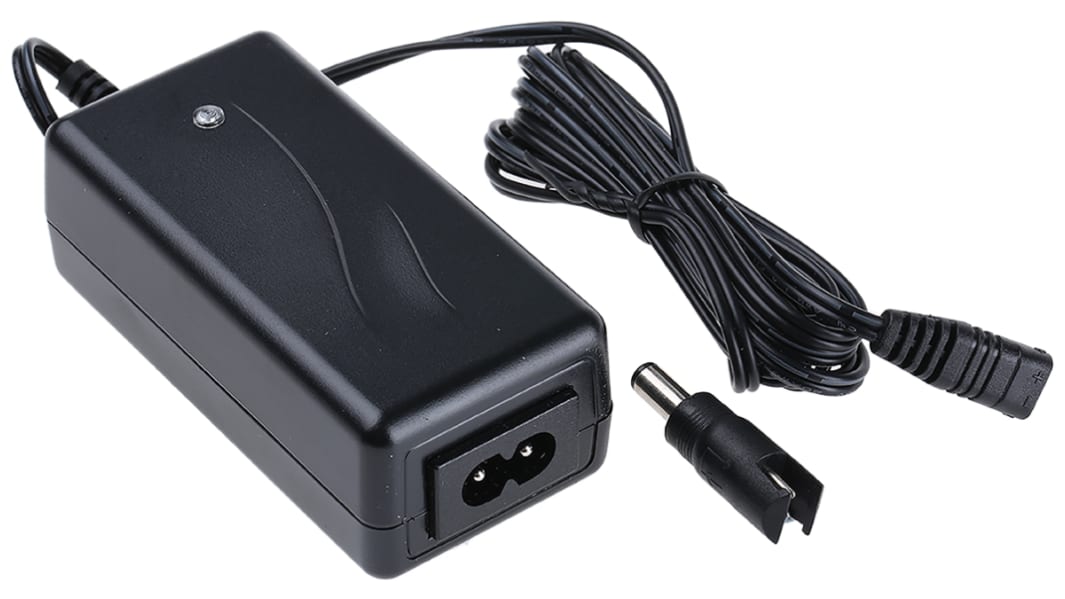

Mascot Switch Mode Desktop Power Supply
The Mascot switch mode desktop power supply is a 15W, single output exchangeable AC and DC plug. It has a power rating of 12VDC. It offers 2-pin IEC320 input connection power supply.
Note:
Non-compliant for industrial use only, not in the scope of the regulation (EC) No 125/2009.
Inclusions:
2 loose connectors with a snap-lock feature, allowing 4 connection options, 2.1x5.5x12mm and 2.5x5.5x12mm female co-ax plugs.
Note:
Non-compliant for industrial use only, not in the scope of the regulation (EC) No 125/2009.
Inclusions:
2 loose connectors with a snap-lock feature, allowing 4 connection options, 2.1x5.5x12mm and 2.5x5.5x12mm female co-ax plugs.
Features and Benefits
1.8m (approximately) output lead with polarity inverter
Fully regulated output
Isolation 4kV input/output
Mains cord not included
Medically approved (EN 60601) external switch mode power supplies
Mounting brackets available
over-voltage and short circuit protection
Overvoltage protection
Short circuit proof
Fully regulated output
Isolation 4kV input/output
Mains cord not included
Medically approved (EN 60601) external switch mode power supplies
Mounting brackets available
over-voltage and short circuit protection
Overvoltage protection
Short circuit proof
Certifications
EMC immunity to EN 50082-1
IP67 rated
Medical EN 60601-1-2
EN 60950
EN 60601 (UL 2601-1)
UL approved
IP67 rated
Medical EN 60601-1-2
EN 60950
EN 60601 (UL 2601-1)
UL approved
Specifications
Attribute | Value |
---|---|
Adapter Type | Power Brick Adapter |
Plug Type | 2-Pin IEC |
Output Voltage | 12V dc |
Input Voltage | 100 → 240V ac |
Output Current | 1.2A |
Maximum Temperature | +40°C |
Output Connector | 2.1 x 5.5 x 12 mm Female Coaxial Plug with Snap-Lock, 2.5 x 5.5 x 12 mm Female Coaxial Plug with Snap-Lock |
Input Connector | IEC 320 |
Number of Outputs | 1 |
Cable Length | 1800mm |
Medical Approved | Yes |
Efficiency | 83% |
Minimum Temperature | -20°C |
Depth | 32mm |
Length | 90mm |
Width | 45mm |
Line Regulation Range | ±0.5% |
Load Regulation | ±1% |
- RS Stock No.:
- 452-8518
- Mfr. Part No.:
- 2124000043
- Brand:
- Mascot
