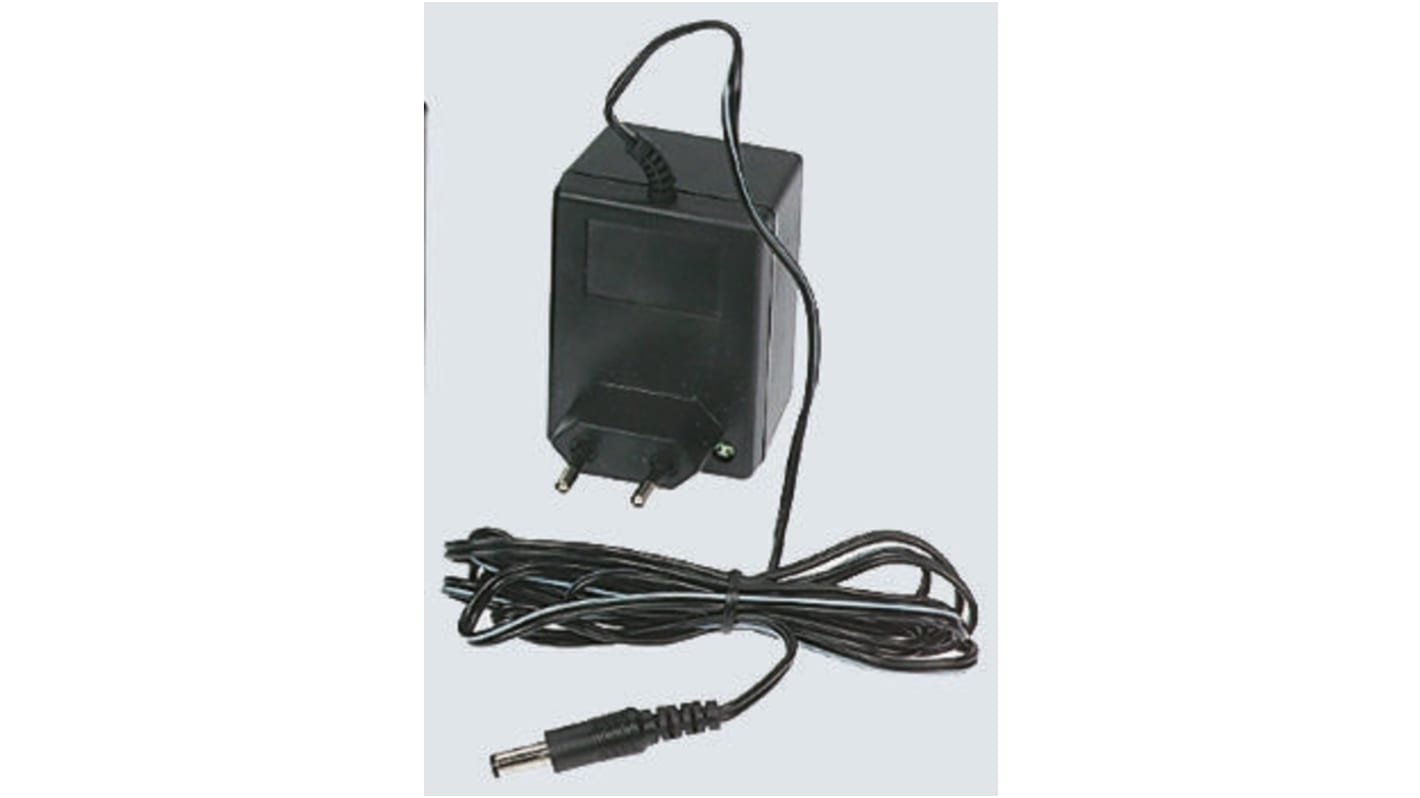

Mascot, 10.2W Plug In Power Supply 12V dc, 850mA, 1 Output Linear Power Supply, Type C

  • RS Stock No. 400-6816
  • Mfr. Part No. 9781000043
  • Brand Mascot
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

2-Pin Euro Economy Range, Unregulated & Regulated

Plugs directly into a standard 2-pin Euro socket
Regulated or unregulated output options
Double insulation and protection to IP40
Output connectors are co-axial, female (Note: Not suitable for use as battery chargers)
High quality manufacturing and testing in accordance with EN 60950
Operating temperature -10 to +40°C

Note

For Industrial Use Only, not in scope of Regulation 2009/125

Unregulated adaptors will supply higher output voltages than specified when used at less than maximum load.

Supplied with

2 Loose connectors with snap-lock features, 1x2.1mm and 1x2.5mm.

Specifications
Attribute Value
Type Linear Power Supply
Plug Type Type C
Output Voltage 12 V dc
Input Voltage 230V ac
Output Current 850mA
Maximum Temperature +40°C
Output Connector Interchangeable
Input Connector EU Plug
Number of Outputs 1
Power Rating 10.2W
Width 58mm
Depth 48mm
Minimum Temperature -10°C
Length 74mm
23 In stock for FREE next working day delivery
Price Each
£ 20.48
(exc. VAT)
£ 24.58
(inc. VAT)
Units
Per unit
1 - 4
£20.48
5 - 9
£19.46
10 - 24
£18.43
25 - 49
£17.41
50 +
£16.38
