Discontinued
- RS Stock No.:
- 175-2782
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Adapter Type | Plug-In Adapter | |
| Plug Type | 2-Pin IEC | |
| Output Voltage | 15V dc | |
| Input Voltage | 80 → 264V ac | |
| Output Current | 1.6A | |
| Maximum Temperature | +40°C | |
| Output Connector | 2.1 x 5.5 mm Connector | |
| Input Connector | 2 Pin IEC (C8) | |
| Number of Outputs | 1 | |
| Power Rating | 24W | |
| Cable Length | 6ft | |
| Efficiency | 86.2% | |
| MTBF | 100000h | |
| Energy Efficiency Level | VI | |
| Minimum Temperature | 0°C | |
| Depth | 35mm | |
| Width | 45.5mm | |
| Length | 87.6mm | |
| Series | 25HK-AY | |
| Line Regulation Range | ±2% | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Adapter Type Plug-In Adapter | ||
Plug Type 2-Pin IEC | ||
Output Voltage 15V dc | ||
Input Voltage 80 → 264V ac | ||
Output Current 1.6A | ||
Maximum Temperature +40°C | ||
Output Connector 2.1 x 5.5 mm Connector | ||
Input Connector 2 Pin IEC (C8) | ||
Number of Outputs 1 | ||
Power Rating 24W | ||
Cable Length 6ft | ||
Efficiency 86.2% | ||
MTBF 100000h | ||
Energy Efficiency Level VI | ||
Minimum Temperature 0°C | ||
Depth 35mm | ||
Width 45.5mm | ||
Length 87.6mm | ||
Series 25HK-AY | ||
Line Regulation Range ±2% | ||
- COO (Country of Origin):
- CN

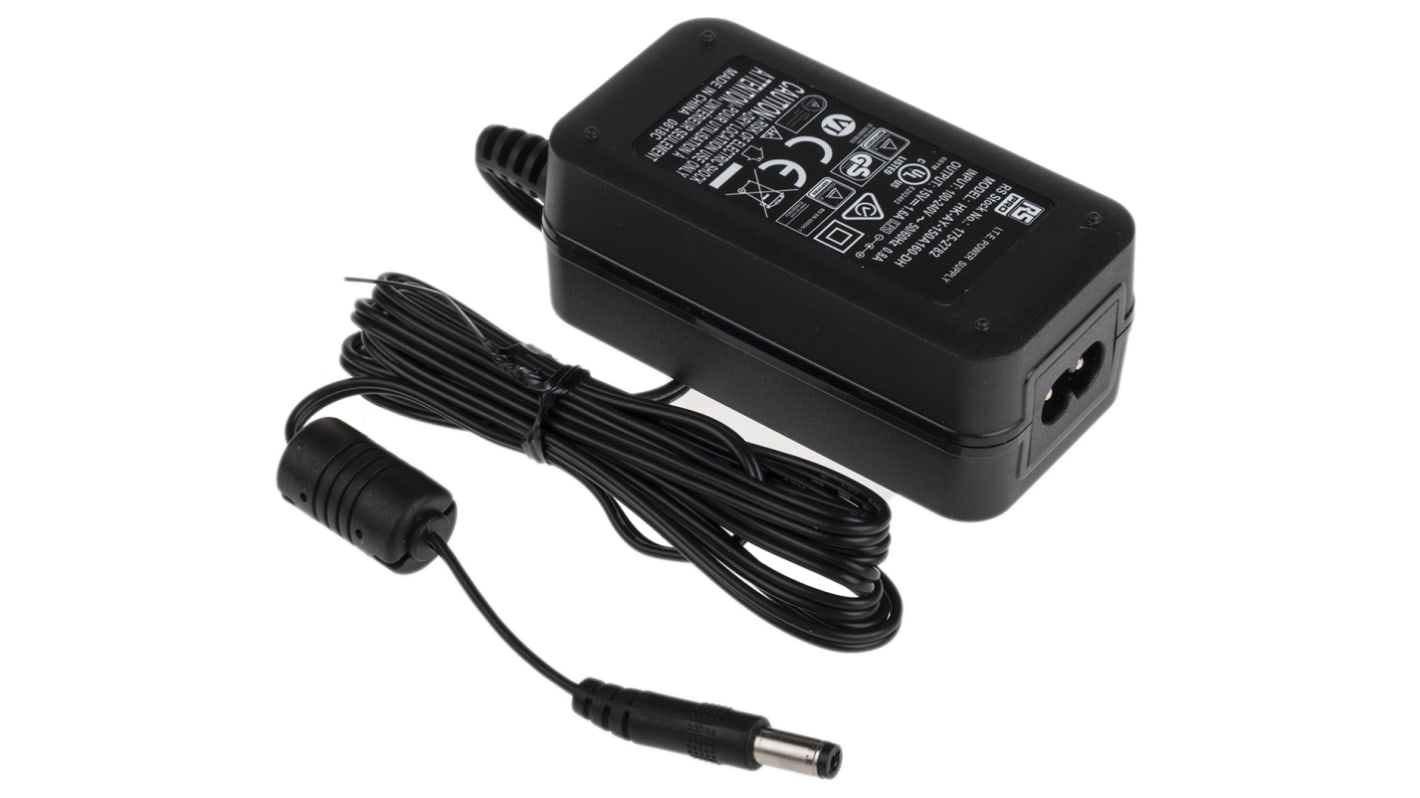

RS PRO Power Supply
The RS PRO is a 15V high-quality adapter. This range of switch-mode power supply provides 24W of continuous output power in a high-quality compact enclosure suitable for many general power applications. It has an input frequency of 47Hz to 63Hz. The input voltage range is 90V to 264VAC (wide range). The maximum input current is 800mA. It gives an efficiency of 86.2%. The output is fully regulated. Most importantly, it is short circuit protected. It is a reliable product due to high MTBF. The plug type is 2-pin IEC. It has thermal protection of latching type. The overall cable length of this desktop power supply is 87.6mm. It has a low power consumption of less than 0.10W.
Features and Benefits
• Universal AC input
• EN61000-3-2 compliant
• Overcurrent and overvoltage protection
• High-efficiency
• High MTBF
• Operating temperature ranges between 0°C and 40°C
• EN61000-3-2 compliant
• Overcurrent and overvoltage protection
• High-efficiency
• High MTBF
• Operating temperature ranges between 0°C and 40°C
Applications
• Information technology equipment (ITE) commercial
• Laptops and CCTV cameras
• Networking and peripherals
• Gaming machines
• Laptops and CCTV cameras
• Networking and peripherals
• Gaming machines
Certifications
• CCC
• CE
• CULus
• FCC
• TUV
• UL
• CE
• CULus
• FCC
• TUV
• UL
