RS PRO 6W Plug-In AC/DC Adapter 12V dc Output, 500mA Output
- RS Stock No.:
- 126-2115
- Brand:
- RS PRO
Discontinued
- RS Stock No.:
- 126-2115
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Adapter Type | Plug-In Adapter | |
| Plug Type | Global Plug | |
| Output Voltage | 12V dc | |
| Input Voltage | 100 V ac, 110 V ac, 115 V ac, 120 V ac, 127 V ac, 220 V ac, 230 V ac, 240V ac | |
| Output Current | 500mA | |
| Maximum Temperature | +45°C | |
| Output Connector | 2.1 x 5.5 x 11 mm Centre Positive | |
| Input Connector | Universal Plug | |
| Number of Outputs | 1 | |
| Power Rating | 6W | |
| Cable Length | 1.8m | |
| Medical Approved | Yes | |
| Standards Met | CE, CSA C22.2 No. 60601-1, cULus, EN 60601-1, EN 6100-3-2, EN 6100-3-3, EN 6100-4-11, EN 6100-4-2, EN 6100-4-3, EN 6100-4-4, EN 6100-4-5, EN 6100-4-6, EN 6100-4-8, IEC 60601-1, IEC 60950-1, ITE Approvals, RCM, TUV, UL/cUL Approval | |
| MTBF | >50000h | |
| Type | AC/DC Adapter | |
| Minimum Temperature | 0°C | |
| Length | 42.5mm | |
| Energy Efficiency Level | VI | |
| Load Regulation | ±5% | |
| Width | 30.7mm | |
| Depth | 73.5mm | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Adapter Type Plug-In Adapter | ||
Plug Type Global Plug | ||
Output Voltage 12V dc | ||
Input Voltage 100 V ac, 110 V ac, 115 V ac, 120 V ac, 127 V ac, 220 V ac, 230 V ac, 240V ac | ||
Output Current 500mA | ||
Maximum Temperature +45°C | ||
Output Connector 2.1 x 5.5 x 11 mm Centre Positive | ||
Input Connector Universal Plug | ||
Number of Outputs 1 | ||
Power Rating 6W | ||
Cable Length 1.8m | ||
Medical Approved Yes | ||
Standards Met CE, CSA C22.2 No. 60601-1, cULus, EN 60601-1, EN 6100-3-2, EN 6100-3-3, EN 6100-4-11, EN 6100-4-2, EN 6100-4-3, EN 6100-4-4, EN 6100-4-5, EN 6100-4-6, EN 6100-4-8, IEC 60601-1, IEC 60950-1, ITE Approvals, RCM, TUV, UL/cUL Approval | ||
MTBF >50000h | ||
Type AC/DC Adapter | ||
Minimum Temperature 0°C | ||
Length 42.5mm | ||
Energy Efficiency Level VI | ||
Load Regulation ±5% | ||
Width 30.7mm | ||
Depth 73.5mm | ||
- COO (Country of Origin):
- CN

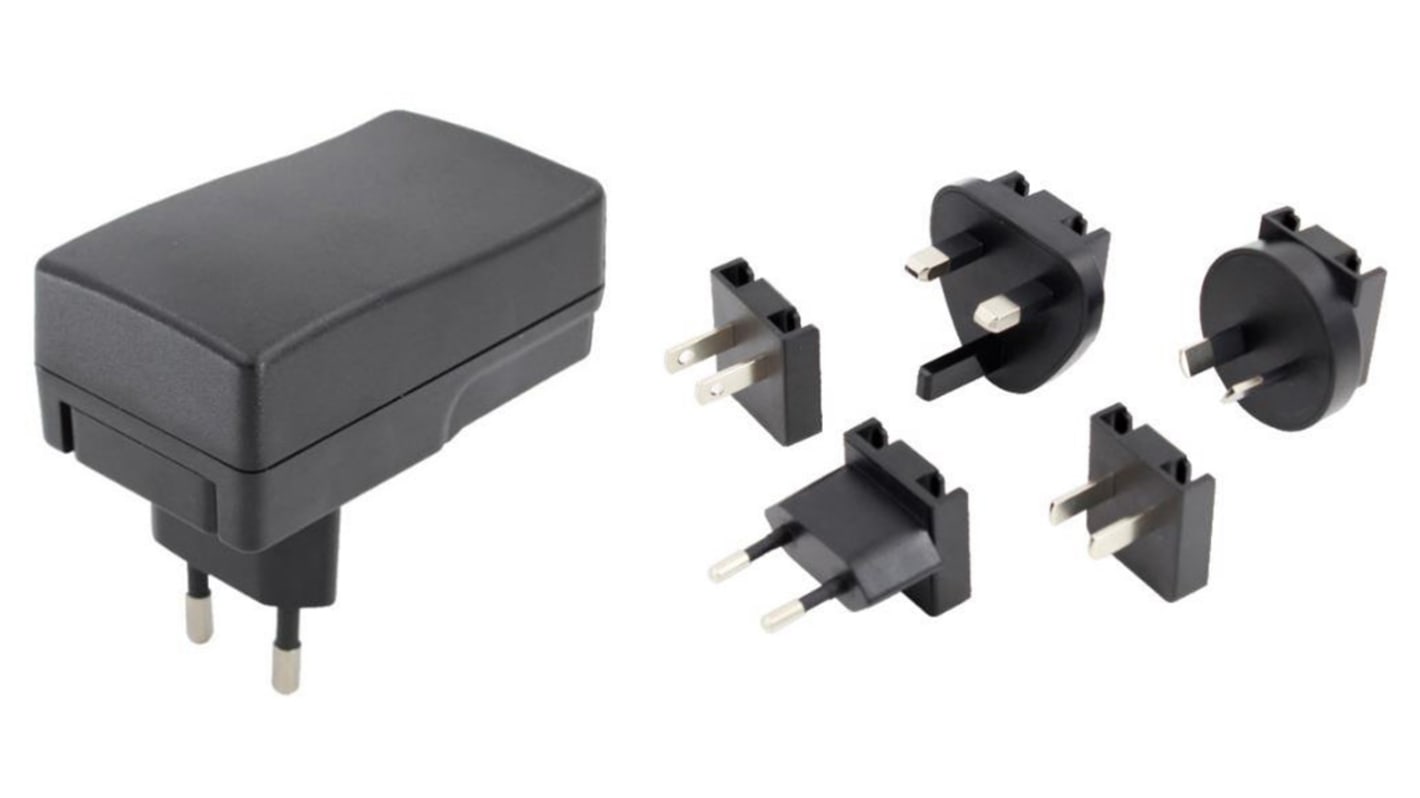

RS PRO Universal plug in power supply
From RS PRO, comes a range of high quality universal plug-in power supply. These universal power supplies are a fantastic plug in power solution as they designed for use in multiple countries. As part of our RS Pro line of power supplies, you are ensured a reliable & robust power solution. This AC/DC unit comes equipped with over voltage, over current & short circuit protection.
Features and benefits:
- USB Type A, Micro USB Type B, Mini USB Type B, 2.1 x 5.5 x 10 mm Centre Positive and 2.1 x 5.5 x 11 mm Centre positive output connectors offered as part of this range of universal power supplies.
- Supplied with 4 interchangeable mains plug-heads for use in the UK, Europe, USA, Japan and Australia
- Energy level of DOE VI
- Various cable lengths offered in this range
- Low standby power consumption
Applications
This universal adapter has a range of application use such as;
- Single-board computers
- Wireless communications
- Peripherals
- Networking
- Portable equipment
- Tablets / Smartphones
- Telecommunication equipment
Why choose RS PRO?
RS PRO is our own brand of high-quality products whilst bringing you great value for money. Our wide range of products have been engineered to meet high industry standards, so you are ensured reliable and robust solutions.
Standards
EU CoC V5 Tier 2 / Energy Star DOE VI
