Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 182-5741
- Mfr. Part No.:
- 14010
- Brand:
- BCN3D
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | BCN3D | |
| Technology | FDM | |
| Build Volume | 420 x 297 x 210mm | |
| Number of Heads | 2 | |
| Model | Sigmax R19 | |
| Multi Material Printing | Yes | |
| Dimensions L x W x H | 675 x 440 x 680mm | |
| Filament Diameter | 2.85mm | |
| Connectivity | SD Card, USB | |
| Minimum Layer Height | 0.05mm | |
| Weight | 20kg | |
Select all | ||
|---|---|---|
Brand BCN3D | ||
Technology FDM | ||
Build Volume 420 x 297 x 210mm | ||
Number of Heads 2 | ||
Model Sigmax R19 | ||
Multi Material Printing Yes | ||
Dimensions L x W x H 675 x 440 x 680mm | ||
Filament Diameter 2.85mm | ||
Connectivity SD Card, USB | ||
Minimum Layer Height 0.05mm | ||
Weight 20kg | ||
- COO (Country of Origin):
- ES

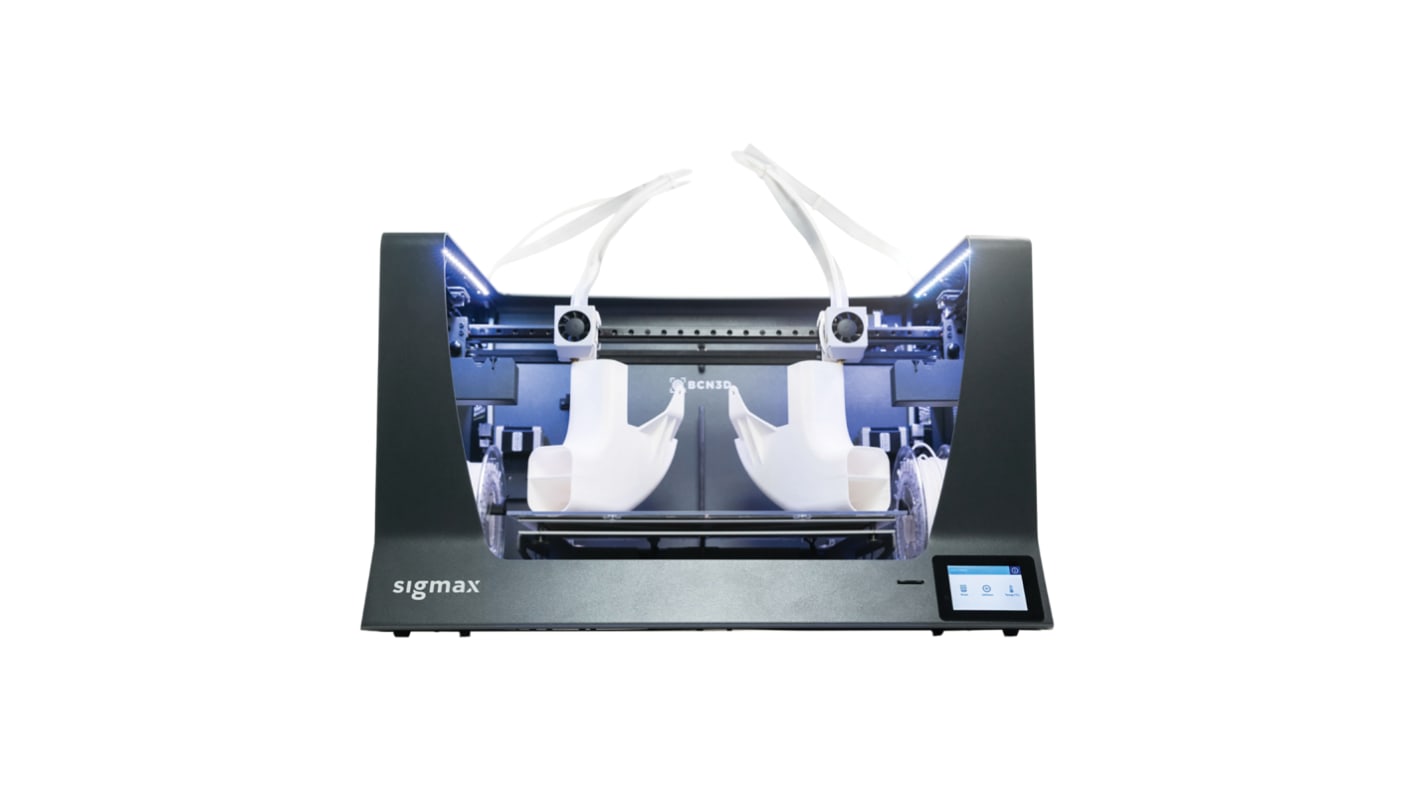

BCN3D SigmaX 3D Printer
BCN3D SigmaX is a professional 3D printer with Independent Dual Extruder and a massive printing volume, ideal for those who need to increase their production capacity and manufacture industrial-grade parts.
Features and Benefits:
• Extremely large printing volume: 42 x 29.7 x 21 cm
• Minimum Layer height only 50 microns
• Compatible with a variety of materials: PLA, ABS, PVA, TPU, Nylon, HIPS, Specials
• Mirror Mode printing allows for printing two objects at the same time
• Selection of hot-ends suitable for each moment: print either the tiniest or the biggest model, use abrasive filaments to materialize your functional part or take the best profit of the IDEX system by combining different nozzle sizes. (available separately)
• Independent Dual Extruder system allows printing 2 different materials or colours while ensures the finest surface finish. The idle tool-head remains parked, preventing the dripping of molten plastic onto the part.
• PVA Soluble Support allows for printing the most challenging parts. Just immerse the model into the water and watch the supports vanish
• Minimum Layer height only 50 microns
• Compatible with a variety of materials: PLA, ABS, PVA, TPU, Nylon, HIPS, Specials
• Mirror Mode printing allows for printing two objects at the same time
• Selection of hot-ends suitable for each moment: print either the tiniest or the biggest model, use abrasive filaments to materialize your functional part or take the best profit of the IDEX system by combining different nozzle sizes. (available separately)
• Independent Dual Extruder system allows printing 2 different materials or colours while ensures the finest surface finish. The idle tool-head remains parked, preventing the dripping of molten plastic onto the part.
• PVA Soluble Support allows for printing the most challenging parts. Just immerse the model into the water and watch the supports vanish
Typical Applications:
The BCN3D SigmaX is an ideal printer for business, manufacturing, education and home use.
Technical Specs:
• Architecture: IDEX
• Technology: FFF (Fused Filament Fabrication)
• Build Volume: 420mm x 297mm x 210mm
• Nozzle Diameters: 0,3mm / 0,4mm (standard) / 0,5mm / 0,6mm / 0,8mm / 1,0mm
• Heated Bed: PCB
• Connectivity: SD Card, USB
• Firmware: BCN3D Sigma - Marlin
• Supported Files: gcode, STL, OBJ, AMF
• Leyer height: 0,05 – 0,5mm (depending on the nozzle diameter)
• Positioning resolution (X/Y/Z): 12,5 μm / 12,5 μm / 1 μm
• Software: Cura-BCN3D, Simplify3D, Slic3r
• Filament diameter: 2.85mm
• Compatible filaments: PLA, ABS, PVA, TPU, Nylon, HIPS, Specials
• Technology: FFF (Fused Filament Fabrication)
• Build Volume: 420mm x 297mm x 210mm
• Nozzle Diameters: 0,3mm / 0,4mm (standard) / 0,5mm / 0,6mm / 0,8mm / 1,0mm
• Heated Bed: PCB
• Connectivity: SD Card, USB
• Firmware: BCN3D Sigma - Marlin
• Supported Files: gcode, STL, OBJ, AMF
• Leyer height: 0,05 – 0,5mm (depending on the nozzle diameter)
• Positioning resolution (X/Y/Z): 12,5 μm / 12,5 μm / 1 μm
• Software: Cura-BCN3D, Simplify3D, Slic3r
• Filament diameter: 2.85mm
• Compatible filaments: PLA, ABS, PVA, TPU, Nylon, HIPS, Specials
Approvals & Certification:
• CE
• FCC
• FCC
What's in the box?
• Fully Assembled & Tested BCN3D Sigmax
• 2x Spools of filament
• UK Power Cable
• Adhesion Spray
• Test Print
• Scraper
• Pliers
• Allen Keys
• SD Card
• 2x Spools of filament
• UK Power Cable
• Adhesion Spray
• Test Print
• Scraper
• Pliers
• Allen Keys
• SD Card
