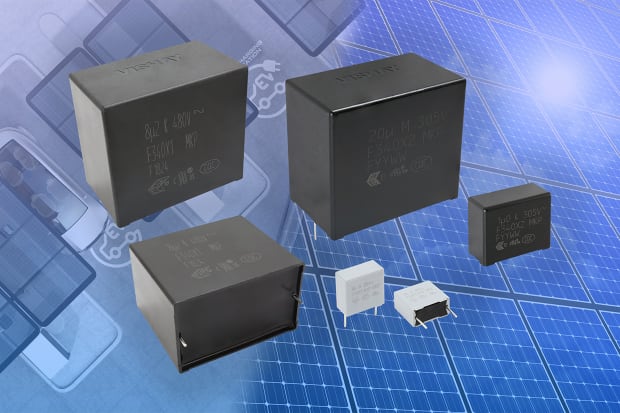

THB Grade IIIB Polypropylene Film Capacitors
Designed for high robustness under high humidity. Extreme stability on capacitance and dissipation factor. AEC-Q200 qualified.
Emerging Market of Charging Infrastructure
EV Charging from Vishay
With the number of electric vehicles (EV) on the road increasing by the day, there is a pressing need to quickly develop charging infrastructures to keep them moving.
As a result, demand for the highly reliable and energy-efficient components required for charging stations is at an all-time high.
With a wide range of solutions designed to support this rapidly expanding market, Vishay is ready to help designers move into the fast lane.
NTC Thermistors, Standard Lug Sensors
Easy mounting using ring tongue terminal. Smallest mounting space of 65 mm2 (0.1 in2). Space savings for limited surface areas.
Metal Strip Chassis Mount Resistor
Very low resistance values: 100 μΩ and 125 μΩ. High power to resistor size ratio: 36 W (600 A) in an 8518 package. Very low inductance: <5 nH.
Wire Wound Chassis Mount Resistor
Hybrid Wirewound technology. High energy / volume ratio. Easy mounting (faston connection 6.35 [0.250"]).
SiC Schottky Diodes for High Frequency Applications
Advanced merged PIN Schottky (MPS) structure Excellent surge capability and low voltage drop at high current peaks Low junction capacitance for low switching losses in active devices
Polypropylene Film Capacitor
Low ESR, high ripple current capabilities. Stable electrical parameters across temperature range. Automotive Grade DC-Link Film, AEC-Q200 compliant.
AC Line Rated Ceramic Disc Capacitors
High moisture sensitive level: MSL. Casing is made of flame-retardant epoxy resin in accordance with UL 94 V-0. 3900 Pf capacitance.

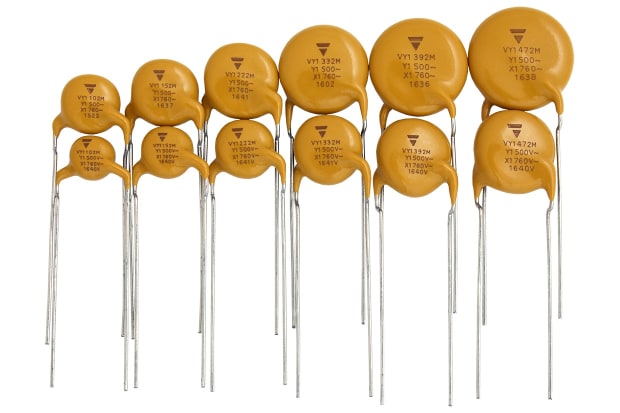

Single Layer Ceramic Capacitor (SLCC)
Capaticance range: 10 pF to 4.7 nF. Vertical (inline) kinked or straight leads. Singlelayer AC disc safety capacitor.

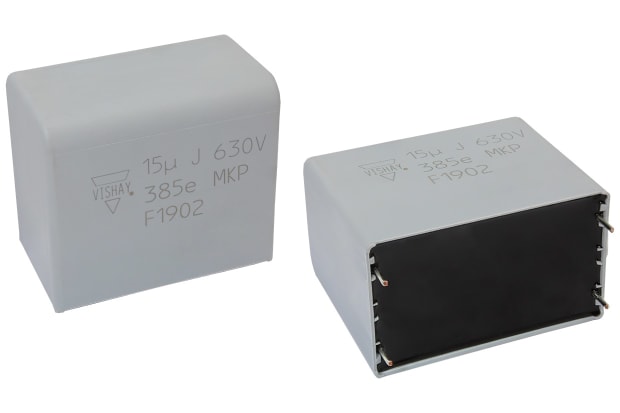

THB AC and Pulse Metallized Polypropylene Film Capacitors
High Temperature operation up to 125 C. THB 60 C 93% RH for 56 days at rated voltage. Designed for on-board and inductive charging systems.
Vishay on Mars!
Vishay is proud to contribute to the successful landing of NASA’s Perseverance Rover on Mars and the ongoing mission. Vishay’s breadth of products are the foundation that enable today’s most compelling innovations now including the Mars rover.
What is Vishay Automotive Grade?
Vishay Automotive Grade is more than a standard, more than a process. It's our culture and how we partner with customers to ensure we're meeting their needs, with zero defects, zero incidents, and zero failures.
High Performance DC-Link Capacitors
An overview of Vishay’s DC-Link Capacitors. This video covers the different DC-Link Capacitors while highlighting their features and applications.
