How to Connect Speakers: A Comprehensive Guide

Reviewed by Stephen Bettles, Technical Support Engineer (December 2024)

Are you trying to connect your speakers but uncertain where to begin? This thorough guide will provide you with all the information you need about speaker connections. Whether you are setting up a home audio system, pairing a Bluetooth speaker to your TV, or arranging a live event, knowing how to connect speakers correctly is vital for achieving optimal sound quality.

Stay tuned for the following sections, where we delve deeper into understanding speaker connections, explore various types of speaker connectors, and offer guidance on choosing the perfect connector for your setup.

When connecting speakers to audio systems, various types of speaker connectors are available. Let's explore some of the most common options:

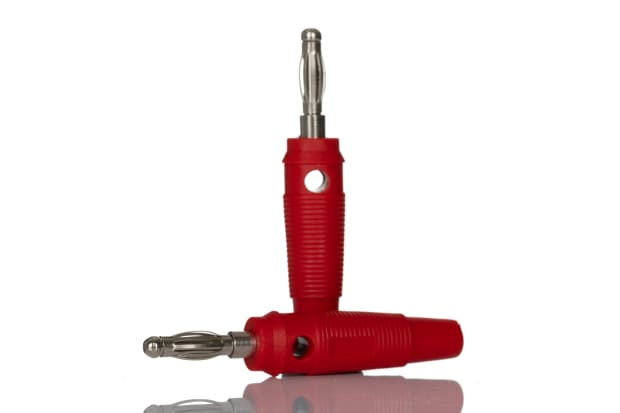

These popular connectors provide a secure and reliable connection, ensuring optimal performance in audio systems. They feature a cylindrical shape with a pin that easily inserts into the speaker terminal, creating a solid electrical contact. Their robust construction and gold-plated tips enhance durability and resistance to corrosion, which is why they are often found on high-quality audio equipment. Additionally, the color-coded design of banana plugs helps users easily identify positive and negative terminals, further simplifying the setup process.

Essential for connecting speakers to audio devices, speaker wires are typically made of copper and come in different gauges. Thicker wires offer lower resistance and better sound quality, allowing for more efficient power transfer. Additionally, using high-quality speaker wire can help reduce signal loss over longer distances, ensuring that the audio remains clear and vibrant, even in complex setups.

Commonly found on the back of speakers or audio receivers, these connectors provide a stable connection between the speaker wires and the device. Speaker terminals can be either screw terminals or spring terminals, each offering its own advantages. Screw terminals provide a secure grip that accommodates thicker wires, while spring terminals allow for quick and easy connections, making them ideal for frequent setup changes. Both types ensure reliable connectivity, minimizing the risk of signal loss or disconnection during use.

These female connectors receive the male ends of speaker wires or plugs, facilitating a seamless integration of audio components. Often found on audio equipment, they allow easy connection and disconnection of speakers, making it convenient to swap out equipment or reconfigure setups without hassle.

These connectors enable you to connect multiple speakers to a single audio source. They come in various configurations, such as 1-to-2, 1-to-4, or even more. Speaker splitters are useful for multi-room audio setups or when you want to expand your sound system.

Commonly used in Europe for audio connections, DIN connectors have a circular design with multiple pins and are often found on older audio equipment. Their robust construction and ability to support various audio formats make them versatile, although they are gradually being replaced by more modern connectors. Despite this, DIN connectors remain valued for their reliability and are still used in certain applications where legacy equipment is involved.

Widely used in professional audio setups, SpeakOn connectors provide a secure locking connection and are known for their durability and high-power handling capabilities. Their design minimizes the risk of accidental disconnection, ensuring consistent performance during live events or in studio environments.

Also known as phone plugs or TRS connectors, audio jacks are commonly used for headphones, speakers, and other audio devices. They come in different sizes, with the 3.5mm and 6.35mm (1/4 inch) jacks being the most common.

Common issues with speaker connections include loose connections, reversed polarity, and impedance mismatch. Check out what each of these issues mean below:

• Loose connections - can cause intermittent sound or complete audio dropout.
• Reversed polarity - occurs when the positive and negative terminals are connected incorrectly, resulting in phase cancellation and poor sound quality.
• Impedance mismatch - happens when the speaker impedance does not match the amplifier's output impedance, leading to inefficient power transfer and potential damage to the amplifier.

When setting up your audio system, selecting the right speaker connector is crucial for optimal performance. Whether you're a professional sound engineer or an audio enthusiast, here are some important considerations to keep in mind:

Speaker Wire Lengths and Gauges: The length and gauge of the speaker wire you choose can significantly impact the quality of sound transmission. Generally, shorter wire lengths and thicker gauges result in less resistance and better audio fidelity. It's important to select a wire that matches the power requirements of your speakers and the distance between your amplifier and speakers.

Using Amplifiers and Receivers: Speaker connectors come in various types, including banana plugs, spade connectors, and binding posts. These connectors are designed to securely connect your speakers to amplifiers or receivers. Banana plugs offer a convenient plug-and-play solution, while spade connectors provide a more secure connection. Binding posts are versatile and can accommodate different wire types. Consider the compatibility of your speakers and audio equipment when choosing the appropriate connector type.

Maintenance and Troubleshooting Tips: To ensure a reliable speaker connection, regular maintenance is essential. Check the connectors for any signs of corrosion or loose connections and clean them if necessary. If you experience issues with your speaker connection, troubleshoot by checking the wiring, connectors, and amplifier settings. It's also advisable to consult the user manual of your audio equipment for specific troubleshooting steps.
