Fibox Euronord Series Unpainted Aluminium Enclosure, IP66, IP67, IP68, Unpainted Lid, 125 x 124 x 81mm
- RS Stock No.:
- 738-9278
- Mfr. Part No.:
- ALN 121208 complete UP
- Brand:
- Fibox
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£51.03
(exc. VAT)
£61.24
(inc. VAT)
- RS Stock No.:
- 738-9278
- Mfr. Part No.:
- ALN 121208 complete UP
- Brand:
- Fibox
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Fibox | |
| Body Material | Aluminium | |
| External Length | 125 mm | |
| External Height | 81 mm | |
| External Width | 124 mm | |
| External Dimensions | 125 x 124 x 81mm | |
| IP Rating | IP66, IP67, IP68 | |
| Colour | Unpainted | |
| Lid Colour | Unpainted | |
| Shielded | No | |
| Series | Euronord | |
Select all | ||
|---|---|---|
Brand Fibox | ||
Body Material Aluminium | ||
External Length 125 mm | ||
External Height 81 mm | ||
External Width 124 mm | ||
External Dimensions 125 x 124 x 81mm | ||
IP Rating IP66, IP67, IP68 | ||
Colour Unpainted | ||
Lid Colour Unpainted | ||
Shielded No | ||
Series Euronord | ||

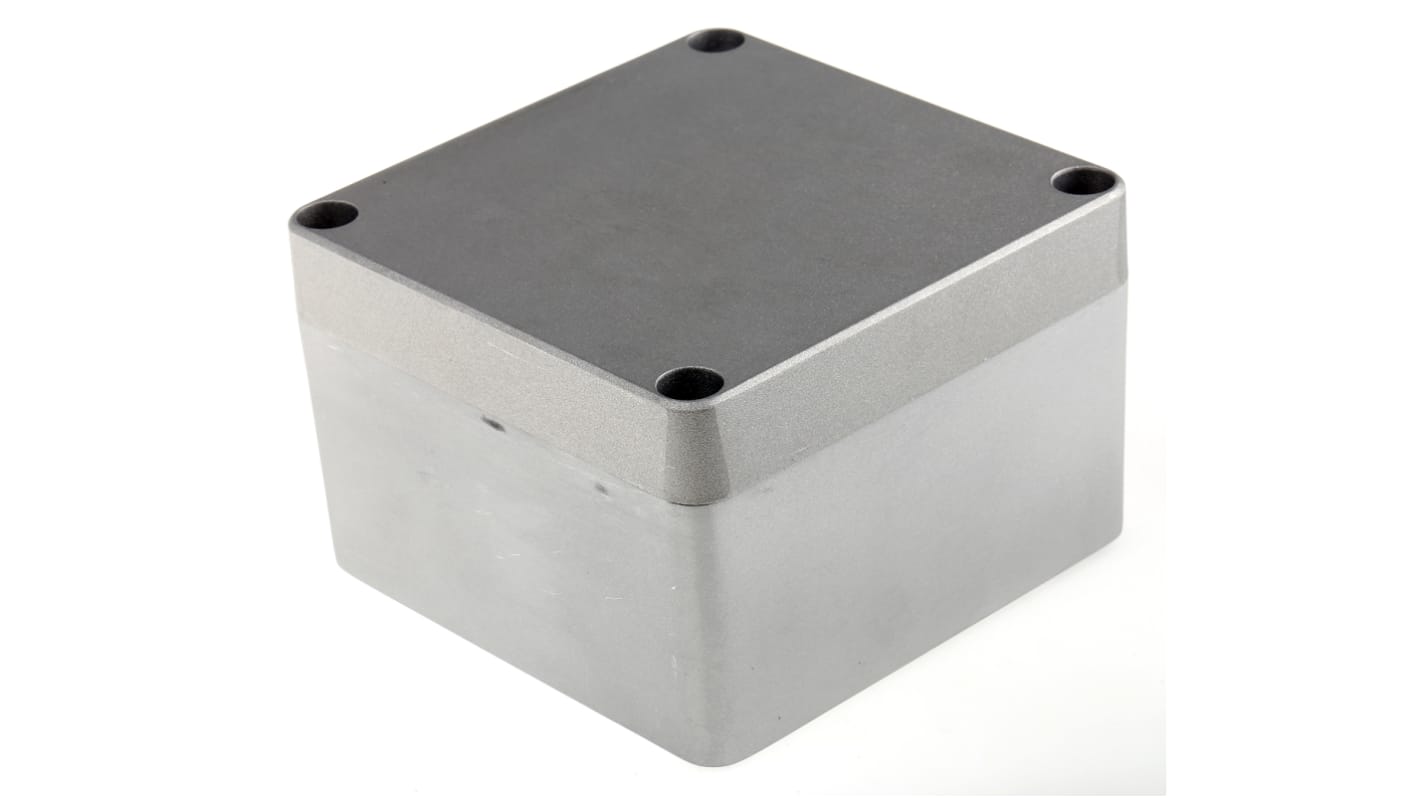

FIBOX Euronord Aluminium Enclosure
Euronord range of enclosures from Fibox are designed to house DIN Rail-mounted terminal blocks and various types of sensors. The enclosure lid has a sealing gasket, and can be easily sealed with a single 90° turn on the quick-lock stainless steel screw.
Features and Benefits
• Temperature range -50°C to +80°C (continuous), -50 to +140°C (short term)
• Designed to house DIN Rail-mounted terminal blocks and various types of sensors
• IP 66/67
• Raw, not painted
• Designed to house DIN Rail-mounted terminal blocks and various types of sensors
• IP 66/67
• Raw, not painted
(IP) Ingress Protection and what it means?
IP rating classifies the degrees of protection provided against the intrusion of solid objects (including body parts like hands and fingers), dust, accidental contact, and water in electrical enclosures.
FAQ’s
Can the box be used outside?
• Yes, Euronord series enclosures have IP66, IP67 & IP68 rating
Can you purchase mounting plates separately
• No, Euronord mounting plates are not available separately
• Yes, Euronord series enclosures have IP66, IP67 & IP68 rating
Can you purchase mounting plates separately
• No, Euronord mounting plates are not available separately
What is supplied?
• Enclosure, Base with screws for mounting plate/ DIN Rail, cover with PUR or Neoprene gasket and stainless steel cover screws
Standards
EN 62208:2003 (50298:1998). EN 60950.
Approvals
UL Type 1, 4, 4X, 12, 13 (USA); IP 67/IP 66 (EURO); IEC 529 (Others)
