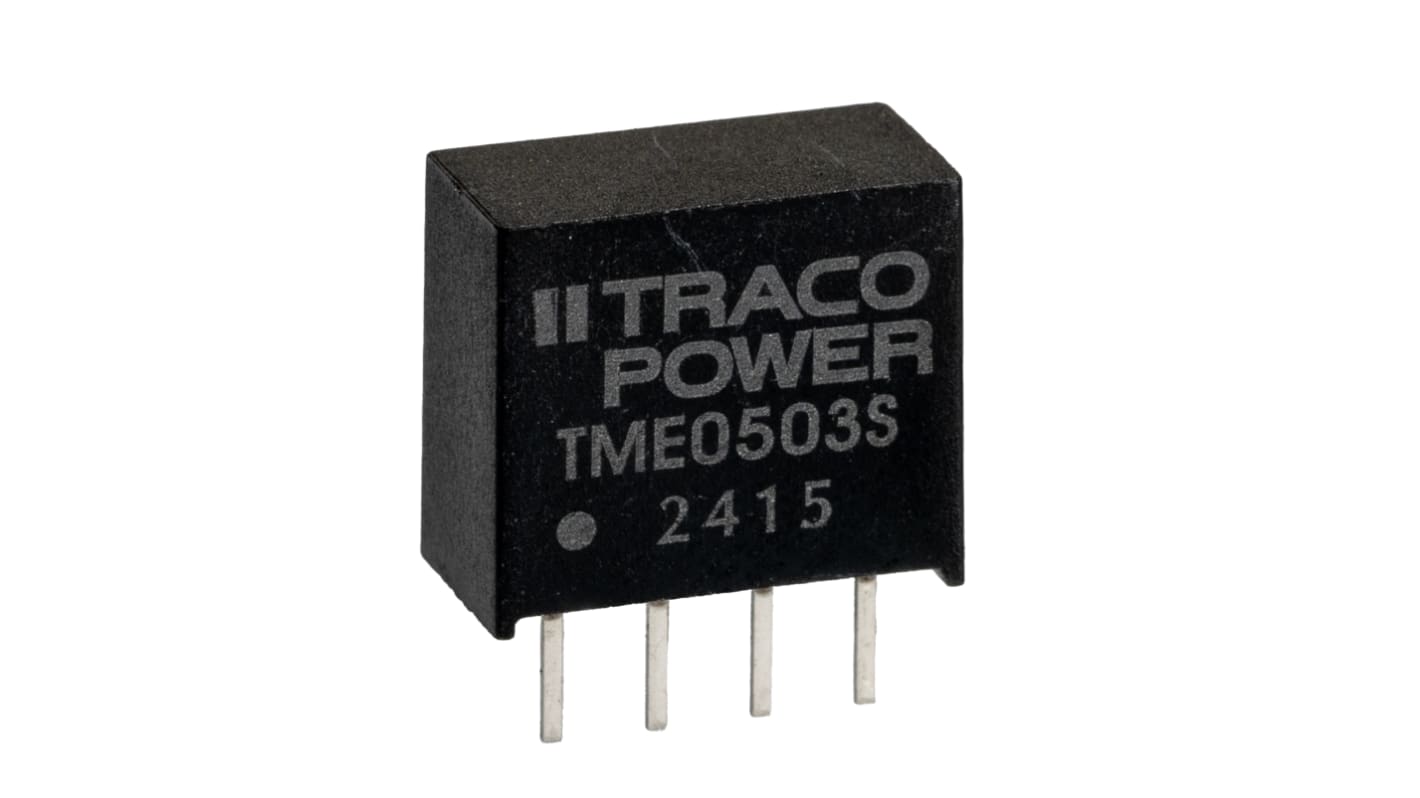

TRACOPOWER TME DC-DC Converter, 3.3V dc/ 260mA Output, 4.5 → 5.5 V dc Input, 1W, Through Hole, +85°C Max Temp
- RS Stock No.:
- 706-5449P
- Mfr. Part No.:
- TME 0503S
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal 5 units (supplied in a tube)*
£31.50
(exc. VAT)
£37.80
(inc. VAT)
Stock information currently inaccessible
Units | Per unit |
|---|---|
| 5 - 9 | £6.30 |
| 10 - 24 | £6.10 |
| 25 - 49 | £5.85 |
| 50 + | £5.59 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£6.49
(exc. VAT)
£7.79
(inc. VAT)
- RS Stock No.:
- 706-5449P
- Mfr. Part No.:
- TME 0503S
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | 3.3V dc | |
| Input Voltage Range | 4.5 → 5.5 V dc | |
| Power Rating | 1W | |
| Input Voltage Nominal | 5 V dc | |
| Output Current | 260mA | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Package | SIP 4 | |
| Isolation Voltage | 1kV dc | |
| Depth | 10.2mm | |
| Width | 6.1mm | |
| Length | 11.5mm | |
| Series | TME | |
| Load Regulation | ±10% | |
| Efficiency | 72% | |
| Minimum Temperature | -40°C | |
| Maximum Temperature | +85°C | |
Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage 3.3V dc | ||
Input Voltage Range 4.5 → 5.5 V dc | ||
Power Rating 1W | ||
Input Voltage Nominal 5 V dc | ||
Output Current 260mA | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Package SIP 4 | ||
Isolation Voltage 1kV dc | ||
Depth 10.2mm | ||
Width 6.1mm | ||
Length 11.5mm | ||
Series TME | ||
Load Regulation ±10% | ||
Efficiency 72% | ||
Minimum Temperature -40°C | ||
Maximum Temperature +85°C | ||
- COO (Country of Origin):
- TW
TRACOPOWER TME Series DC-DC Converter, 4.5 to 5.5V DC Input Voltage Range, 1W Power Rating - TME 0503S
This isolated DC-DC converter provides an efficient power source for various applications, offering reliable voltage conversion. It is designed to step down 5V to 3.3V, making it suitable for devices that require a stable 3.3V output. The compact PCB mount power supply minimises footprint while adhering to essential performance standards. With high efficiency and robust isolation, it supports applications across automation, electronics, and various industrial sectors.
Features & Benefits
• 1W output power with 260mA current
• Operates effectively within -40 to +85°C temperature range
• Compliance with RoHS standards for environmental safety
• Compact SIP package design optimises board space
• Operates effectively within -40 to +85°C temperature range
• Compliance with RoHS standards for environmental safety
• Compact SIP package design optimises board space
Applications
• Ideal for circuit boards requiring isolated power sources
• Utilised in telecommunications for stable voltage supply
• Applicable in medical devices that need high voltage isolation
• Utilised in telecommunications for stable voltage supply
• Applicable in medical devices that need high voltage isolation
What is the typical efficiency of this device?
The device operates at an efficiency rate of 72% under normal conditions.
Can it handle variable loads effectively?
Yes, it maintains stable output despite variations in load within specified limits.
Is this suitable for outdoor applications?
It is designed for indoor use, particularly in controlled environments.
What protective features does it include?
It features short circuit protection and can recover automatically.
How does it compare to similar devices in terms of size?
Its compact design requires only 0.7cm² of board space, making it space-efficient.
