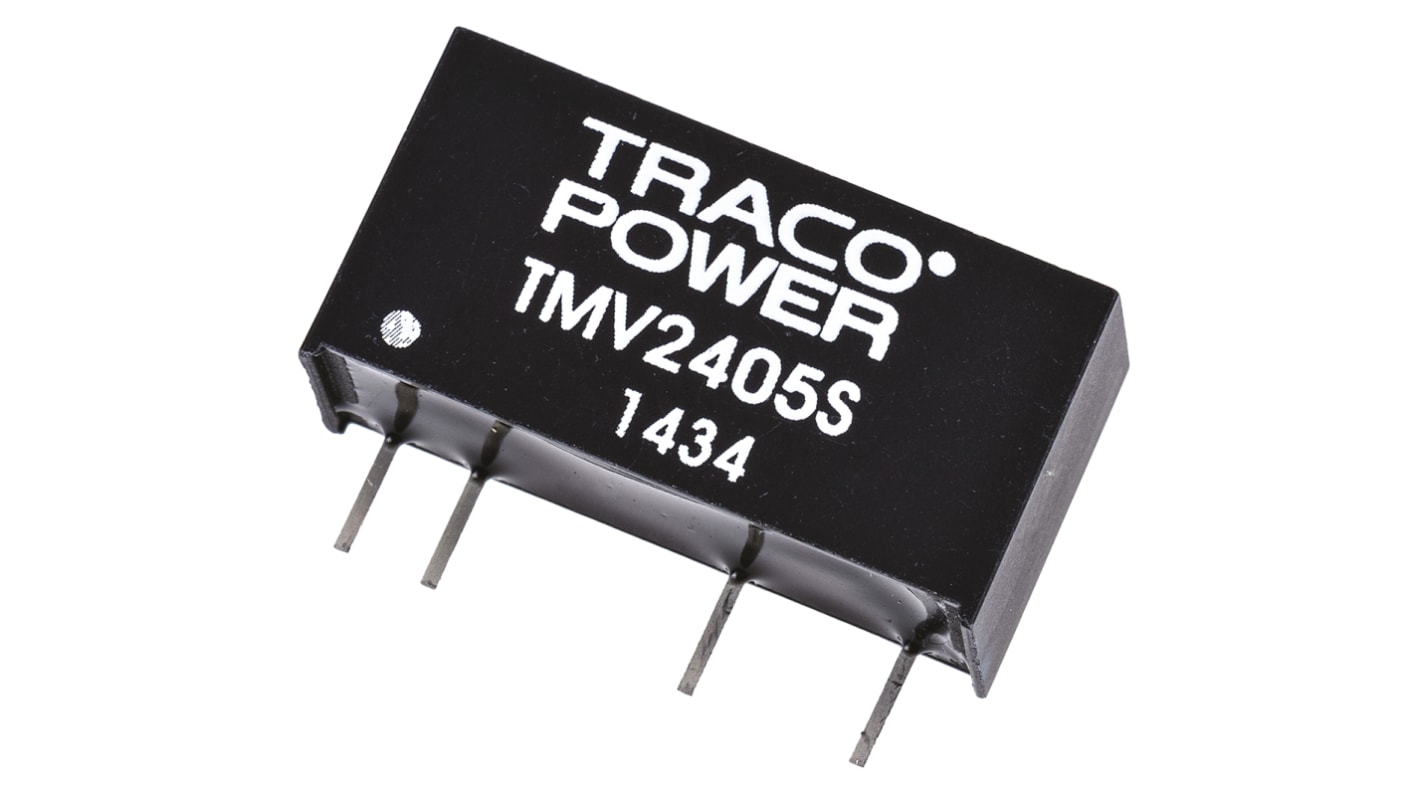

TRACOPOWER TMV DC-DC Converter, 5V dc/ 200mA Output, 21.6 → 26.4 V dc Input, 1W, Through Hole, +85°C Max Temp
- RS Stock No.:
- 666-4048
- Mfr. Part No.:
- TMV 2405S
- Brand:
- TRACOPOWER
41 In stock - FREE next working day delivery available
Added
Price Each
£5.05
(exc. VAT)
£6.06
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £5.05 |
| 5 - 9 | £4.90 |
| 10 - 24 | £4.75 |
| 25 - 49 | £4.55 |
| 50 + | £4.34 |
- RS Stock No.:
- 666-4048
- Mfr. Part No.:
- TMV 2405S
- Brand:
- TRACOPOWER
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
Traco 1W SIP Single/Dual Output Unregulated Isolated DC-DC Converter - TMV Series
The Traco Power TMV series is a range of miniature isolated, 1 Watt, DC/DC converters in a SIP package. The SMD technology of these isolated converters makes it possible to offer a product with high performance at low cost. The TMV DC-DC converters require only 1.2 cm2 board space and are the perfect solution for space critical applications for board level power distribution.
Single-in-line (SIP) package
Isolated single and dual output models
I/O isolation 3000Vdc
High efficiency up to 81%
Operating temperature range –40°C to +85°C
Pin-compatible with other manufacturers
100% Burn-in (8 h)
Lead free design, RoHS compliant
Isolated single and dual output models
I/O isolation 3000Vdc
High efficiency up to 81%
Operating temperature range –40°C to +85°C
Pin-compatible with other manufacturers
100% Burn-in (8 h)
Lead free design, RoHS compliant
Specifications
Attribute | Value |
|---|---|
| Output Voltage | 5V dc |
| Input Voltage Range | 21.6 → 26.4 V dc |
| Power Rating | 1W |
| Input Voltage Nominal | 24 V dc |
| Output Current | 200mA |
| Mounting Type | Through Hole |
| Isolated | Yes |
| Number of Outputs | 1 |
| Package | SIP 7 |
| Isolation Voltage | 3kV dc |
| Length | 19.5mm |
| Width | 6.1mm |
| Depth | 10.2mm |
| Series | TMV |
| Load Regulation | ±10% |
| Efficiency | 71% |
| Minimum Temperature | -40°C |
| Maximum Temperature | +85°C |
