Moflash LEDA100 Series Amber Buzzer Beacon, 20 → 30 V, IP65, Surface Mount, Wall Mount, 80dB at 1 Metre
- RS Stock No.:
- 865-1631
- Mfr. Part No.:
- LEDA100-02-01
- Brand:
- Moflash
25 In stock - FREE next working day delivery available
4 available from Europe for delivery within 1 working day(s).
Added
Price Each
£53.11
(exc. VAT)
£63.73
(inc. VAT)
Units | Per unit |
1 - 9 | £53.11 |
10 - 14 | £50.40 |
15 + | £48.75 |
- RS Stock No.:
- 865-1631
- Mfr. Part No.:
- LEDA100-02-01
- Brand:
- Moflash
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details

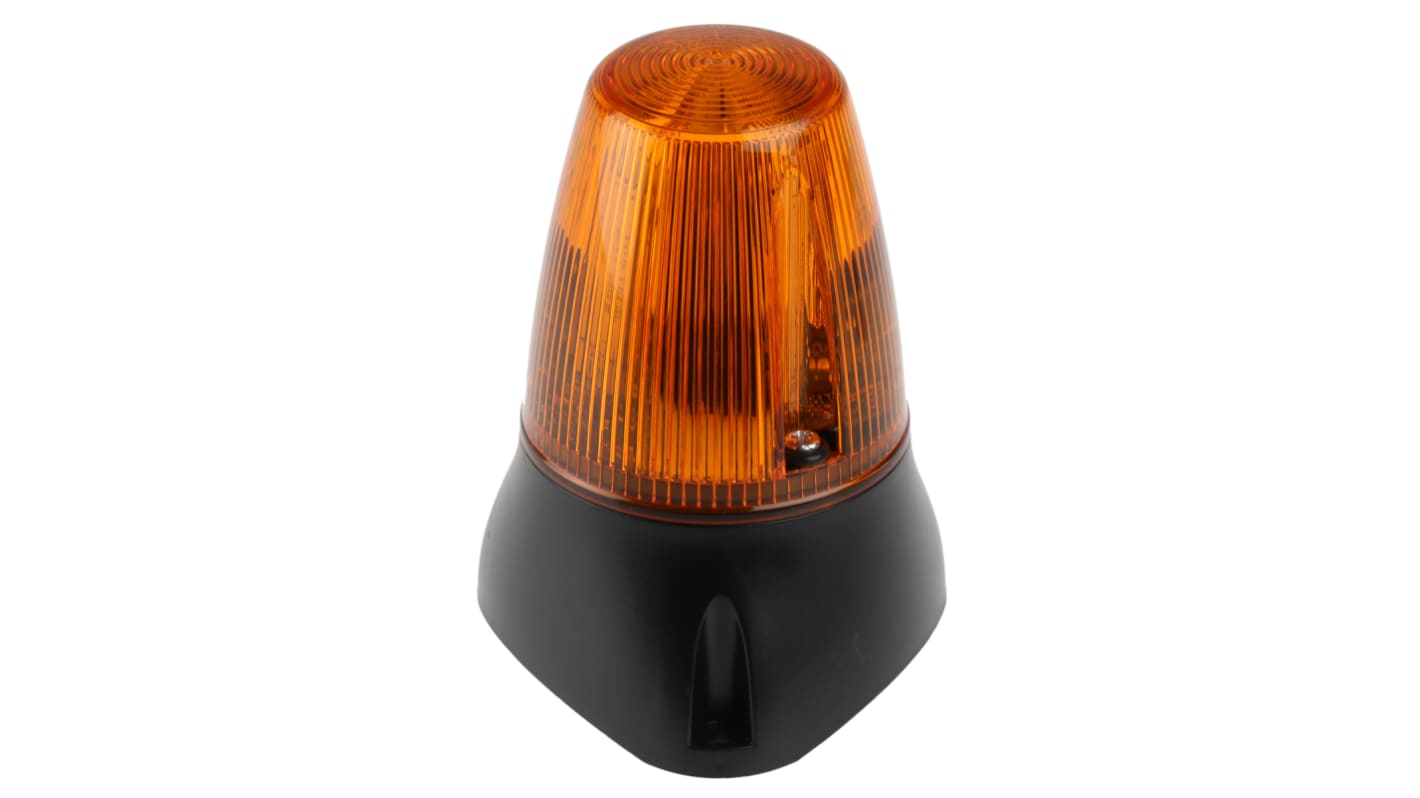

Moflash Amber LED Buzzer Beacon, 80dB, 20 to 30 V AC/DC - LEDA100 Series - LEDA100-02-01
This beacon from Moflash combines an amber-coloured LED (light-emitting diode) lamp with a piezo buzzer to produce warning signals in commercial and industrial applications. For versatility, you can choose between a static mode and a flashing mode by using a jumper link on the printed circuit board (PCB).
The device is also designed to accommodate a third wire that lets you switch from the preset static mode to the flashing mode. It's a useful safety device in workplaces such as factories and production plants.
The device is also designed to accommodate a third wire that lets you switch from the preset static mode to the flashing mode. It's a useful safety device in workplaces such as factories and production plants.
ABS (acrylonitrile butadiene styrene) base material for resistance to impact and corrosion
UV (ultraviolet) stable polycarbonate lens for even spread of light rays
IP (ingress protection) 65 rated for resistance to dust and low-pressure water jets
Broad operating temperature range of -25°C to +55°C for use in demanding conditions
UV (ultraviolet) stable polycarbonate lens for even spread of light rays
IP (ingress protection) 65 rated for resistance to dust and low-pressure water jets
Broad operating temperature range of -25°C to +55°C for use in demanding conditions
Application Information
Crane construction
Switch cabinet construction
Industrial vehicles
Switch cabinet construction
Industrial vehicles
What mounting options does this beacon buzzer have?
This buzzer can be surface or wall-mounted to suit the needs of your application.
Can the buzzer be controlled independently of the light?
No, the buzzer is designed to operate in sync with the LED lamp.
Specifications
Attribute | Value |
---|---|
Supply Voltage | 20 → 30 V |
Lens Colour | Amber |
Mounting Style | Surface Mount, Wall Mount |
Current Type | AC, DC |
Light Effect | Flashing |
Sounder Type | Buzzer |
Decibels at 1 Metre | 80dB |
Series | LEDA100 |
Bulb Type | LED |
Housing Colour | Black |
Maximum Decibel | 80dB |
IP Rating | IP65 |
Standards Met | CE Certified UKCA |
Housing Material | ABS, PC |
Maximum Temperature | +55°C |
Special Features | Dust Proof, Low Current Consumption, Water Resistant |
Minimum Temperature | -25°C |
