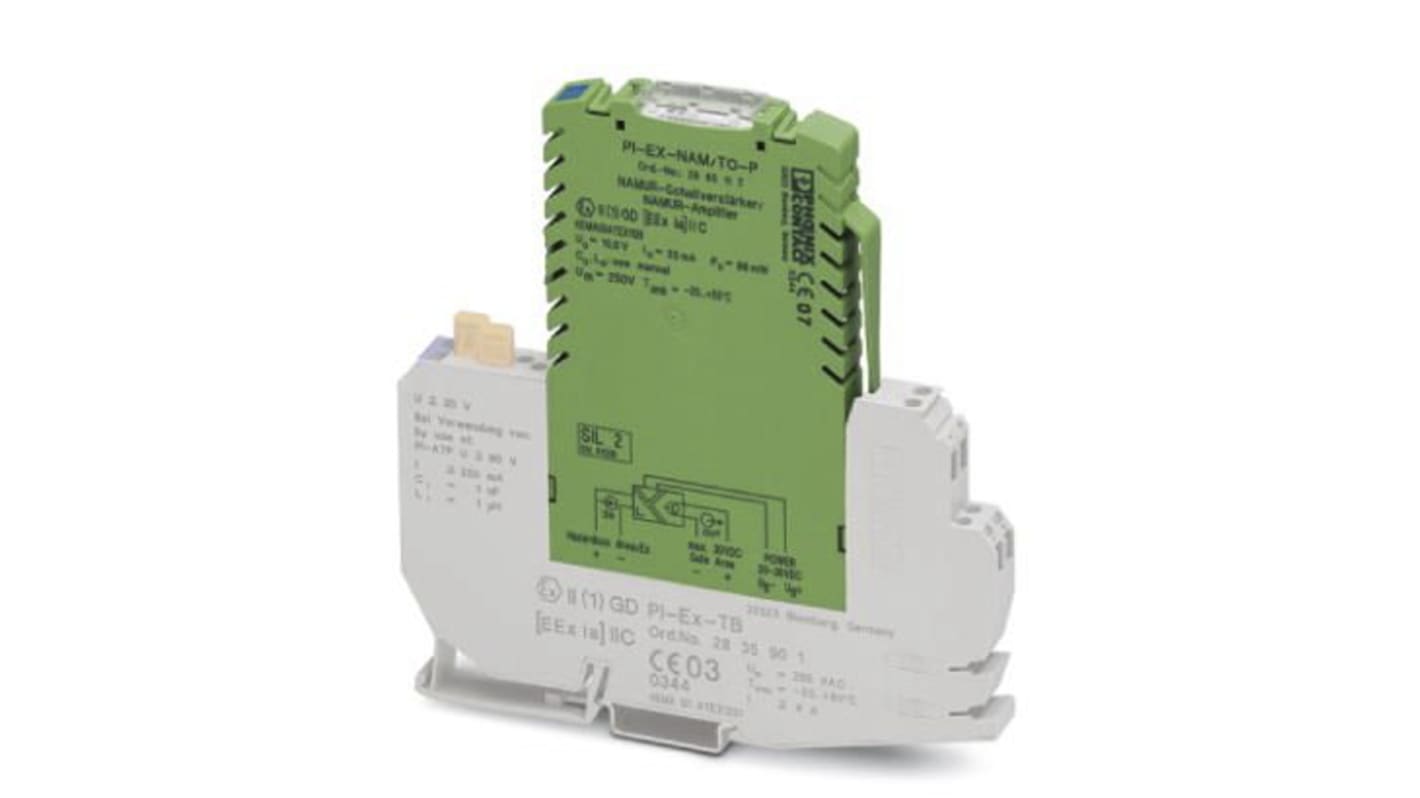

Phoenix Contact 1 Channel Galvanic Barrier, Isolating Amplifier, NAMUR Sensor, Switch Input, Transistor Output
- RS Stock No.:
- 709-9612
- Mfr. Part No.:
- 2865117
- Brand:
- Phoenix Contact
Discontinued product
Alternative
Phoenix Contact 1 Channel Galvanic Barrier, Isolating Amplifier, NAMUR Sensor, Switch Input, Transistor Output, ATEX
£174.69
Each
RS Stock No.: 751-1324
- RS Stock No.:
- 709-9612
- Mfr. Part No.:
- 2865117
- Brand:
- Phoenix Contact
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
Ex-i Binary Input: NAMUR Isolation Amplifiers
Ex-i binary input: NAMUR isolation amplifiers
For operating proximity sensors and switches in Ex areas
Signals are transmitted to a safe area
Transistor output (passive), line fault detection
Galvanic 3-way isolation
For operating proximity sensors and switches in Ex areas
Signals are transmitted to a safe area
Transistor output (passive), line fault detection
Galvanic 3-way isolation
Group and Category
NAMUR recommendation NE 21, CE, Ex II (1) GD [EEx ia] IIC, Ex II 3 G Ex nA II T4 X, SIL 2 according to EN 61508,
Certificate No.
KEMA-EX, PxC-EX
Specifications
Attribute | Value |
|---|---|
| Number of Channels | 1 |
| Module Type | Isolating Amplifier |
| Barrier Type | Galvanic Barrier |
| Output Signal Type | Transistor |
| Maximum Voltage | 250V ac |
| Input Signal Type | NAMUR Sensor, Switch |
| Supply Voltage | 20 → 30V dc |
| Maximum Current | 33mA |
| Maximum Operating Temperature | +60°C |
| Minimum Operating Temperature | -20°C |
| Safety Current Maximum | 33mA |
| Safety Voltage Maximum | 250 V ac |
| Series | PI-EX-NAM/TO-P |
| Operating Temperature Range | -20 → +60°C |
