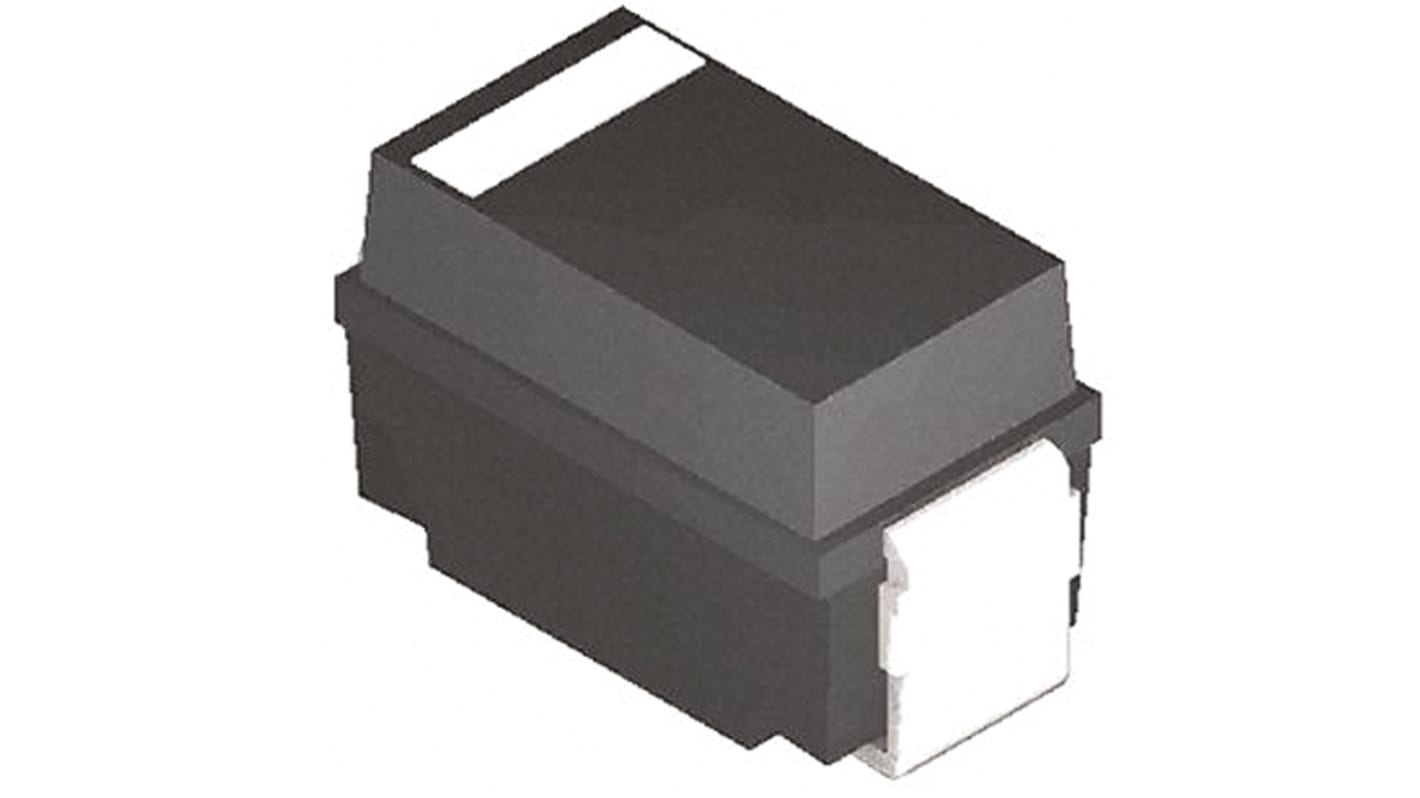

Vishay, 16V Zener Diode 5% 1 W SMT 2-Pin DO-214AC
- RS Stock No.:
- 819-3857
- Mfr. Part No.:
- SML4745A-E3/61
- Brand:
- Vishay
1320 In stock - FREE next working day delivery available
Added
Price Each (In a Pack of 20)
£0.31
(exc. VAT)
£0.37
(inc. VAT)
| Units | Per unit | Per Pack* |
| 20 - 180 | £0.31 | £6.20 |
| 200 - 480 | £0.295 | £5.90 |
| 500 - 980 | £0.28 | £5.60 |
| 1000 - 1980 | £0.264 | £5.28 |
| 2000 + | £0.248 | £4.96 |
| *price indicative | ||
- RS Stock No.:
- 819-3857
- Mfr. Part No.:
- SML4745A-E3/61
- Brand:
- Vishay
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Zener Diodes 1W, SML47xxA Series, Vishay Semiconductor
Surface Mount Zener Diodes
Plastic package has underwriters laboratory (UL) flammability classification 94 V-0
For surface mounted applications
Low Zener impedance
Low regulation factor
AEC-Q101 qualified
Plastic package has underwriters laboratory (UL) flammability classification 94 V-0
For surface mounted applications
Low Zener impedance
Low regulation factor
AEC-Q101 qualified
Zener Diodes, Vishay Semiconductor
Specifications
Attribute | Value |
|---|---|
| Diode Configuration | Single |
| Nominal Zener Voltage | 16V |
| Number of Elements per Chip | 1 |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 1 W |
| Package Type | DO-214AC (SMA) |
| Zener Type | General Purpose |
| Zener Voltage Tolerance | 5% |
| Pin Count | 2 |
| Test Current | 15.5mA |
| Maximum Zener Impedance | 16Ω |
| Maximum Reverse Leakage Current | 5µA |
| Dimensions | 4.5 x 2.79 x 2.087mm |
| Maximum Operating Temperature | +150 °C |
