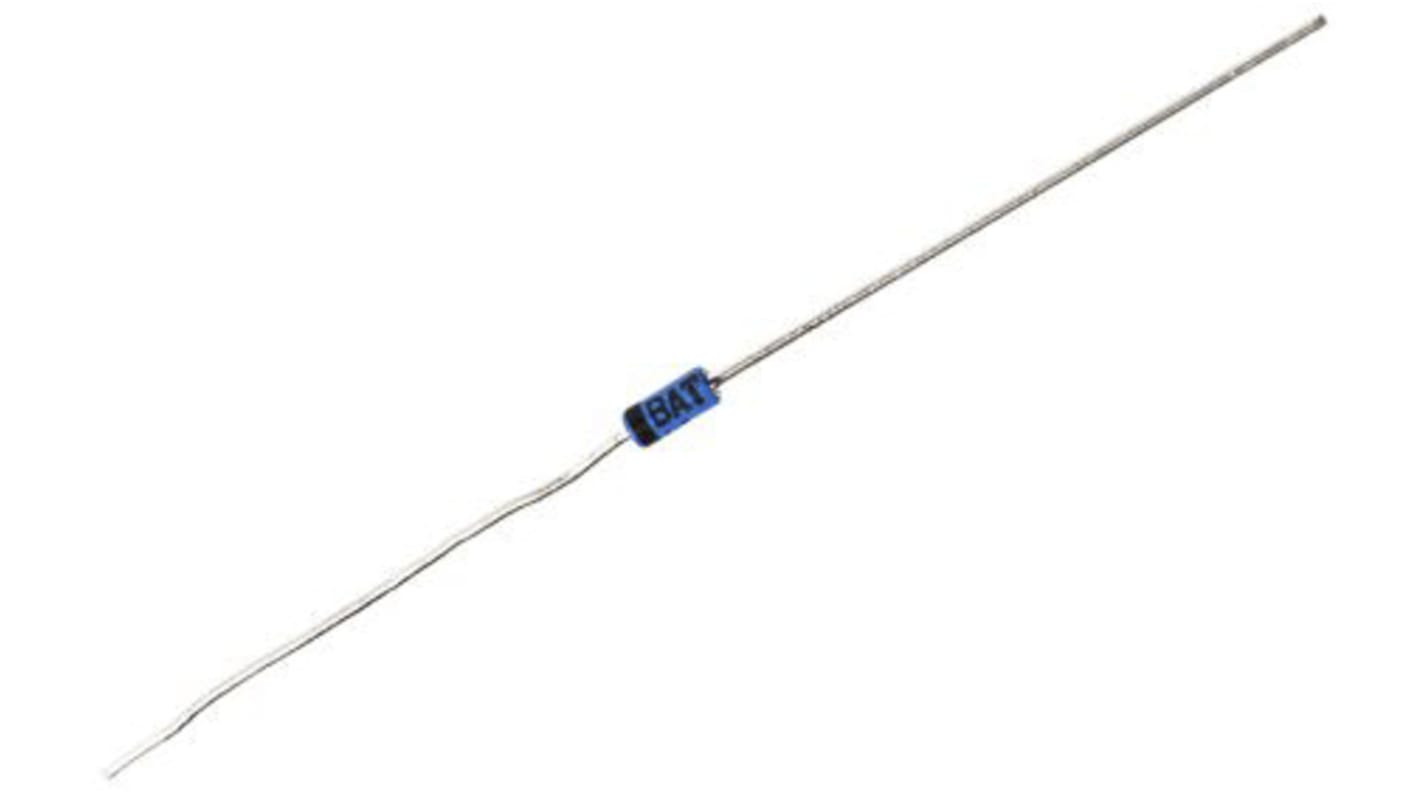

onsemi, 5.6V Zener Diode 5% 500 mW Through Hole 2-Pin DO-35
- RS Stock No.:
- 184-4755
- Mfr. Part No.:
- 1N5232B
- Brand:
- onsemi
4250 In stock - FREE next working day delivery available
Added
Price Each (In a Pack of 250)
£0.037
(exc. VAT)
£0.044
(inc. VAT)
| Units | Per unit | Per Pack* |
| 250 - 750 | £0.037 | £9.25 |
| 1000 - 4750 | £0.021 | £5.25 |
| 5000 - 9750 | £0.02 | £5.00 |
| 10000 - 49750 | £0.016 | £4.00 |
| 50000 + | £0.014 | £3.50 |
| *price indicative | ||
- RS Stock No.:
- 184-4755
- Mfr. Part No.:
- 1N5232B
- Brand:
- onsemi
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
General Data Applicable to all series in this group.
500 Milliwatt
Hermetically Sealed
Glass Silicon Zener Diodes
Complete Voltage Range - 1.8 to 200 Volts
DO-204AH Package - Smaller than Conventional DO-204AA Package
Double Slug Type Construction
Metallurgically Bonded Construction
Mechanical Characteristics:
CASE: Double slug type, hermetically sealed glass
MAXIMUM LEAD TEMPERATURE FOR SOLDERING PURPOSES: 230°C, 1/16", from case for 10 seconds
FINISH: All external surfaces are corrosion resistant with readily solderable leads
POLARITY: Cathode indicated by color band. When operated in zener mode, cathode will be positive with respect to anode
MOUNTING POSITION: Any
WAFER FAB LOCATION: Phoenix, Arizona
ASSEMBLY/TEST LOCATION: Seoul, Korea
500 Milliwatt
Hermetically Sealed
Glass Silicon Zener Diodes
Complete Voltage Range - 1.8 to 200 Volts
DO-204AH Package - Smaller than Conventional DO-204AA Package
Double Slug Type Construction
Metallurgically Bonded Construction
Mechanical Characteristics:
CASE: Double slug type, hermetically sealed glass
MAXIMUM LEAD TEMPERATURE FOR SOLDERING PURPOSES: 230°C, 1/16", from case for 10 seconds
FINISH: All external surfaces are corrosion resistant with readily solderable leads
POLARITY: Cathode indicated by color band. When operated in zener mode, cathode will be positive with respect to anode
MOUNTING POSITION: Any
WAFER FAB LOCATION: Phoenix, Arizona
ASSEMBLY/TEST LOCATION: Seoul, Korea
Specifications
Attribute | Value |
|---|---|
| Nominal Zener Voltage | 5.6V |
| Diode Configuration | Single |
| Number of Elements per Chip | 1 |
| Mounting Type | Through Hole |
| Maximum Power Dissipation | 500 mW |
| Package Type | DO-35 |
| Zener Type | General Purpose |
| Zener Voltage Tolerance | 5% |
| Pin Count | 2 |
| Test Current | 20mA |
| Maximum Zener Impedance | 11 Ω @ 20 mA, 1600 Ω @ 0.25 mA |
| Maximum Reverse Leakage Current | 5µA |
| Dimensions | 1.91 (Dia.) x 4.56mm |
| Maximum Operating Temperature | +200 °C |
| Forward Current | 200mA |
| Typical Voltage Temperature Coefficient | 0.03%/°C |
| Minimum Operating Temperature | -65 °C |
| Forward Voltage | 1.2V |
