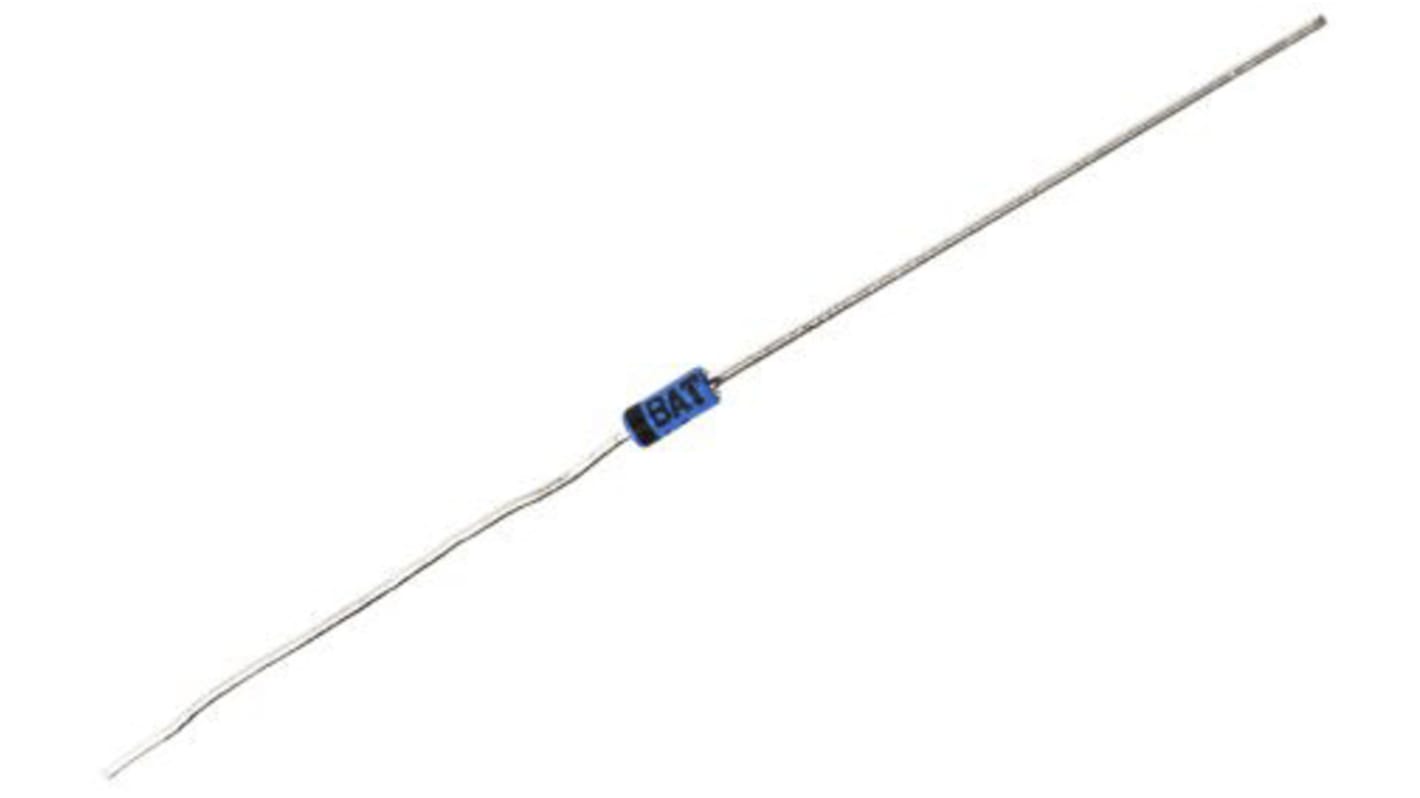

2.7V Zener Diode 5% 500 mW Through Hole 2-Pin DO-35

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

General Data Applicable to all series in this group.
500 Milliwatt
Hermetically Sealed
Glass Silicon Zener Diodes
Complete Voltage Range - 1.8 to 200 Volts
DO-204AH Package - Smaller than Conventional DO-204AA Package
Double Slug Type Construction
Metallurgically Bonded Construction
Mechanical Characteristics:
CASE: Double slug type, hermetically sealed glass
MAXIMUM LEAD TEMPERATURE FOR SOLDERING PURPOSES: 230°C, 1/16", from case for 10 seconds
FINISH: All external surfaces are corrosion resistant with readily solderable leads
POLARITY: Cathode indicated by color band. When operated in zener mode, cathode will be positive with respect to anode
MOUNTING POSITION: Any
WAFER FAB LOCATION: Phoenix, Arizona
ASSEMBLY/TEST LOCATION: Seoul, Korea

Specifications
Attribute Value
Diode Configuration Single
Nominal Zener Voltage 2.7V
Number of Elements per Chip 1
Mounting Type Through Hole
Maximum Power Dissipation 500 mW
Package Type DO-35
Zener Type General Purpose
Zener Voltage Tolerance 5%
Pin Count 2
Test Current 20mA
Maximum Zener Impedance 30 Ω @ 20 mA, 1300 Ω @ 0.25 mA
Maximum Reverse Leakage Current 75µA
Diameter 1.91mm
Dimensions 1.91 Dia. x 4.56mm
Minimum Operating Temperature -65 °C
Typical Voltage Temperature Coefficient -0.08%/°C
Power Dissipation 500mW
Maximum Operating Temperature +200 °C
Height 4.56mm
Forward Voltage 1.2V
Forward Current 200mA
