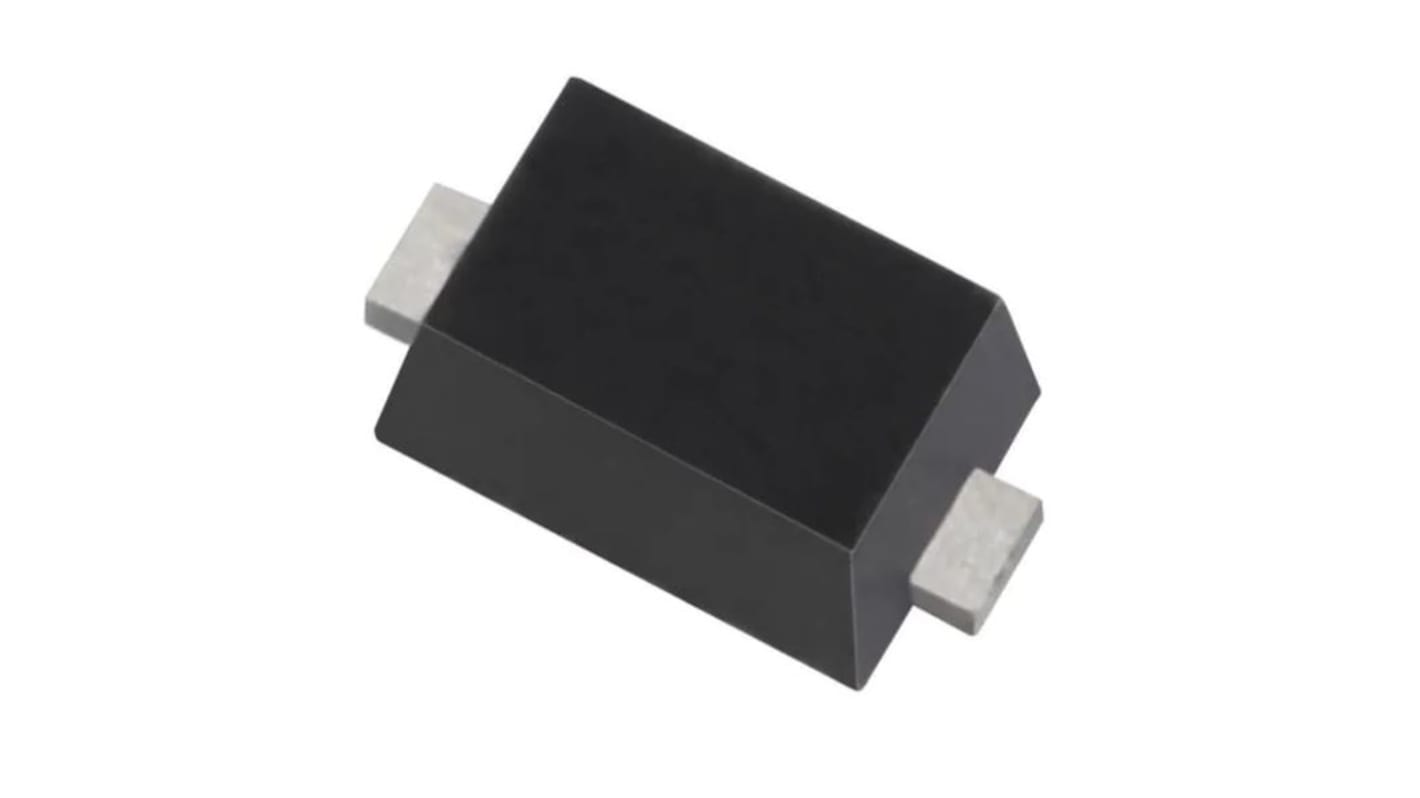

Diodes Inc, 11V Zener Diode ±5% 200mW SMT 2-Pin SOD-923
- RS Stock No.:
- 182-6947
- Mfr. Part No.:
- DZ9F11S92-7
- Brand:
- DiodesZetex
Discontinued product
- RS Stock No.:
- 182-6947
- Mfr. Part No.:
- DZ9F11S92-7
- Brand:
- DiodesZetex
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Diodes Incorporated offers Tight Tolerance Zener Diodes. An ion-implanted epitaxial wafer process allows tolerances as tight as ±2.0% in voltages ranging from 2.4V to 47V.
Ultra-Small Surface Mount Package
Flat-Lead, Thermally-Efficient Package Design
Exposed, Easily Visible Terminals, No X-ray Inspection of Solder Joints Required (As for DFN Packages)
Application
Voltage Regulation
Flat-Lead, Thermally-Efficient Package Design
Exposed, Easily Visible Terminals, No X-ray Inspection of Solder Joints Required (As for DFN Packages)
Application
Voltage Regulation
Specifications
Attribute | Value |
|---|---|
| Nominal Zener Voltage | 11V |
| Mounting Type | Surface Mount |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation | 200mW |
| Package Type | SOD-923 |
| Zener Type | Ultra Small |
| Zener Voltage Tolerance | ±5% |
| Pin Count | 2 |
| Test Current | 5mA |
| Maximum Zener Impedance | 60Ω |
| Maximum Reverse Leakage Current | 100nA |
| Dimensions | 0.8 x 0.6 x 0.37mm |
| Forward Current | 10mA |
| Forward Voltage | 0.9V |
| Minimum Operating Temperature | -65 °C |
| Typical Voltage Temperature Coefficient | 9mV/°C |
| Maximum Operating Temperature | +150 °C |
