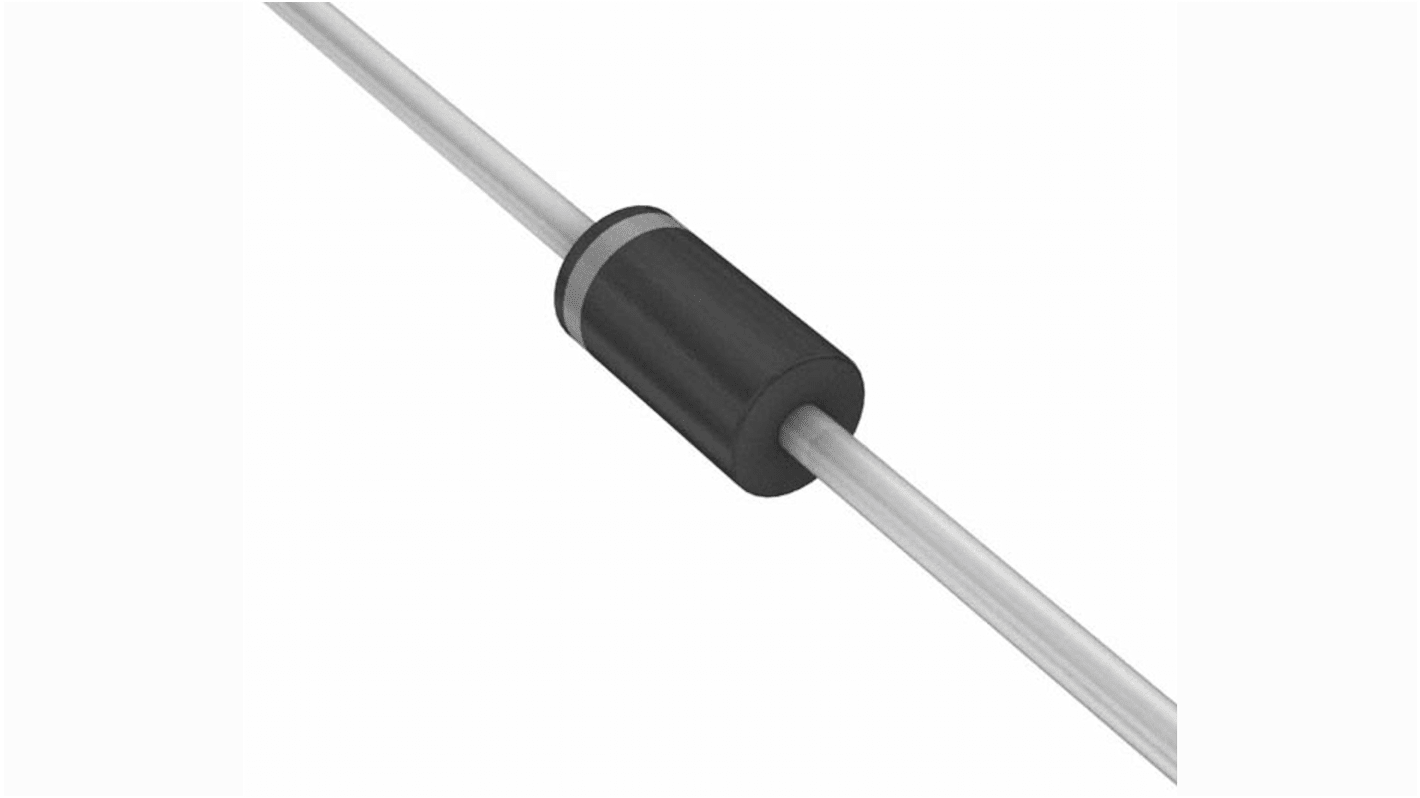

Vishay, 11V Zener Diode ± 5% 1.3 W Through Hole 2-Pin DO-41 (DO-204AL)
- RS Stock No.:
- 180-8184
- Mfr. Part No.:
- 1N4741A-TR
- Brand:
- Vishay
Discontinued product
- RS Stock No.:
- 180-8184
- Mfr. Part No.:
- 1N4741A-TR
- Brand:
- Vishay
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Vishay Zener Diode
The Vishay DO-41 Zener diode has a voltage rating of 11VDC and power rating of 1.3W at 5% voltage tolerance. The Zener current of the diode is 5uA and reverse current rating is 5uA.
Features and Benefits
• Halogen free
• Lead (Pb) free component
• Operating junction temperature ranges between -65°C and 175°C
• Silicon planar Zener diode
• Lead (Pb) free component
• Operating junction temperature ranges between -65°C and 175°C
• Silicon planar Zener diode
Applications
• Clipping circuits
• High-power voltage stabilization
• Voltage regulators
• High-power voltage stabilization
• Voltage regulators
Certifications
• AEC-Q101 qualified
• e2
• J-STD-020
• UL94 listed
• e2
• J-STD-020
• UL94 listed
Specifications
Attribute | Value |
|---|---|
| Diode Configuration | Single |
| Nominal Zener Voltage | 11V |
| Mounting Type | Through Hole |
| Maximum Power Dissipation | 1.3 W |
| Package Type | DO-41 (DO-204AL) |
| Zener Type | Silicon Planar |
| Zener Voltage Tolerance | ± 5% |
| Pin Count | 2 |
